SXM10L-ARSDKW (1998)
Toyota Picnic
Production
Apr 1998
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9804- )3SFE

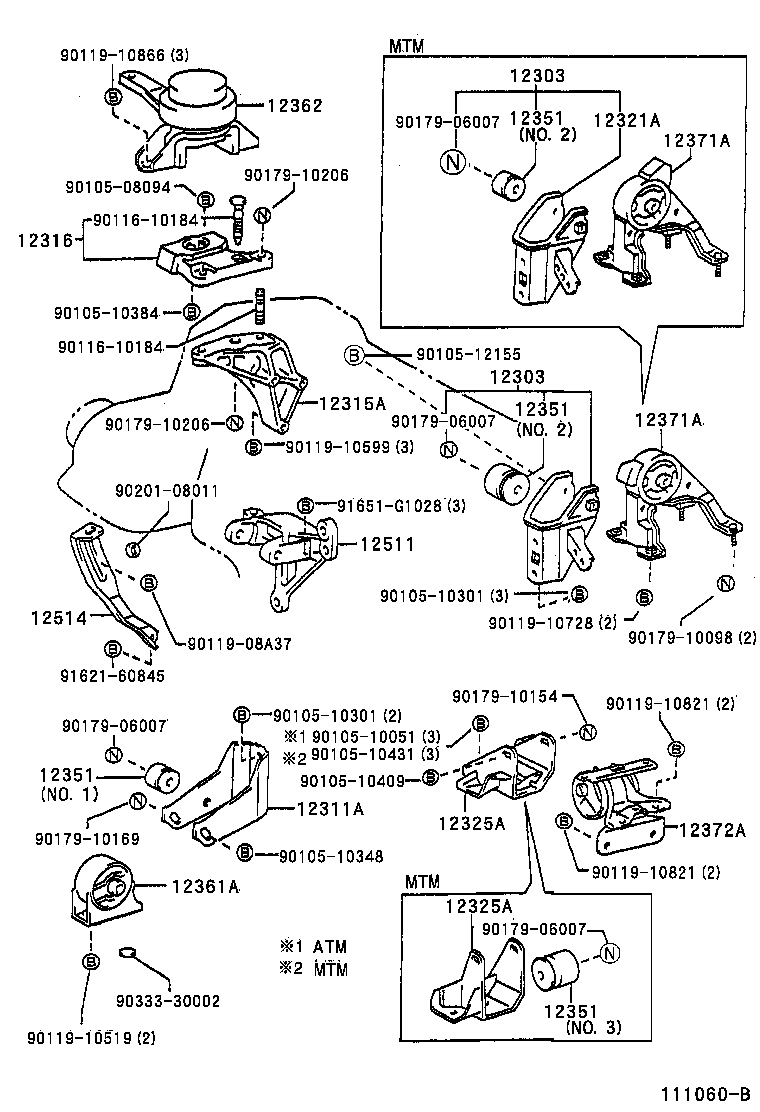

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-74130 |
3SFE..SXM10..ATM |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-74130 |
3SFE..SXM10..ATM |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74170 |
3SFE..SXM10 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74140 |
3SFE..SXM10 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74140 |
3SFE..SXM10 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74270 |
3SFE..SXM10..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74310 |
3SFE..SXM10..ATM |
1 | ||
| 12325-74440 |
3SFE..SXM10..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74310 |
3SFE..SXM10..ATM |
1 | ||
| 12325-74440 |
3SFE..SXM10..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE..SXM10 NO.1 |
1 | ||
| 12351-74100 |
3SFE..SXM10 NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE..SXM10 NO.1 |
1 | ||
| 12351-74100 |
3SFE..SXM10 NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE..SXM10 NO.1 |
1 | ||
| 12351-74100 |
3SFE..SXM10 NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE..SXM10 NO.1 |
1 | ||
| 12351-74100 |
3SFE..SXM10 NO.2 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-16290 |
3SFE..SXM10..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74480 |
3SFE..SXM10 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74500 |
3SFE..SXM10..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74500 |
3SFE..SXM10..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-16351 |
3SFE..SXM10 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE..SXM10 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74050 |
3SFE..SXM10 |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10051 | ||||
| 90105-10301 | ||||
| 90105-10348 | ||||
| 90105-10384 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-12155 | ||||
| 90116-10184 | ||||
| 90119-08A37 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10728 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 90201-08011 | ||||
| 90333-30002 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
