CXM10R-APMDTW (1997)

Toyota Picnic

Production Sep 1997 - Jul 2000
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

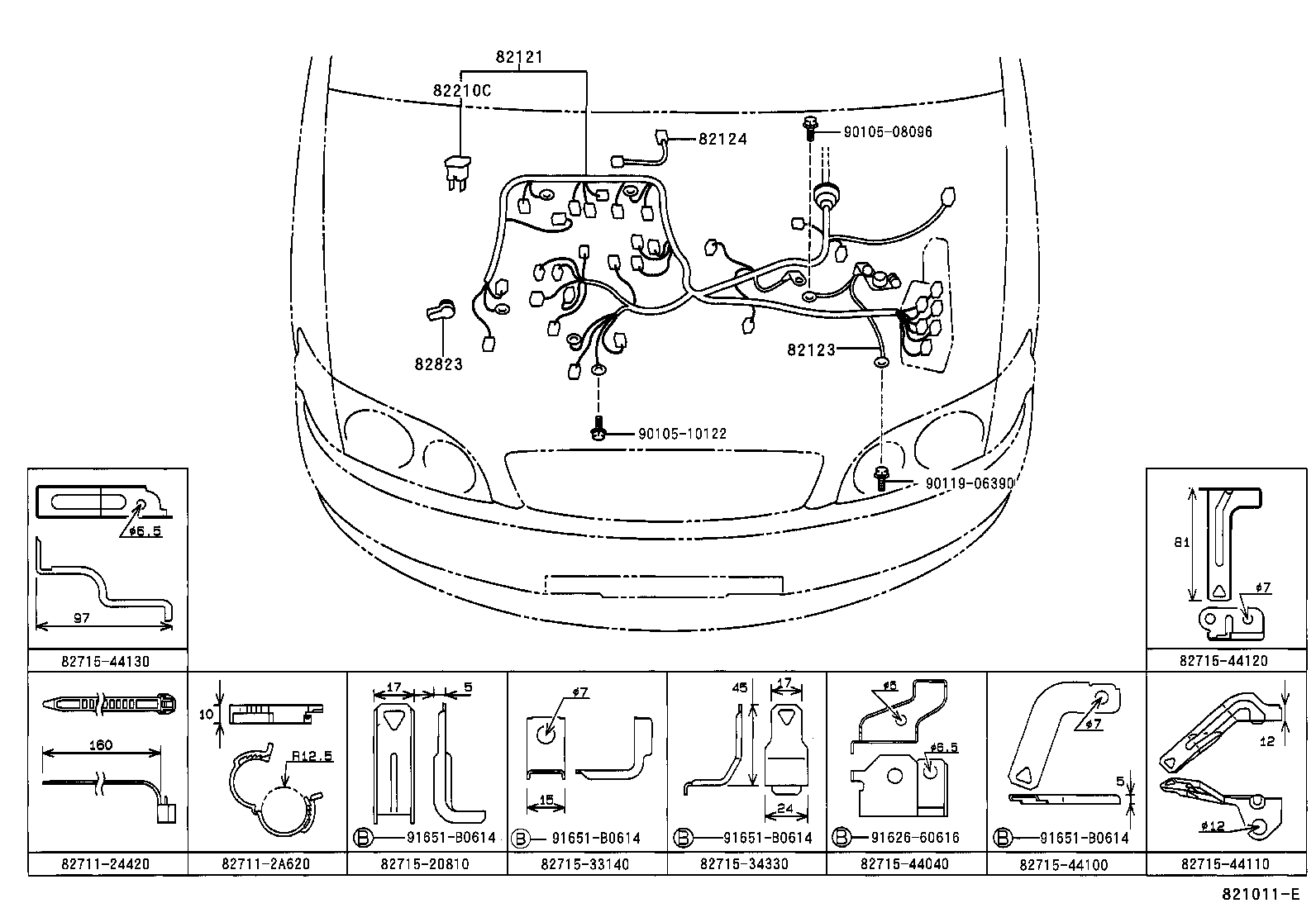

ILLUST NO. 2 OF 9(9709- )CXM10

Click highlighted areas on diagram

ENGINE WIRE

diagram 82121 82123 82124 82210C 8271124420 827112A620 8271520810 8271533140 8271534330 8271544040 8271544100 8271544110 8271544120 8271544130 82823 9010508096 9010510122 9011906390 9162660616 91651B0614 91651B0614 91651B0614 91651B0614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-44080

CXM10..RHD

 1
82121-44230

CXM10..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-44030

CXM10

 1
82124 - WIRE, ENGINE, NO.4
82124-21010

CXM10

 1
82210C - FUSIBLE LINK
90982-08254

CXM10,SXM10

120A,TERM.:MALE,WHT

 1
90982-08285

CXM10,SXM10

50A,TERM.:FEMALE,RED

 1
90982-08202

CXM10,SXM10

60A,TERM.:MALE,YEL

 1
90982-08284

CXM10,SXM10

40A,TERM.:FEMALE,GRN

 1
90982-08283

CXM10,SXM10

30A,TERM.:FEMALE,PNK

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

CXM10,SXM10

 1
Common parts
82711-24420
82711-2A620
82715-20810
82715-33140
82715-34330
82715-44040
82715-44100
82715-44110
82715-44120
82715-44130
90105-08096
90105-10122
90119-06390
91626-60616
91651-B0614
