CXM10R-APMDTW (1997)

Toyota Picnic

Production Sep 1997 - Jul 2000
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

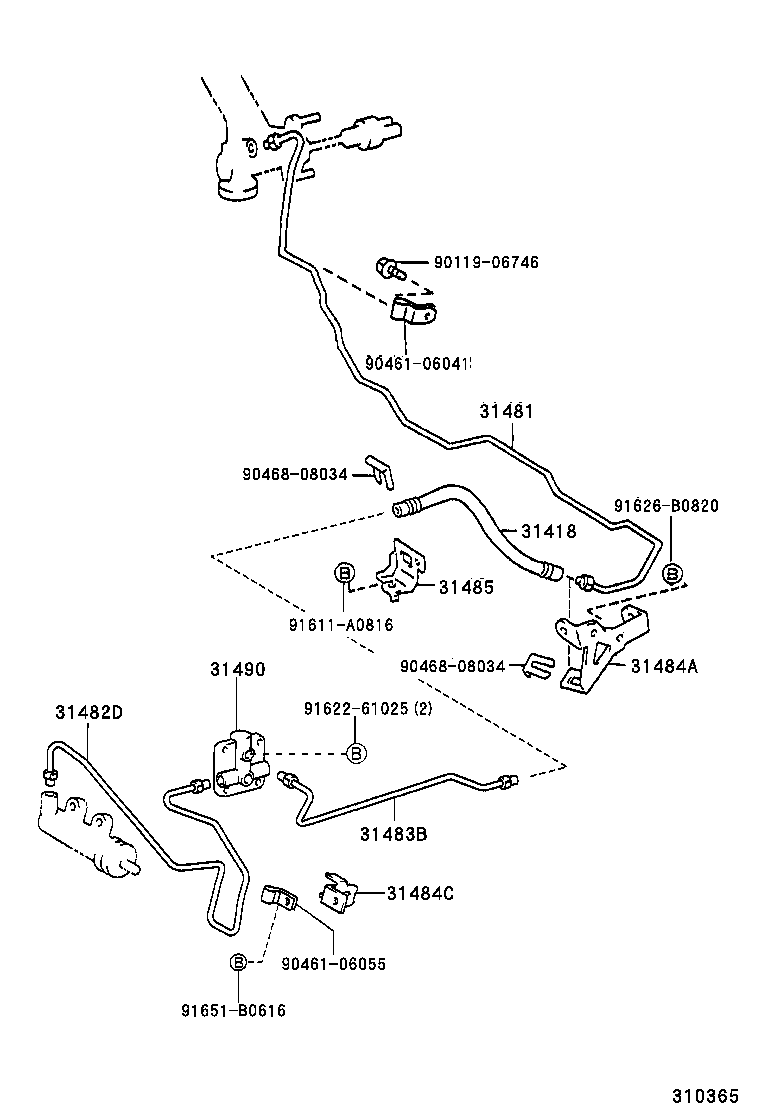

ILLUST NO. 2 OF 2(9709- )CXM10..RHD

Click highlighted areas on diagram

diagram 31418 31481 31482D 31483B 31484A 31484C 31485 31490 9011906746 9046106041 9046106055 9046808034 9046808034 91611A0816 9162261025 91626B0820 91651B0616
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-44010

CXM10,SXM10..RHD..MTM

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-44010

CXM10

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20540

CXM10,SXM10..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CXM10,SXM10..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20511

CXM10,SXM10..MTM

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-12020

CXM10

 1
Common parts
90119-06746
90461-06041
90461-06055
90468-08034
91611-A0816
91622-61025
91626-B0820
91651-B0616
