ACM20R-ARSDKW (2001)
Toyota Picnic/Avensis Verso

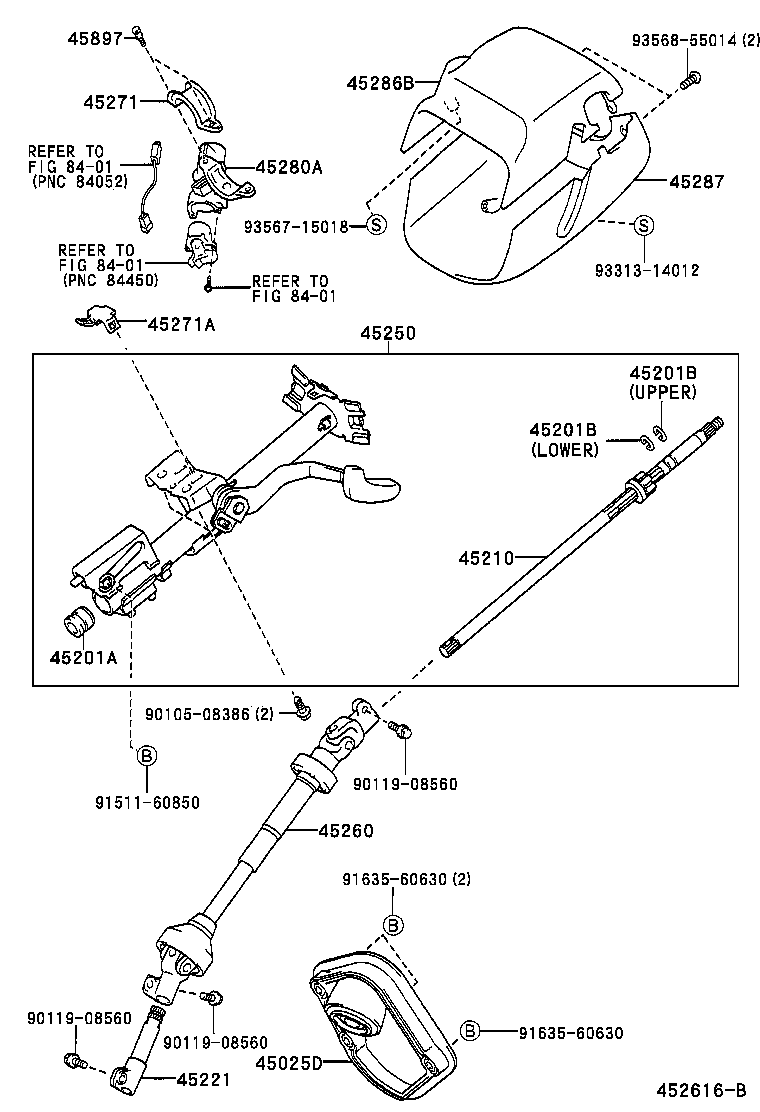

(0105-0310)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-44090 |
ACM2#,CLM20..RHD |
1 | ||
| 45025-44090 |
ACM20,CLM20..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45274-28010 |
ACM20,CLM20 |
1 | ||
| 45274-28010 |
ACM2#,CLM20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ACM2#,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM20,CLM20 T=1.20,LOWER |
1 | ||
| 90520-17269 |
ACM20,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM2#,CLM20 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ACM2#,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM20,CLM20 T=1.20,LOWER |
1 | ||
| 90520-17269 |
ACM20,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM2#,CLM20 T=1.20,LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-27110 |
ACM2#,CLM20 |
1 | ||
| 45210-27110 |
ACM20,CLM20 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-44010 |
ACM20,CLM20 |
1 | ||
| 45221-44010 |
ACM2#,CLM20 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-28481 |
ACM20..RHD..ATM |
1 | ||
| 45250-28481 |
ACM2#..RHD..ATM |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-44090 |
ACM20,CLM20..RHD |
1 | ||
| 45260-44090 |
ACM2#,CLM20..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
ACM20,CLM20 |
1 | ||
| 45271-16020 |
ACM2#,CLM20 |
1 | ||
| 45271A - CLAMP, STEERING COLUMN, UPPER NO.2 | ||||
| 45271-52010 |
ACM20,CLM20 |
1 | ||
| 45271-52010 |
ACM2#,CLM20 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28280 |
ACM20..ATM..EUR |
1 | ||
| 45280-28280 |
ACM20..ATM..EUR |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28350C0 |
CLM20;ACM20..RHD..EUR;ACM20..LHD..MTM BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28410C0 |
ACM20..RHD..ATM..EUR BLACK,TRIM1# |
1 | ||
| 45287-28411C0 |
ACM20..RHD..ATM..EUR BLACK,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ACM20,CLM20 |
2 | ||
| 45897-12020 |
ACM2#,CLM20 |
2 | ||
| Common parts | ||||
| 90105-08386 | ||||
| 90119-08560 | ||||
| 91511-60850 | ||||
| 91635-60630 | ||||
| 93313-14012 | ||||
| 93567-15018 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

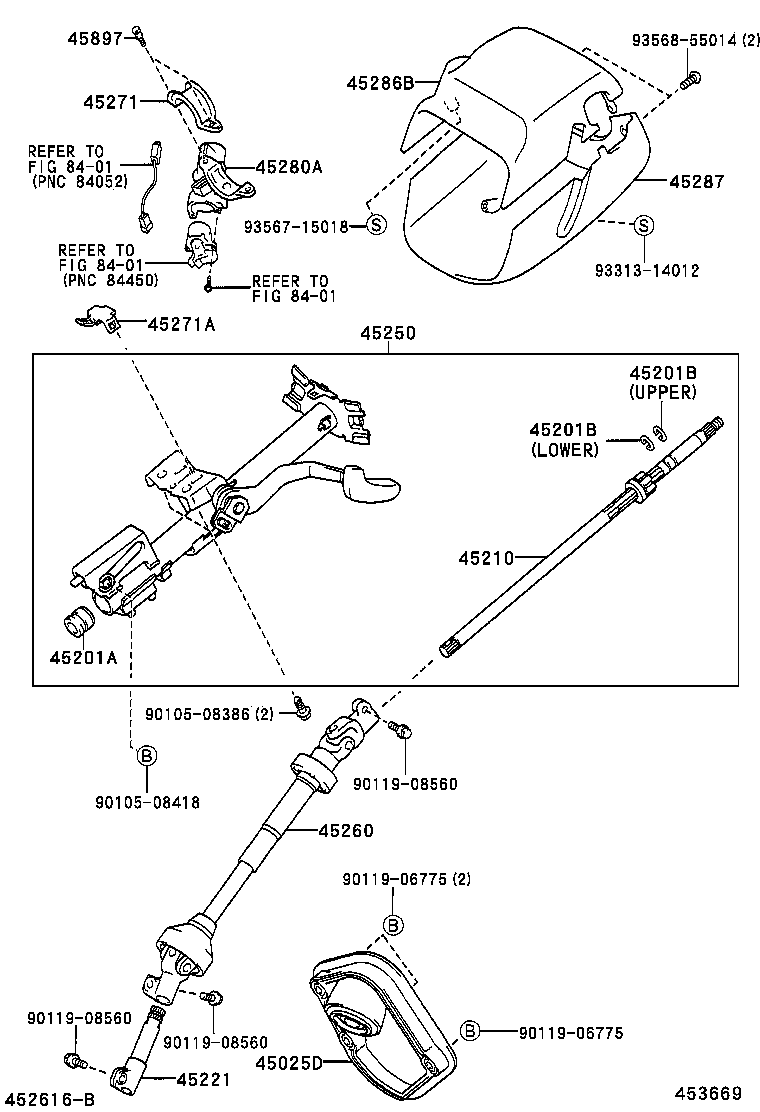

(0310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-44090 |
ACM2#,CLM20..RHD |
1 | ||
| 45025-44090 |
ACM20,CLM20..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45274-28010 |
ACM20,CLM20 |
1 | ||
| 45274-28010 |
ACM2#,CLM20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ACM2#,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM20,CLM20 T=1.20,LOWER |
1 | ||
| 90520-17269 |
ACM20,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM2#,CLM20 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ACM2#,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM20,CLM20 T=1.20,LOWER |
1 | ||
| 90520-17269 |
ACM20,CLM20 T=1.20,UPPER |
1 | ||
| 90520-17042 |
ACM2#,CLM20 T=1.20,LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-27110 |
ACM2#,CLM20 |
1 | ||
| 45210-27110 |
ACM20,CLM20 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-44010 |
ACM20,CLM20 |
1 | ||
| 45221-44010 |
ACM2#,CLM20 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-28481 |
ACM20..RHD..ATM |
1 | ||
| 45250-28481 |
ACM2#..RHD..ATM |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-44090 |
ACM20,CLM20..RHD |
1 | ||
| 45260-44090 |
ACM2#,CLM20..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
ACM20,CLM20 |
1 | ||
| 45271-16020 |
ACM2#,CLM20 |
1 | ||
| 45271A - CLAMP, STEERING COLUMN, UPPER NO.2 | ||||
| 45271-52010 |
ACM20,CLM20 |
1 | ||
| 45271-52010 |
ACM2#,CLM20 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28280 |
ACM20..ATM..EUR |
1 | ||
| 45280-28280 |
ACM20..ATM..EUR |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28350C0 |
CLM20;ACM20..RHD..EUR;ACM20..LHD..MTM BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28410C0 |
ACM20..RHD..ATM..EUR BLACK,TRIM1# |
1 | ||
| 45287-28411C0 |
ACM20..RHD..ATM..EUR BLACK,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ACM20,CLM20 |
2 | ||
| 45897-12020 |
ACM2#,CLM20 |
2 | ||
| Common parts | ||||
| 90105-08386 | ||||
| 90105-08418 | ||||
| 90119-06775 | ||||
| 90119-08560 | ||||
| 93313-14012 | ||||
| 93567-15018 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
