ACM20R-ARMEKQ (2001)
Toyota Picnic/Avensis Verso
Production
Oct 2001
-
Oct 2003
Engine
1AZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

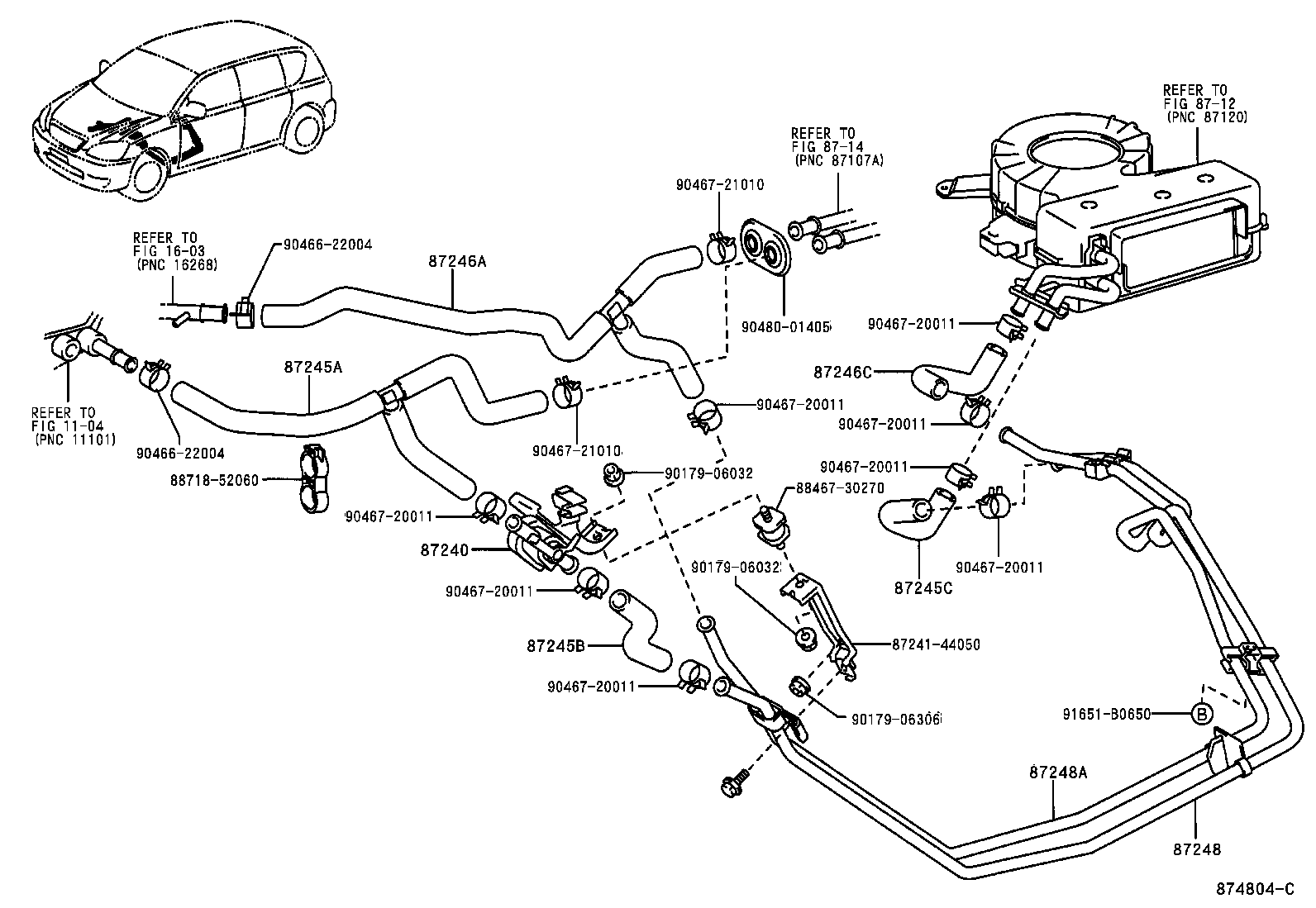

(0105-0310)ACM20..RHD..MTM
Click highlighted areas on diagram
W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-44470 |
ACM20..ARL,GEN |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-44480 |
ACM20..MTM..ARL |
1 | ||
| Common parts | ||||
| 87241-44050 | ||||
| 88467-30270 | ||||
| 88718-52060 | ||||
| 90179-06032 | ||||
| 90179-06306 | ||||
| 90466-22004 | ||||
| 90467-20011 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 91651-B0650 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||

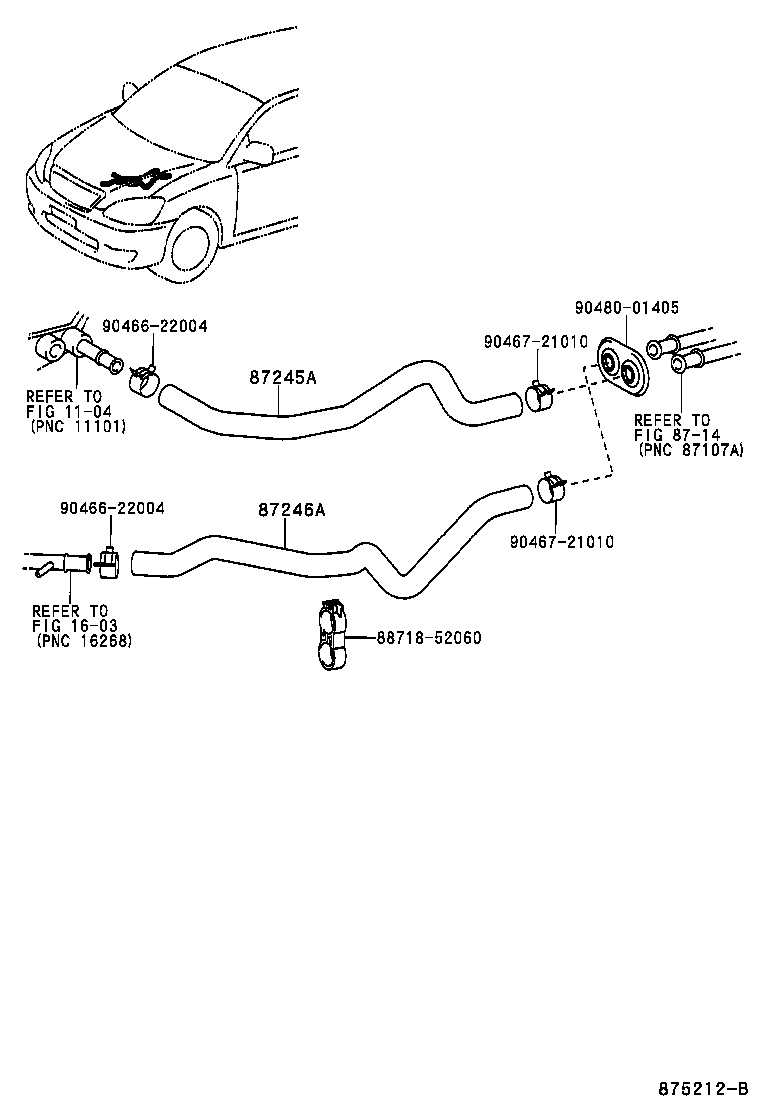

(0105-0310)MTM..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-44470 |
ACM20..ARL,GEN |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-44480 |
ACM20..MTM..ARL |
1 | ||
| Common parts | ||||
| 88718-52060 | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
