EL54R-DKMSKW (1996)

Toyota Paseo

Production Oct 1996 - Mar 1999
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )RHD..CVT

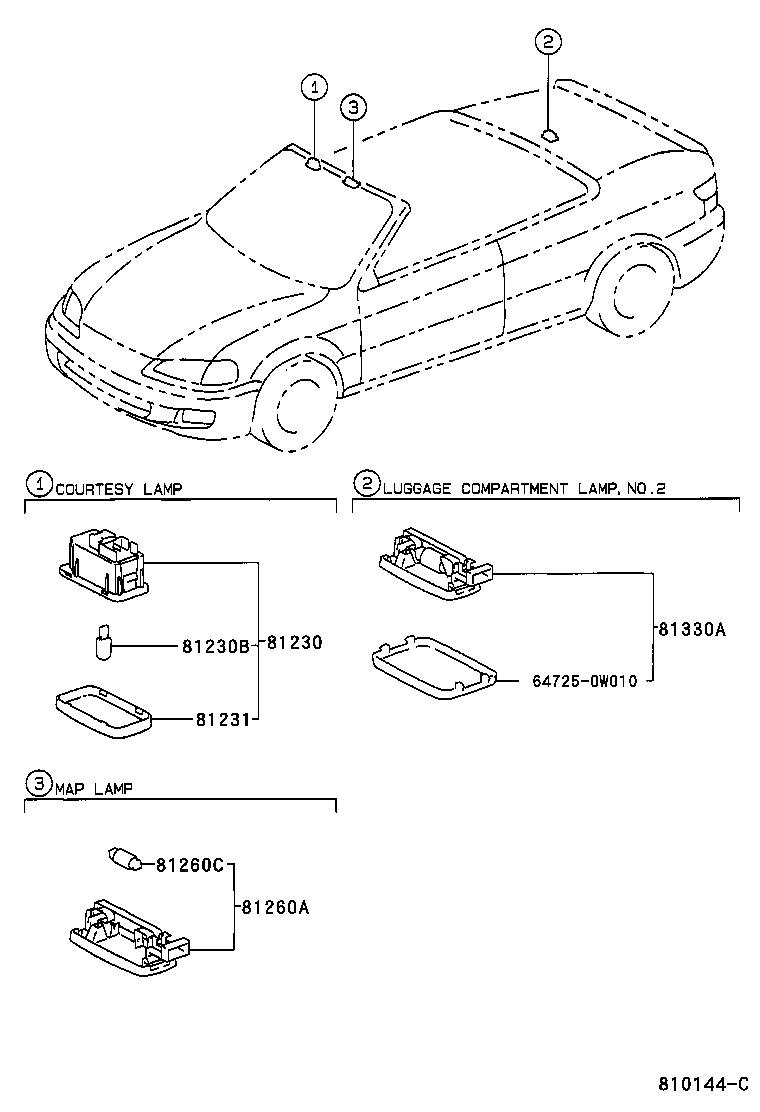

Click highlighted areas on diagram

diagram 647250W010 81230 81230B 81231 81260A 81260C 81330A
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-50010

EL54..CVT

 1
81230B - BULB(FOR COURTESY LAMP)
90981-11020

EL54..CVT

12V 3.8W

 1
81231 - LENS, COURTESY LAMP
81231-50010

EL54..CVT

 1
81260A - LAMP ASSY, MAP
81250-16040

EL54..CVT

 1
81260C - BULB(FOR MAP LAMP)
90981-11016

EL54..CVT

12V 5W

 1
81330A - LAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81330-0W010

EL54..CVT

 1
Common parts
64725-0W010
