EL54R-DKMSKW (1996)

Toyota Paseo

Production Oct 1996 - Mar 1999
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )EUR

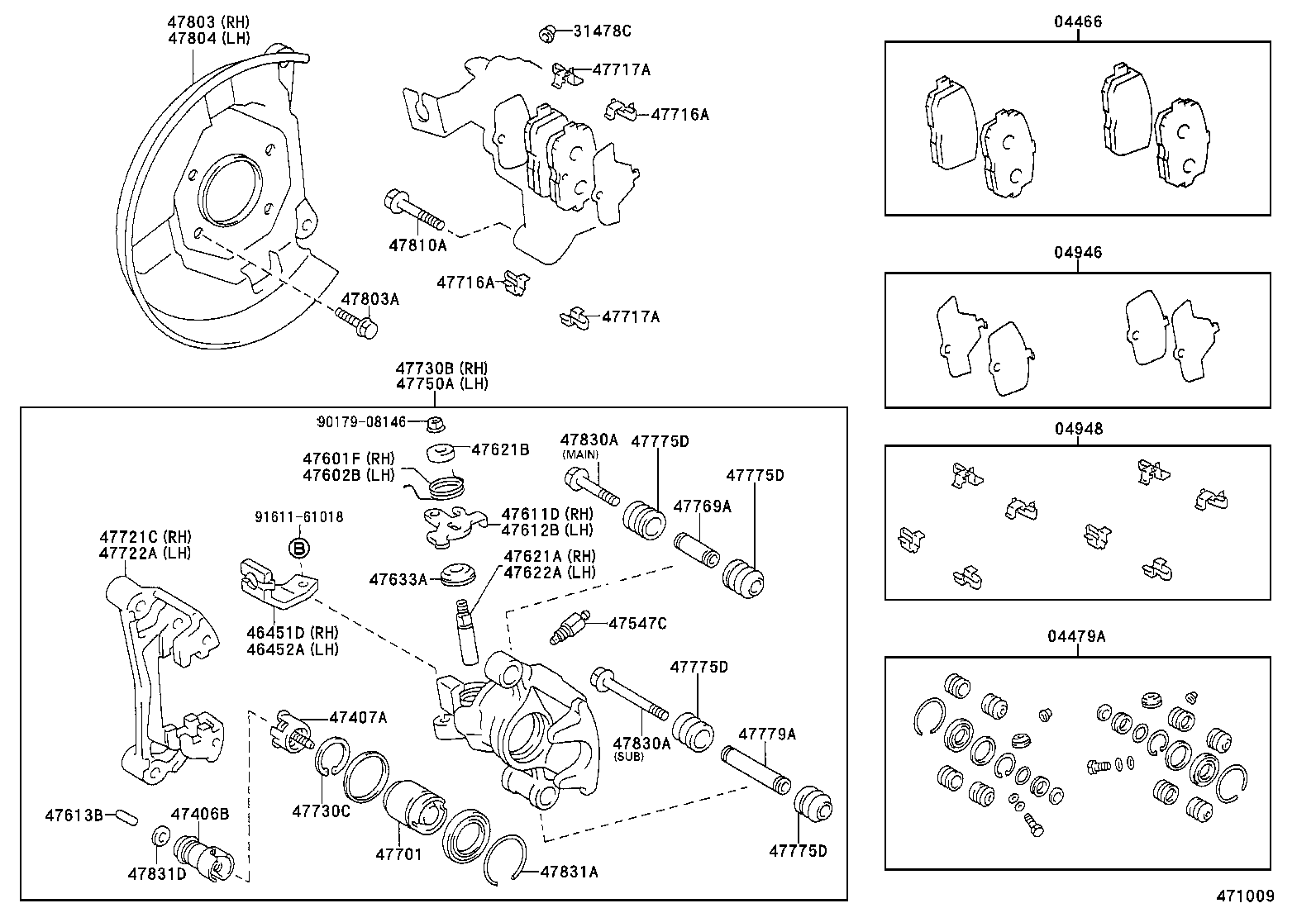

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 46451D 46452A 47406B 47407A 47547C 47601F 47602B 47611D 47612B 47613B 47621A 47621B 47622A 47633A 47701 47716A 47716A 47717A 47717A 47721C 47722A 47730B 47730C 47750A 47769A 47775D 47775D 47775D 47775D 47779A 47803 47803A 47804 47810A 47830A 47830A 47831A 47831D 9017908146 9161161018
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-18010

EL54..EUR

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-16040

EL54..EUR

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-16010

EL54..EUR

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-16010

EL54..EUR

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

EL54..EUR

 2
46451D - BRACKET, PARKING BRAKE CABLE SUPPORT, RH
46451-10011

EL54..EUR

 1
46452A - BRACKET, PARKING BRAKE CABLE SUPPORT, LH
46452-10011

EL54..EUR

 1
47406B - CLUTCH SUB-ASSY, REAR DISC BRAKE
47406-16010

EL54..EUR

 2
47407A - ADJUSTER ASSY, REAR DISC BRAKE PAD
47407-16010

EL54..EUR

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-10060

EL54..EUR

 2
47601F - SPRING, TORSION(FOR PARKING BRAKE CRANK RH)
90508-29018

EL54..EUR

 1
47602B - SPRING, TORSION(FOR PARKING BRAKE CRANK LH)
90508-29019

EL54..EUR

 1
47611D - LEVER, PARKING BRAKE DISC, RH
47611-10040

EL54..EUR

 1
47612B - LEVER, PARKING BRAKE DISC, LH
47612-10040

EL54..EUR

 1
47613B - STRUT, PARKING BRAKE(FOR REAR BRAKE)
47613-16010

EL54..EUR

 2
47621A - SHAFT, PARKING LEVER, RH
47621-16010

EL54..EUR

 1
47621B - SPACER(FOR PARKING LEVER SHAFT)
90560-08056

EL54..EUR

 2
47622A - SHAFT, PARKING LEVER, LH
47622-16010

EL54..EUR

 1
47633A - BOOT, PARKING BRAKE CRANK
47633-16010

EL54..EUR

 2
47701 - PISTON SUB-ASSY, REAR DISC BRAKE
47701-16010

EL54..EUR

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-16010

EL54..EUR

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-16010

EL54..EUR

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-16010

EL54..EUR

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-16010

EL54..EUR

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-10020

EL54..EUR

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-10020

EL54..EUR

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-10120

EL54..EUR

 1
47730C - RING, HOLE SNAP(FOR REAR DISC BRAKE CYLINDER)
90521-32003

EL54..EUR

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-10120

EL54..EUR

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-16020

EL54..EUR

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-16020

EL54..EUR

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-16020

EL54..EUR

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-16020

EL54..EUR

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-16020

EL54..EUR

 8
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-32010

EL54..EUR

 2
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-10030

EL54..EUR

 1
47803A - BOLT(FOR REAR DISC BRAKE DUST COVER)
90119-10447

EL54..EUR

 8
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-10030

EL54..EUR

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10260

EL54..EUR

 4
47830A - BOLT(FOR REAR DISC BRAKE)
90119-09011

EL54..EUR

SUB PIN SIDE

 2
90119-09012

EL54..EUR

MAIN PIN SIDE

 2
47830A - BOLT(FOR REAR DISC BRAKE)
90119-09011

EL54..EUR

SUB PIN SIDE

 2
90119-09012

EL54..EUR

MAIN PIN SIDE

 2
47831A - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-43002

EL54..EUR

 2
47831D - RING(FOR REAR DISC BRAKE)
90562-04014

EL54..EUR

 2
Common parts
90179-08146
91611-61018
