EL54R-DCPSKQ (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-9712)

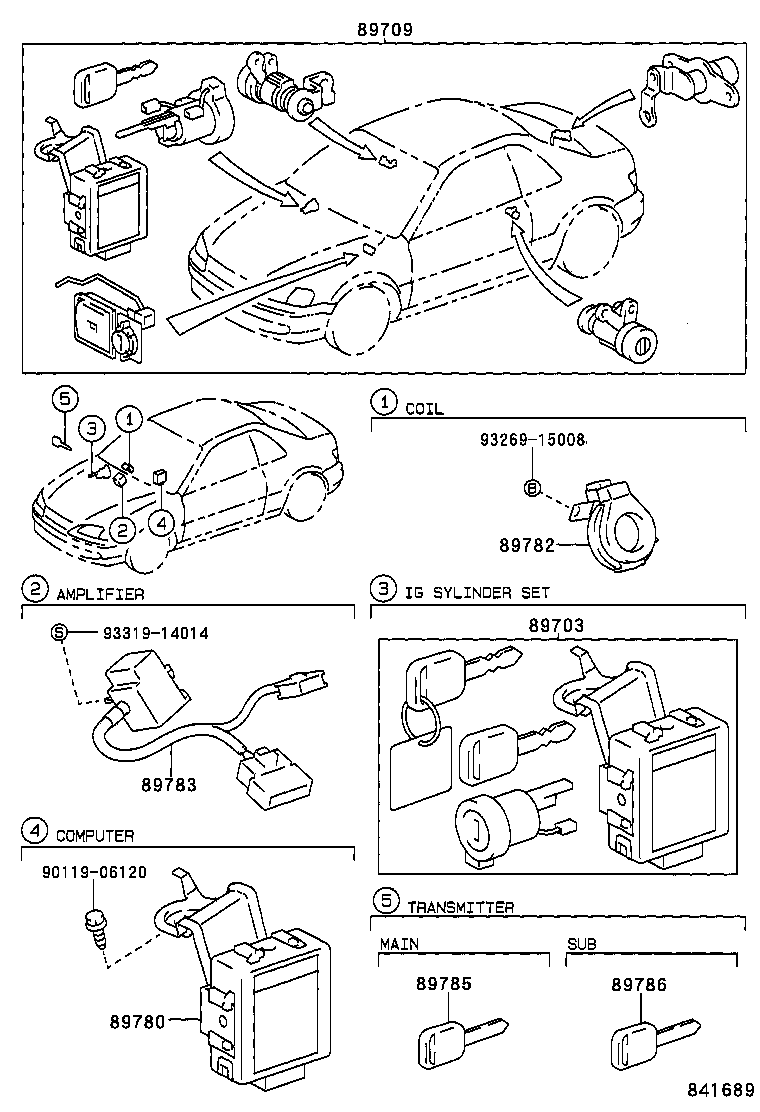

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER | ||||
| 89703-16040 |
EL54..RHD..CP |
1 | ||
| 89703-16020 |
EL54..RHD |
1 | ||
| 89703-16040 |
EL54..RHD |
1 | ||
| 89709 - COMPUTER SET, TRANSPONDER KEY | ||||
| 89709-16020 |
EL54..RHD..CP |
1 | ||
| 89709-16060 |
EL54..RHD..CP |
1 | ||
| 89709 - COMPUTER SET, TRANSPONDER KEY | ||||
| 89709-16020 |
EL54..RHD..CP |
1 | ||
| 89709-16060 |
EL54..RHD..CP |
1 | ||
| 89780 - COMPUTER ASSY, TRANSPONDER KEY | ||||
| 89780-16040 |
EL54..RHD..CP |
1 | ||
| 89780-16040 |
EL54..RHD |
1 | ||
| 89780-16020 |
EL54..RHD |
1 | ||
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-16010 |
EL54..ARL,EUR |
1 | ||
| 89782-28020 |
EL54..CP |
1 | ||
| 89782-28020 |
EL54 |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-16011 |
EL54..ARL,EUR |
1 | ||
| 89783-28020 |
EL54..CP |
1 | ||
| 89783-28020 |
EL54 |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-16020 |
EL54..ARL,EUR |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-16020 |
EL54..ARL,EUR |
1 | ||
| 89788 - BRACKET, TRANSPONDER KEY | ||||
| 89788-16010 |
EL54..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 93315-14014 | ||||
(9712- )

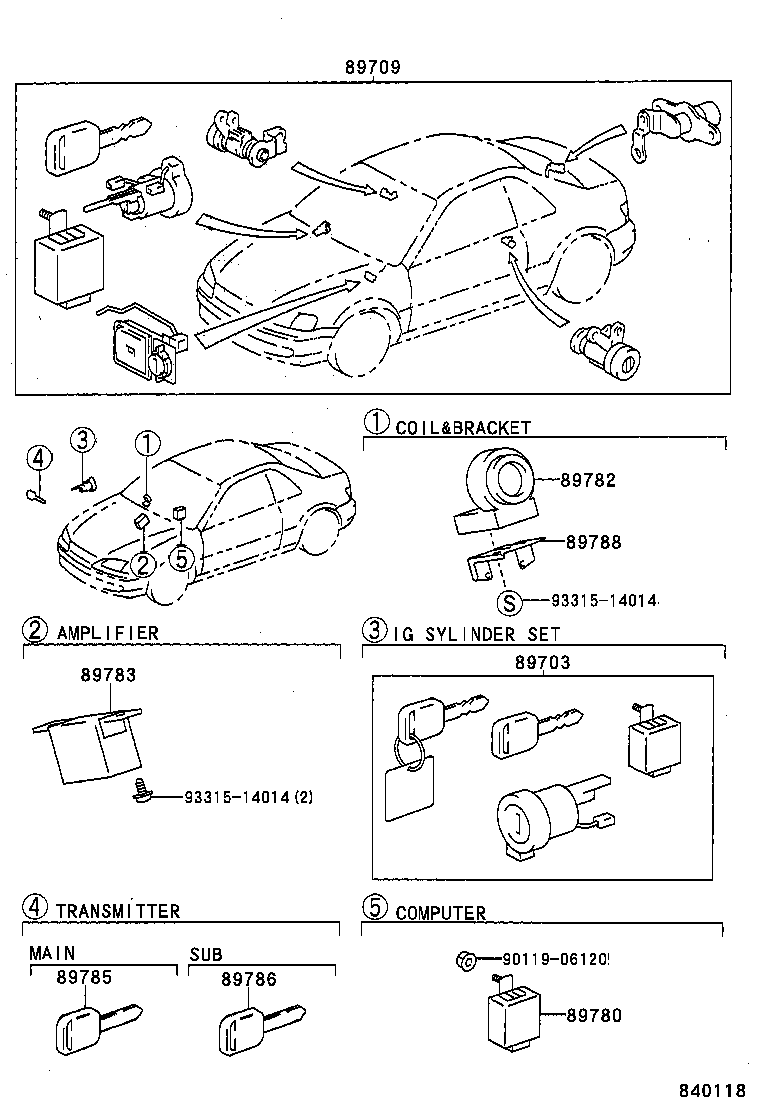

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER | ||||
| 89703-16040 |
EL54..RHD..CP |
1 | ||
| 89703-16020 |
EL54..RHD |
1 | ||
| 89703-16040 |
EL54..RHD |
1 | ||
| 89709 - COMPUTER SET, TRANSPONDER KEY | ||||
| 89709-16020 |
EL54..RHD..CP |
1 | ||
| 89709-16060 |
EL54..RHD..CP |
1 | ||
| 89780 - COMPUTER ASSY, TRANSPONDER KEY | ||||
| 89780-16040 |
EL54..RHD..CP |
1 | ||
| 89780-16040 |
EL54..RHD |
1 | ||
| 89780-16020 |
EL54..RHD |
1 | ||
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-16010 |
EL54..ARL,EUR |
1 | ||
| 89782-28020 |
EL54..CP |
1 | ||
| 89782-28020 |
EL54 |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-16011 |
EL54..ARL,EUR |
1 | ||
| 89783-28020 |
EL54..CP |
1 | ||
| 89783-28020 |
EL54 |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-16020 |
EL54..ARL,EUR |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-16020 |
EL54..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 93269-15008 | ||||
| 93319-14014 | ||||
