EL54R-DCPSKQ (1995)
Toyota Paseo

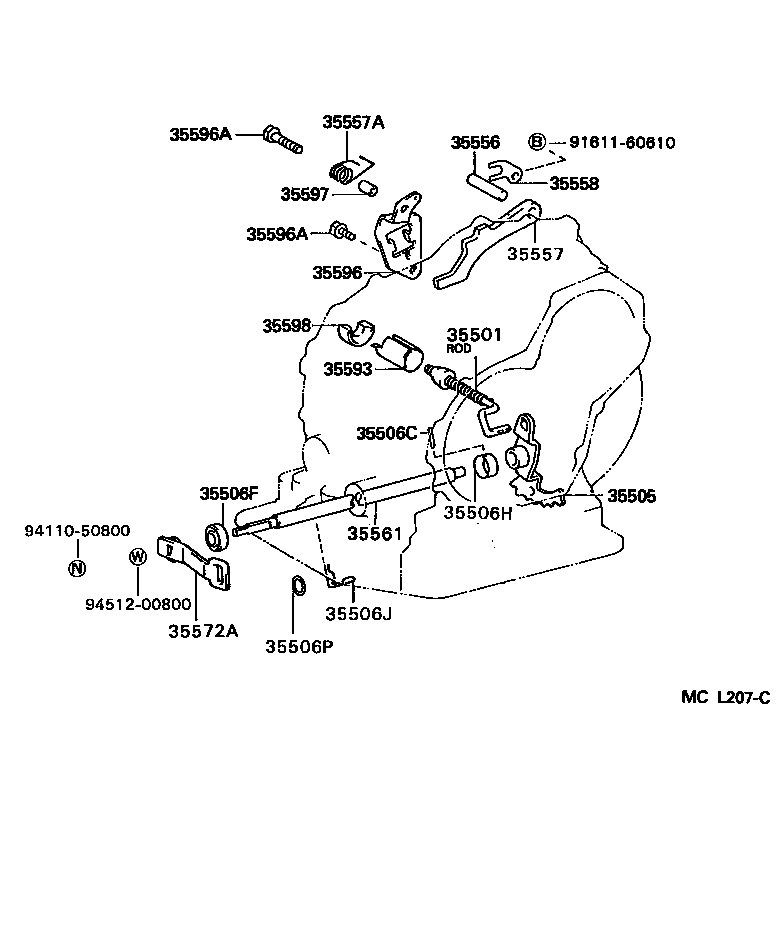

ILLUST NO. 1 OF 2(9508- )ATM
A244E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
EL54..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-12040 |
EL54..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
EL54..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
EL54..ATM |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
EL54..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
EL54..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
EL54..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
EL54..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12020 |
EL54..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
EL54..ATM |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
EL54..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
EL54..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-16040 |
EL54..ATM |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
EL54..ATM |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
EL54..ATM |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
EL54..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
EL54..ATM *8-1.25PX35-30 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
EL54..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
EL54..ATM *8-1.25PX35-30 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
EL54..ATM |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
EL54..ATM |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

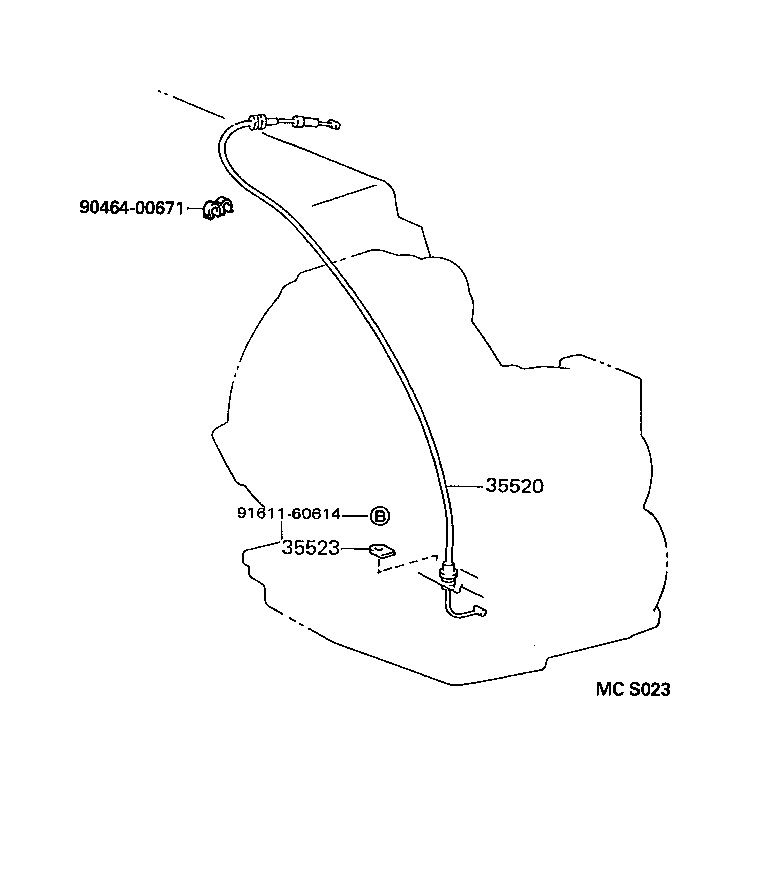

ILLUST NO. 2 OF 2(9508- )ATM
A244E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-16110 |
EL54..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
EL54..ATM |
1 | ||
| Common parts | ||||
| 90464-00671 | ||||
| 91611-60614 | ||||
ILLUST NO. 1 OF 2(9508- )ATM
A244E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
EL54..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-12040 |
EL54..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
EL54..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
EL54..ATM |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
EL54..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
EL54..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
EL54..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
EL54..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12020 |
EL54..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
EL54..ATM |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
EL54..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
EL54..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-16040 |
EL54..ATM |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
EL54..ATM |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
EL54..ATM |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
EL54..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
EL54..ATM *8-1.25PX35-30 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
EL54..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
EL54..ATM *8-1.25PX35-30 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
EL54..ATM |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
EL54..ATM |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(9508- )ATM
A244E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-16110 |
EL54..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
EL54..ATM |
1 | ||
| Common parts | ||||
| 90464-00671 | ||||
| 91611-60614 | ||||
