EL54L-DKMSKA (1996)
Toyota Paseo

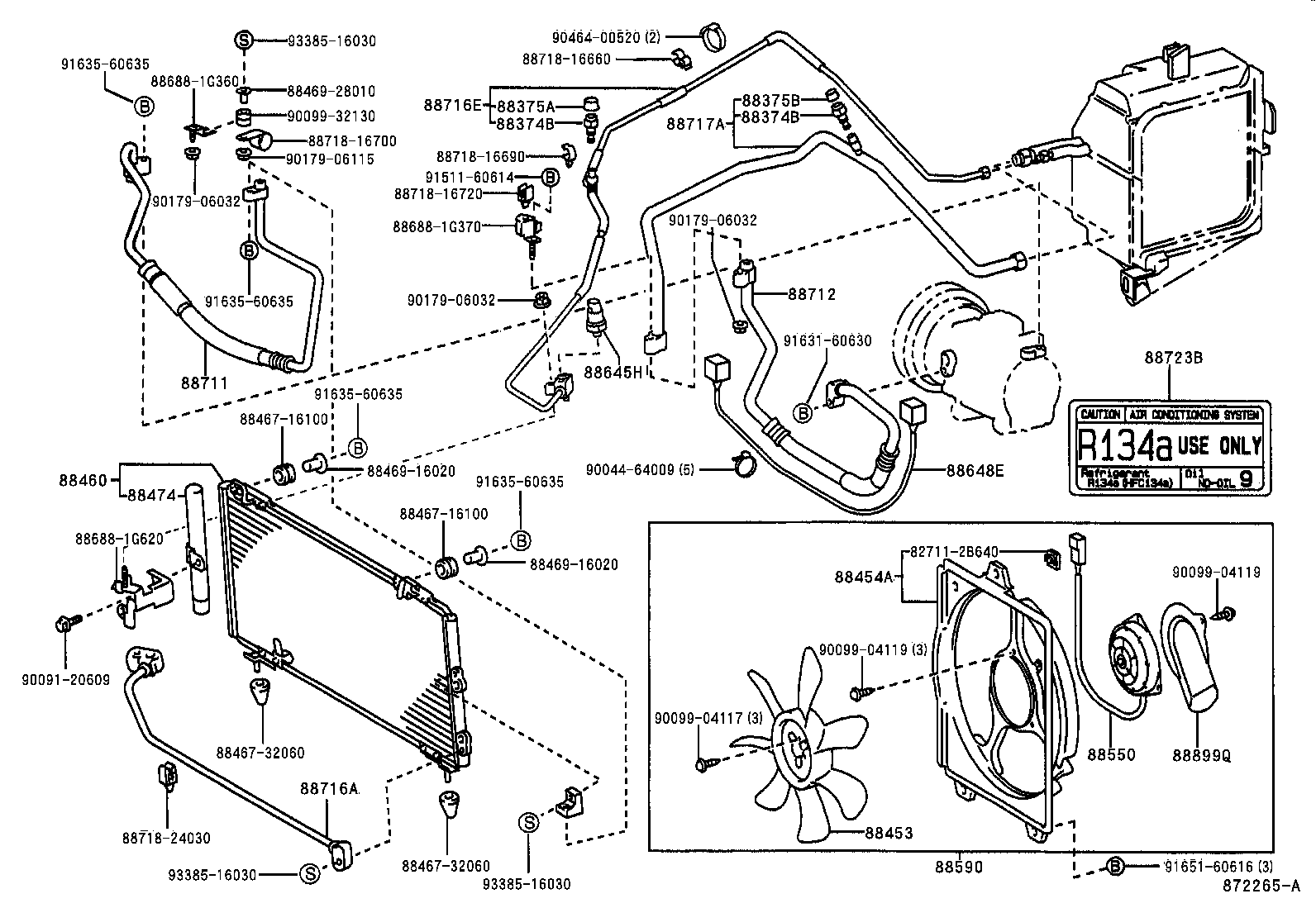

ILLUST NO. 1 OF 2(9712- )CP..USA ; (9802- )CVT
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL54 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL54 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL54 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL54 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16400 |
EL54..USA MAKER OPTION |
1 | ||
| 88460-16450 |
EL54..CVT MAKER OPTION |
1 | ||
| 88460-16510 |
EL54..USA MAKER OPTION |
1 | ||
| 88460-16410 |
EL54 DEALER OPTION |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
EL54..USA |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL54 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL54 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL54 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16220 |
EL54 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16351 |
EL54 DEALER OPTION |
1 | ||
| 88711-16440 |
EL54..USA MAKER OPTION |
1 | ||
| 88711-16281 |
EL54..USA MAKER OPTION |
1 | ||
| 88711-16380 |
EL54..CVT MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16410 |
EL54 |
1 | ||
| 88712-16460 |
EL54..USA PUERTORICO SPEC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G440 |
EL54..USA MAKER OPTION |
1 | ||
| 88716-1G200 |
EL54 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1G220 |
EL54..USA MAKER OPTION |
1 | ||
| 88716-1G280 |
EL54 DEALER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16250 |
EL54 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16090 |
EL54..USA MAKER OPTION |
1 | ||
| 88723-16060 |
EL54 |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL54 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-28010 | ||||
| 88688-1G360 | ||||
| 88688-1G370 | ||||
| 88688-1G620 | ||||
| 88718-16660 | ||||
| 88718-16690 | ||||
| 88718-16700 | ||||
| 88718-16720 | ||||
| 88718-24030 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32130 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00520 | ||||
| 91511-60614 | ||||
| 91631-60630 | ||||
| 91635-60635 | ||||
| 91651-60616 | ||||
| 93385-16030 | ||||

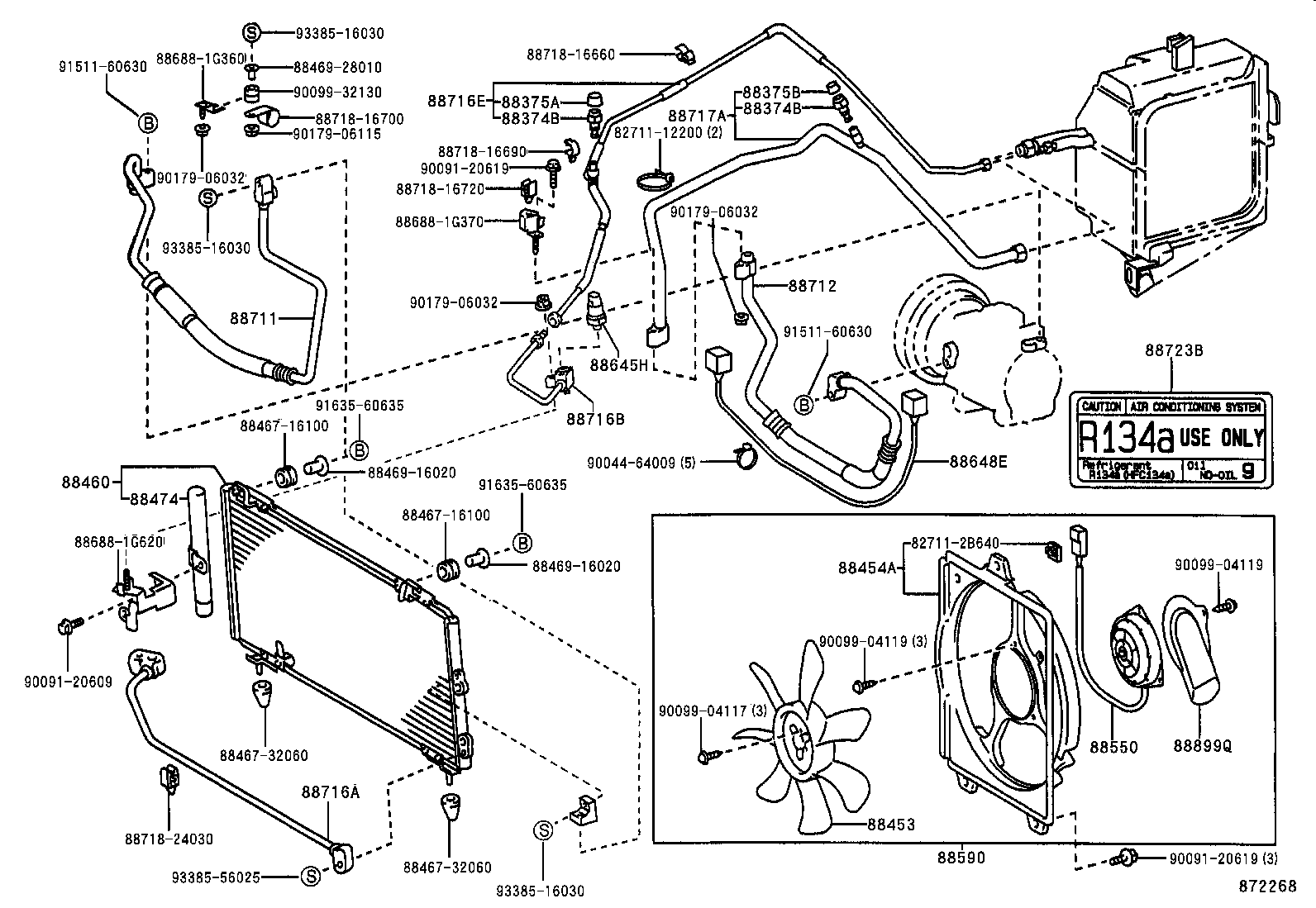

ILLUST NO. 1 OF 2(9712- )CP ; (9802- )CVT
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL54 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL54 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL54 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL54 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16400 |
EL54..USA MAKER OPTION |
1 | ||
| 88460-16450 |
EL54..CVT MAKER OPTION |
1 | ||
| 88460-16510 |
EL54..USA MAKER OPTION |
1 | ||
| 88460-16410 |
EL54 DEALER OPTION |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
EL54..USA |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL54 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL54 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL54 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16220 |
EL54 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16351 |
EL54 DEALER OPTION |
1 | ||
| 88711-16440 |
EL54..USA MAKER OPTION |
1 | ||
| 88711-16281 |
EL54..USA MAKER OPTION |
1 | ||
| 88711-16380 |
EL54..CVT MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16410 |
EL54 |
1 | ||
| 88712-16460 |
EL54..USA PUERTORICO SPEC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G440 |
EL54..USA MAKER OPTION |
1 | ||
| 88716-1G200 |
EL54 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1G290 |
EL54 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1G220 |
EL54..USA MAKER OPTION |
1 | ||
| 88716-1G280 |
EL54 DEALER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16250 |
EL54 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16090 |
EL54..USA MAKER OPTION |
1 | ||
| 88723-16060 |
EL54 |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL54 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-28010 | ||||
| 88688-1G360 | ||||
| 88688-1G370 | ||||
| 88688-1G620 | ||||
| 88718-16660 | ||||
| 88718-16690 | ||||
| 88718-16700 | ||||
| 88718-16720 | ||||
| 88718-24030 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32130 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91511-60630 | ||||
| 91635-60635 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||
