EL54L-DKMSKA (1996)
Toyota Paseo
Production
Sep 1996
-
Mar 1999
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9712- )CP ; (9802- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-16081 |
EL54 |
1 | ||
| 44510-16081 |
EL54..CVT |
1 | ||
| 44510-12210 |
EL54 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-46010 |
EL54 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 91631-60612 | ||||

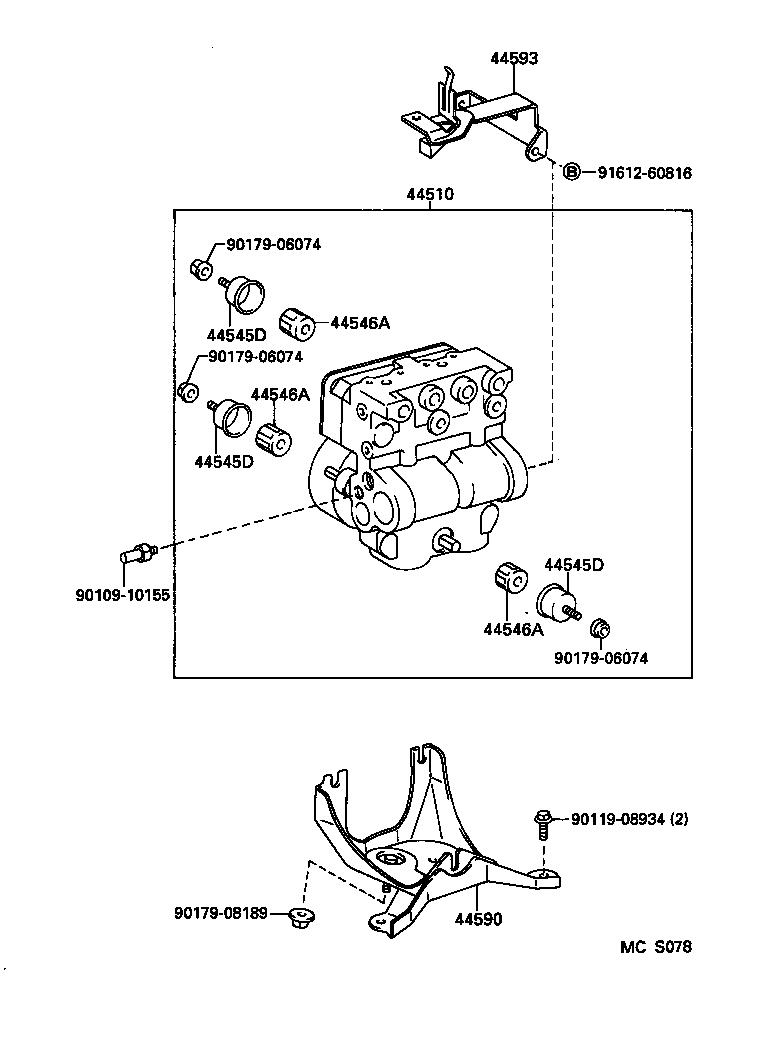

ILLUST NO. 2 OF 2(9508-9712)CP ; (9610-9802)CVT
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-16081 |
EL54 |
1 | ||
| 44510-16081 |
EL54..CVT |
1 | ||
| 44510-12210 |
EL54 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-16020 |
EL54 |
1 | ||
| 44590-16020 |
EL54..CVT |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-16040 |
EL54 |
1 | ||
| 44593-16030 |
EL54..CVT |
1 | ||
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91612-60816 | ||||

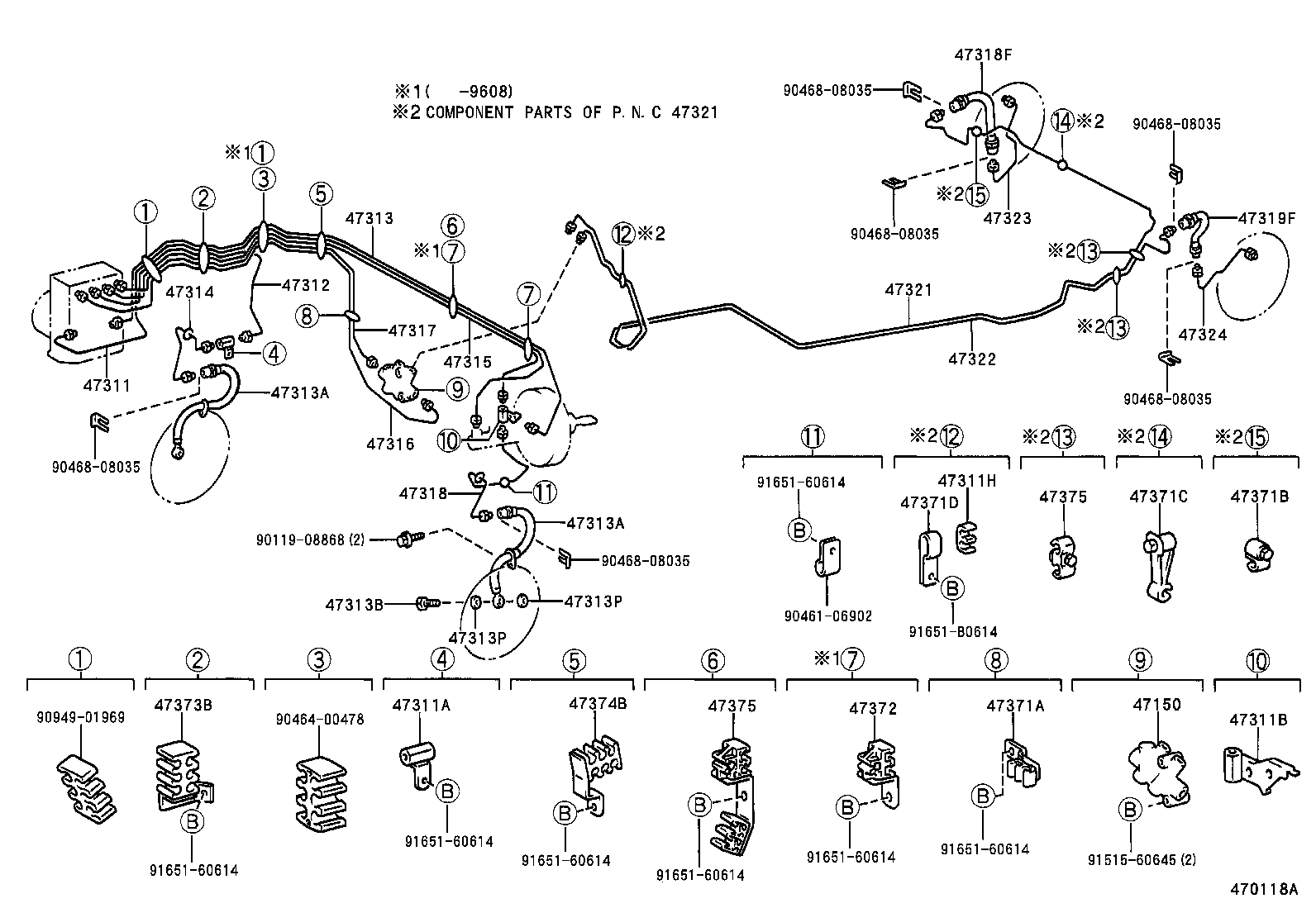

ILLUST NO. 1 OF 2(9508-9712)CP ; (9609-9802)CVT
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20280 |
EL54 W(ABS) |
1 | ||
| 47150-12060 |
EL54 |
1 | ||
| 47150-13020 |
EL54..CVT W(ABS) |
1 | ||
| 47150-20280 |
EL54..CVT W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-16180 |
EL54 W(ABS) |
1 | ||
| 47311-16160 |
EL54 |
1 | ||
| 47311-16210 |
EL54..CVT W(ABS) |
1 | ||
| 47311-16260 |
EL54 W(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10169 |
EL54 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-16020 |
EL54 W(ABS) |
1 | ||
| 90413-10004 |
EL54 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01122 |
EL54 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16160 |
EL54 W(ABS) |
1 | ||
| 47312-16190 |
EL54..CVT W(ABS) |
1 | ||
| 47312-16090 |
EL54 |
1 | ||
| 47312-16230 |
EL54 W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-16180 |
EL54 W(ABS) |
1 | ||
| 47313-16160 |
EL54 |
1 | ||
| 47313-16250 |
EL54 W(ABS) |
1 | ||
| 47313-16210 |
EL54..CVT W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02813 |
EL54 RH |
1 | ||
| 90947-02814 |
EL54 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02813 |
EL54 RH |
1 | ||
| 90947-02814 |
EL54 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
EL54 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL54 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL54 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-10230 |
EL54 W(ABS) |
1 | ||
| 47314-16100 |
EL54 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-16150 |
EL54 W(ABS) |
1 | ||
| 47315-16220 |
EL54 W(ABS) |
1 | ||
| 47315-16180 |
EL54..CVT W(ABS) |
1 | ||
| 47315-16130 |
EL54 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-16080 |
EL54..CVT |
1 | ||
| 47316-16050 |
EL54 |
1 | ||
| 47316-16120 |
EL54 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-16050 |
EL54 |
1 | ||
| 47317-16120 |
EL54 |
1 | ||
| 47317-16080 |
EL54..CVT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-16021 |
EL54 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02637 |
EL54 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02637 |
EL54 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-16110 |
EL54 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-16100 |
EL54 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16170 |
EL54 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-16160 |
EL54 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-16050 |
EL54 |
2 | ||
| 47371-16040 |
EL54 W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-10100 |
EL54 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-10110 |
EL54 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01703 |
EL54 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-16050 |
EL54 W(ABS) |
2 | ||
| 47371-10140 |
EL54 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06902 |
EL54 |
2 | ||
| 47371-16080 |
EL54 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-16090 |
EL54 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-10080 |
EL54 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-10080 |
EL54 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90461-06902 | ||||
| 90464-00478 | ||||
| 90468-08035 | ||||
| 90949-01969 | ||||
| 91515-60645 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||

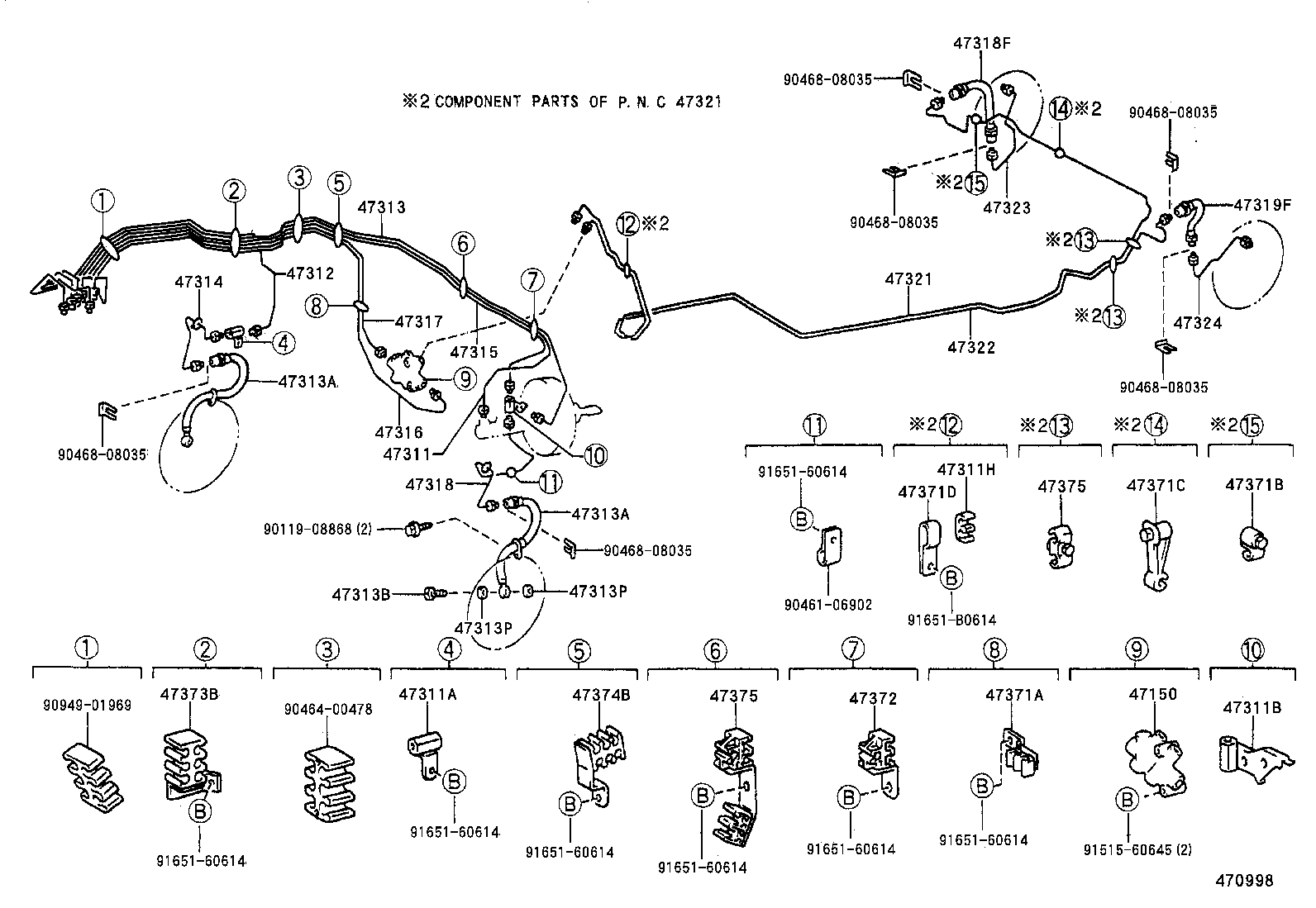

ILLUST NO. 1 OF 2(9712- )CP ; (9802- )CVT
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20280 |
EL54 W(ABS) |
1 | ||
| 47150-12060 |
EL54 |
1 | ||
| 47150-13020 |
EL54..CVT W(ABS) |
1 | ||
| 47150-20280 |
EL54..CVT W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-16180 |
EL54 W(ABS) |
1 | ||
| 47311-16160 |
EL54 |
1 | ||
| 47311-16210 |
EL54..CVT W(ABS) |
1 | ||
| 47311-16260 |
EL54 W(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10169 |
EL54 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-16020 |
EL54 W(ABS) |
1 | ||
| 90413-10004 |
EL54 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01122 |
EL54 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16160 |
EL54 W(ABS) |
1 | ||
| 47312-16190 |
EL54..CVT W(ABS) |
1 | ||
| 47312-16090 |
EL54 |
1 | ||
| 47312-16230 |
EL54 W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-16180 |
EL54 W(ABS) |
1 | ||
| 47313-16160 |
EL54 |
1 | ||
| 47313-16250 |
EL54 W(ABS) |
1 | ||
| 47313-16210 |
EL54..CVT W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02813 |
EL54 RH |
1 | ||
| 90947-02814 |
EL54 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02813 |
EL54 RH |
1 | ||
| 90947-02814 |
EL54 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
EL54 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL54 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL54 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-10230 |
EL54 W(ABS) |
1 | ||
| 47314-16100 |
EL54 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-16150 |
EL54 W(ABS) |
1 | ||
| 47315-16220 |
EL54 W(ABS) |
1 | ||
| 47315-16180 |
EL54..CVT W(ABS) |
1 | ||
| 47315-16130 |
EL54 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-16080 |
EL54..CVT |
1 | ||
| 47316-16050 |
EL54 |
1 | ||
| 47316-16120 |
EL54 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-16050 |
EL54 |
1 | ||
| 47317-16120 |
EL54 |
1 | ||
| 47317-16080 |
EL54..CVT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-16021 |
EL54 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02637 |
EL54 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02637 |
EL54 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-16110 |
EL54 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-16100 |
EL54 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16170 |
EL54 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-16160 |
EL54 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-16050 |
EL54 |
2 | ||
| 47371-16040 |
EL54 W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-10100 |
EL54 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-10110 |
EL54 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01703 |
EL54 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-16050 |
EL54 W(ABS) |
2 | ||
| 47371-10140 |
EL54 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06902 |
EL54 |
2 | ||
| 47371-16080 |
EL54 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-16090 |
EL54 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-10080 |
EL54 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-10080 |
EL54 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90461-06902 | ||||
| 90464-00478 | ||||
| 90468-08035 | ||||
| 90949-01969 | ||||
| 91515-60645 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||

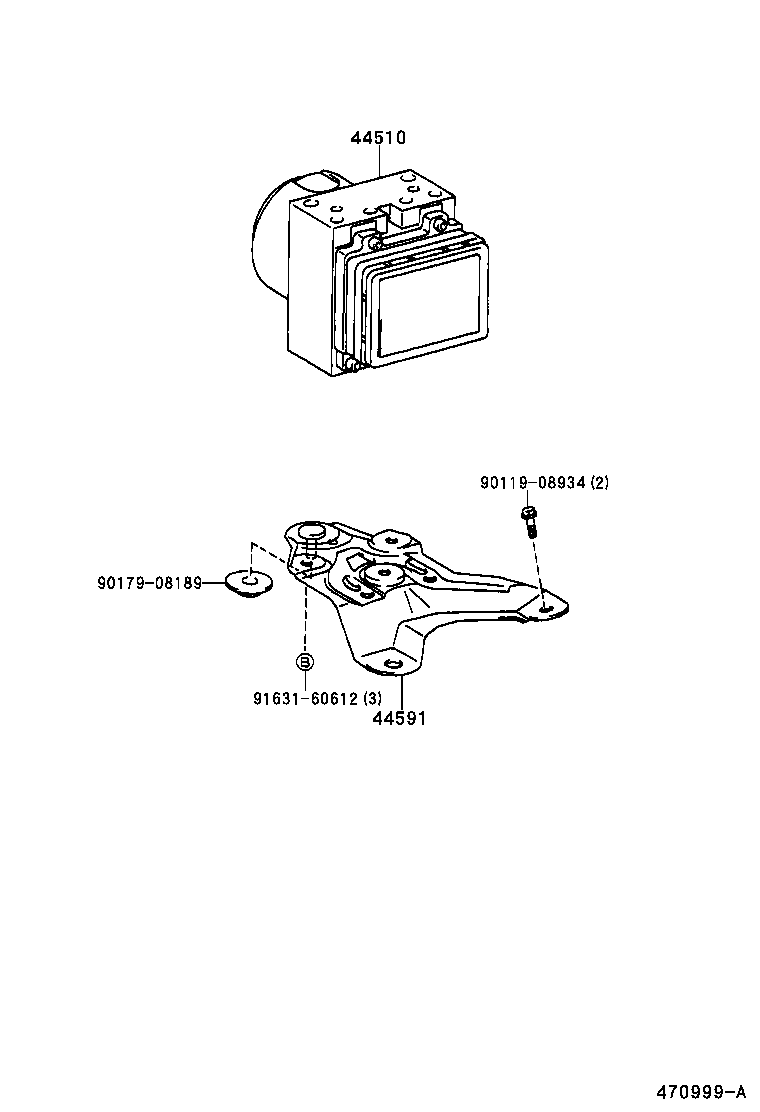

ILLUST NO. 2 OF 2(9712- )CP ; (9802- )CVT
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-16081 |
EL54 |
1 | ||
| 44510-16081 |
EL54..CVT |
1 | ||
| 44510-12210 |
EL54 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-46010 |
EL54 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 91631-60612 | ||||
ILLUST NO. 2 OF 2(9508-9712)CP ; (9609-9802)CVT
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-16081 |
EL54 |
1 | ||
| 44510-16081 |
EL54..CVT |
1 | ||
| 44510-12210 |
EL54 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12020 |
EL54 |
3 | ||
| 44545-12020 |
EL54..CVT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16010 |
EL54..CVT |
3 | ||
| 44546-16010 |
EL54 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-16020 |
EL54 |
1 | ||
| 44590-16020 |
EL54..CVT |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-16040 |
EL54 |
1 | ||
| 44593-16030 |
EL54..CVT |
1 | ||
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91612-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
