EL54L-DCPSKK (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

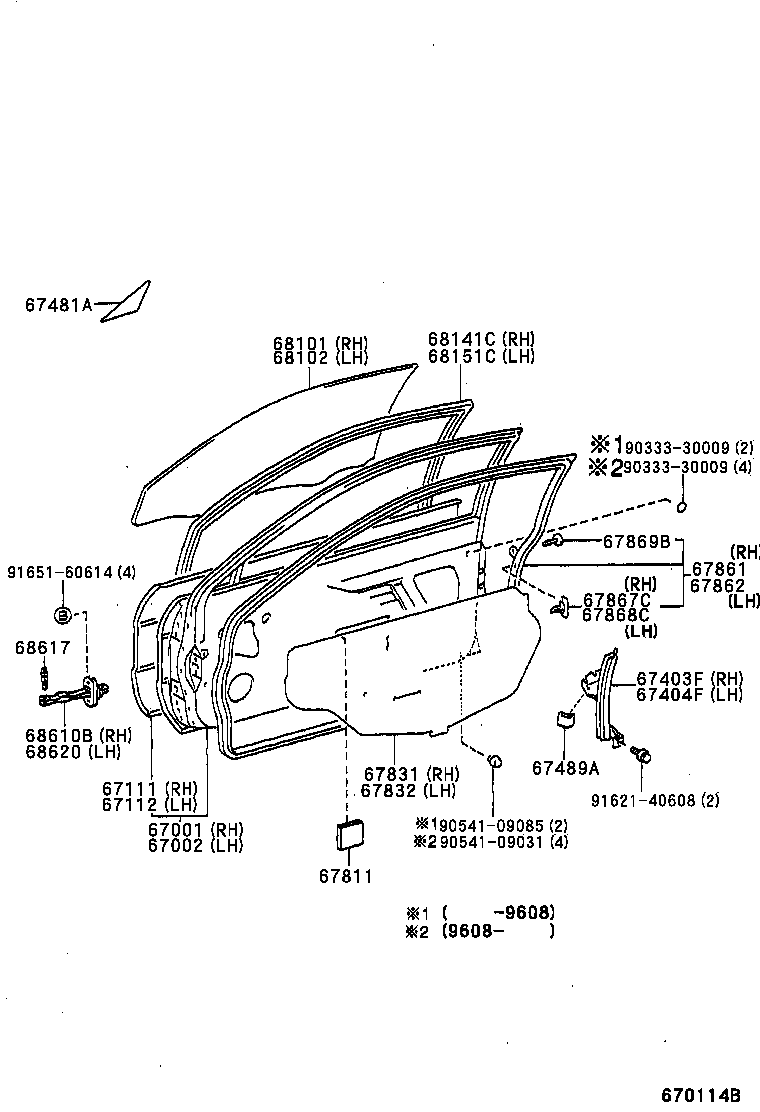

ILLUST NO. 2 OF 2(9508- )CP

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67403F 67404F 67481A 67489A 67811 67831 67832 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68151C 68610B 68617 68620 9033330009 9033330009 9054109031 9054109085 9162140608 9165160614
Part # Description Qty Price
Common parts
90333-30009
90541-09031
90541-09085
91621-40608
91651-60614

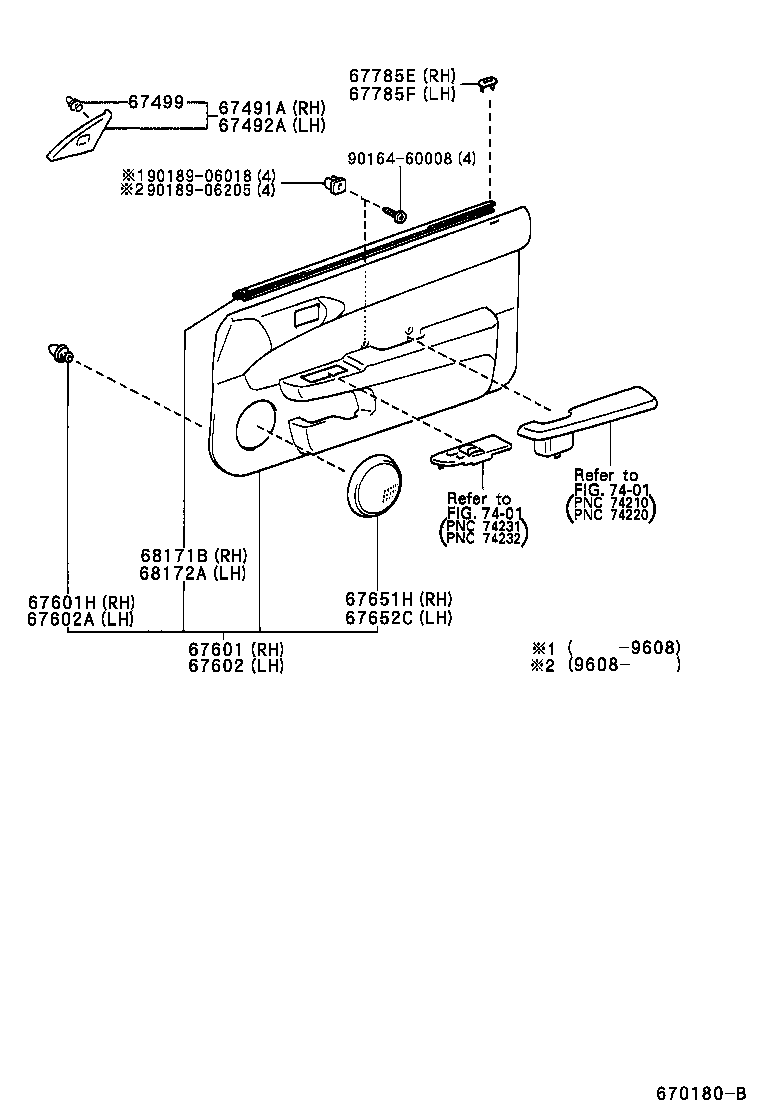

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 67491A 67492A 67499 67601 67601H 67602 67602A 67651H 67652C 67785E 67785F 68171B 68172A 9016460008 9018906018 9018906205
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16270

EL54

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16270

EL54

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070

EL54

 4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1G200B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67610-1G201B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67610-1G211B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67650-16620B0

EL54

W(POWER WINDOW),GRAY,TRIM1#

 1
67610-1G210B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-1G212B1

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67650-16800B0

EL54

GRAY,TRIM1#

 1
67610-1G202B1

EL54..CP

SHADOW GRAY,TRIM1#

 1
67601H - RETAINER, DOOR TRIM, RH
67771-16120

EL54

GRAY

 10
67771-16120

EL54..CP

GRAY

 8
67771-12050

EL54

RED

 4
67771-16120

EL54

GRAY

 7
67771-12050

EL54..CP

RED

 3
67771-16160

EL54

ORANGE

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1G810B0

EL54

GRAY,TRIM1#

 1
67620-1G830B0

EL54

W(POWER WINDOW),GRAY,TRIM1#

 1
67050-16251B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16261B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67050-16260B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67050-16250B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16252B1

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16262B1

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-16160

EL54

ORANGE

 1
67771-16120

EL54

GRAY

 7
67771-16120

EL54

GRAY

 10
67771-12050

EL54

RED

 4
67771-12050

EL54..CP

RED

 3
67771-16120

EL54..CP

GRAY

 8
67651H - GRILLE, SPEAKER DOOR, RH
67651-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
67652C - GRILLE, SPEAKER DOOR, LH
67651-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-12050B0

EL54

SHADOW GRAY,TRIM1#

 1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-12050B0

EL54

SHADOW GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-16210

EL54..CP

 1
68171-16170

EL54..CP

 1
68171-16140

EL54

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-16190

EL54..CP

 1
68172-16160

EL54

 1
68172-16230

EL54..CP

 1
Common parts
90164-60008
90189-06018
90189-06205

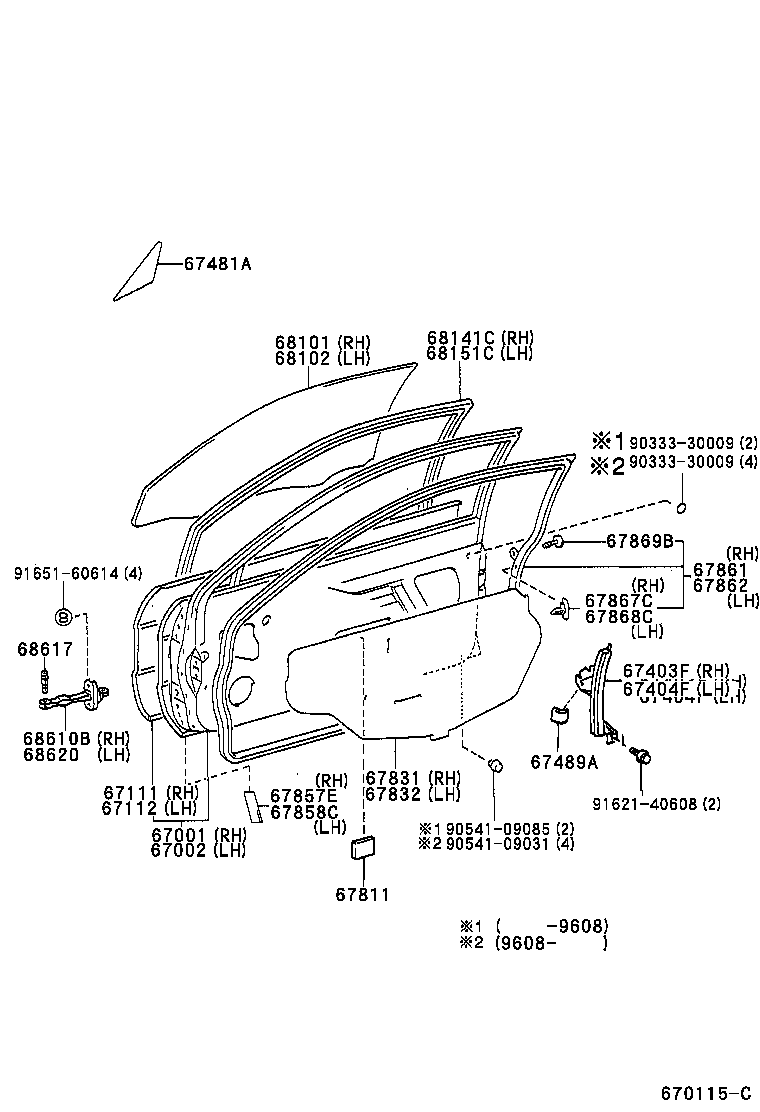

ILLUST NO. 2 OF 2(9508- )CP

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67403F 67403F 67404F 67404F 67481A 67489A 67811 67831 67832 67857E 67858C 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68151C 68610B 68617 68620 9033330009 9033330009 9054109031 9054109085 9162140608 9165160614
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16651

EL54..CP

 1
67001-16650

EL54

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16580

EL54

 1
67002-16581

EL54..CP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16230

EL54

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16220

EL54

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16150

EL54..CP

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16150

EL54..CP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16150

EL54..CP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16150

EL54..CP

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-16190

EL54

 2
67489A - SEAL, FRONT DOOR FRONT LOWER FRAME COVER
67489-16010

EL54..CP

 2
67811 - PAD, FRONT DOOR SILENCER
67811-16020

EL54

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-16420

EL54

W(POWER WINDOW)

 2
67831-16410

EL54

 1
67831-16420

EL54

W(POWER WINDOW)

 1
67831-16410

EL54..CP

 1
67831-16420

EL54..CP

W(POWER WINDOW)

 1
67831-16420

EL54

W(POWER WINDOW)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-16130

EL54

W(POWER WINDOW)

 2
67832-16130

EL54..CP

W(POWER WINDOW)

 1
67831-16410

EL54..CP

 1
67832-16130

EL54

W(POWER WINDOW)

 1
67832-16130

EL54

W(POWER WINDOW)

 1
67831-16410

EL54

 1
67857E - PROTECTOR, REAR DOOR PANEL, RH
67857-16010

EL54

 1
67858C - PROTECTOR, REAR DOOR PANEL, LH
67858-16010

EL54

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16320

EL54..CP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16320

EL54..CP

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

EL54

 18
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

EL54

 18
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-30020

EL54

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-16190

EL54..CP

*TT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-16190

EL54..CP

*TT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-16240

EL54..CP

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-16070

EL54..CP

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-16090

EL54

 1
68617 - PIN, FRONT DOOR CHECK
68617-12030

EL54

 2
68617-20011

EL54

 2
68620 - CHECK ASSY, FRONT DOOR, LH
68610-16090

EL54

 1
Common parts
90333-30009
90541-09031
90541-09085
91621-40608
91651-60614

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 67491A 67492A 67499 67601 67601H 67602 67602A 67651H 67652C 67785E 67785F 68171B 68172A 9016460008 9018906018 9018906205
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16270

EL54

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16270

EL54

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070

EL54

 4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1G200B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67610-1G201B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67610-1G211B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67650-16620B0

EL54

W(POWER WINDOW),GRAY,TRIM1#

 1
67610-1G210B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-1G212B1

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67650-16800B0

EL54

GRAY,TRIM1#

 1
67610-1G202B1

EL54..CP

SHADOW GRAY,TRIM1#

 1
67601H - RETAINER, DOOR TRIM, RH
67771-16120

EL54

GRAY

 10
67771-16120

EL54..CP

GRAY

 8
67771-12050

EL54

RED

 4
67771-16120

EL54

GRAY

 7
67771-12050

EL54..CP

RED

 3
67771-16160

EL54

ORANGE

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1G810B0

EL54

GRAY,TRIM1#

 1
67620-1G830B0

EL54

W(POWER WINDOW),GRAY,TRIM1#

 1
67050-16251B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16261B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67050-16260B0

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67050-16250B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16252B1

EL54..CP

SHADOW GRAY,TRIM1#

 1
67050-16262B1

EL54..CP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-16160

EL54

ORANGE

 1
67771-16120

EL54

GRAY

 7
67771-16120

EL54

GRAY

 10
67771-12050

EL54

RED

 4
67771-12050

EL54..CP

RED

 3
67771-16120

EL54..CP

GRAY

 8
67651H - GRILLE, SPEAKER DOOR, RH
67651-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
67652C - GRILLE, SPEAKER DOOR, LH
67651-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-12050B0

EL54

SHADOW GRAY,TRIM1#

 1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-12050B0

EL54

SHADOW GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-16210

EL54..CP

 1
68171-16170

EL54..CP

 1
68171-16140

EL54

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-16190

EL54..CP

 1
68172-16160

EL54

 1
68172-16230

EL54..CP

 1
Common parts
90164-60008
90189-06018
90189-06205
