EL54L-DCPSKK (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508-9712) ; (9712-9802)CVT ; (9712- )ARL

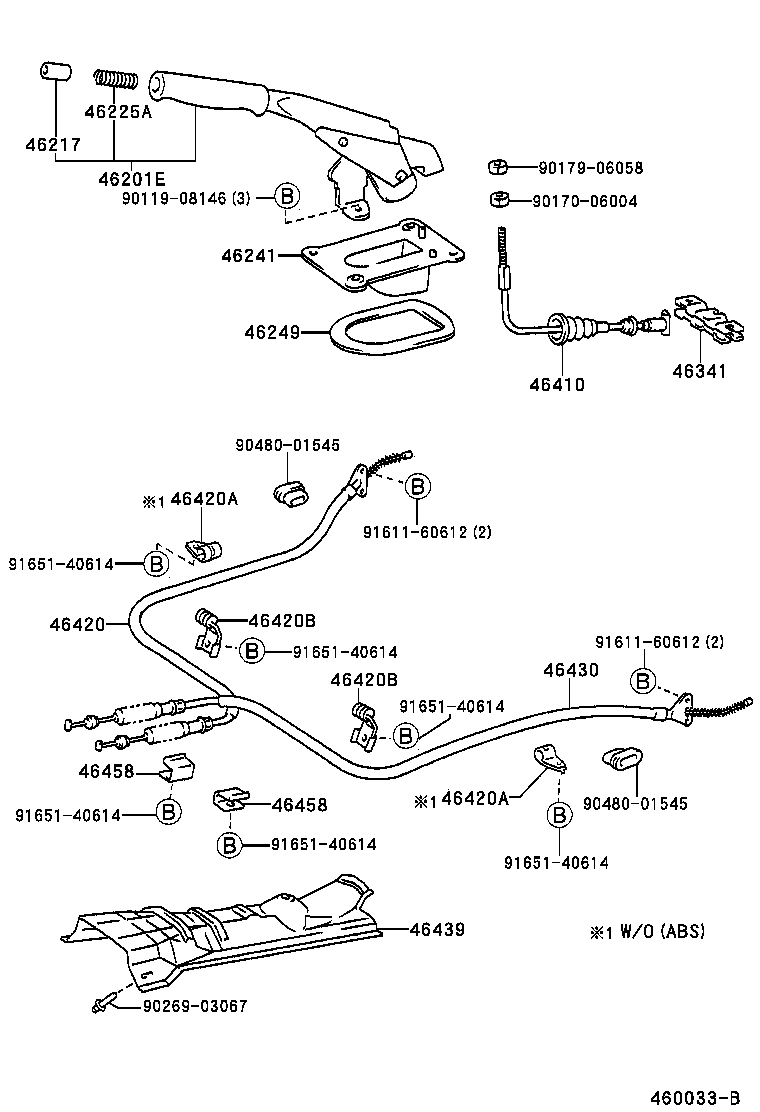

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-16070B1 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46201-16090B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020B2 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46217-16030B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
EL54 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-16040 |
EL54 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
EL54 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
EL54 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-42010 |
EL54 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-16160 |
EL54 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL54 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL54 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL54 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL54 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-16160 |
EL54 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-16021 |
EL54 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EL54 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EL54 |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90269-03067 | ||||
| 90480-01545 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-16070B1 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46201-16090B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020B2 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46217-16030B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
EL54 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-16040 |
EL54 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
EL54 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
EL54 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-42010 |
EL54 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-16160 |
EL54 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL54 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL54 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL54 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL54 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-16160 |
EL54 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-16021 |
EL54 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EL54 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EL54 |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90269-03067 | ||||
| 90480-01545 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
