EL54L-DCPSKK (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

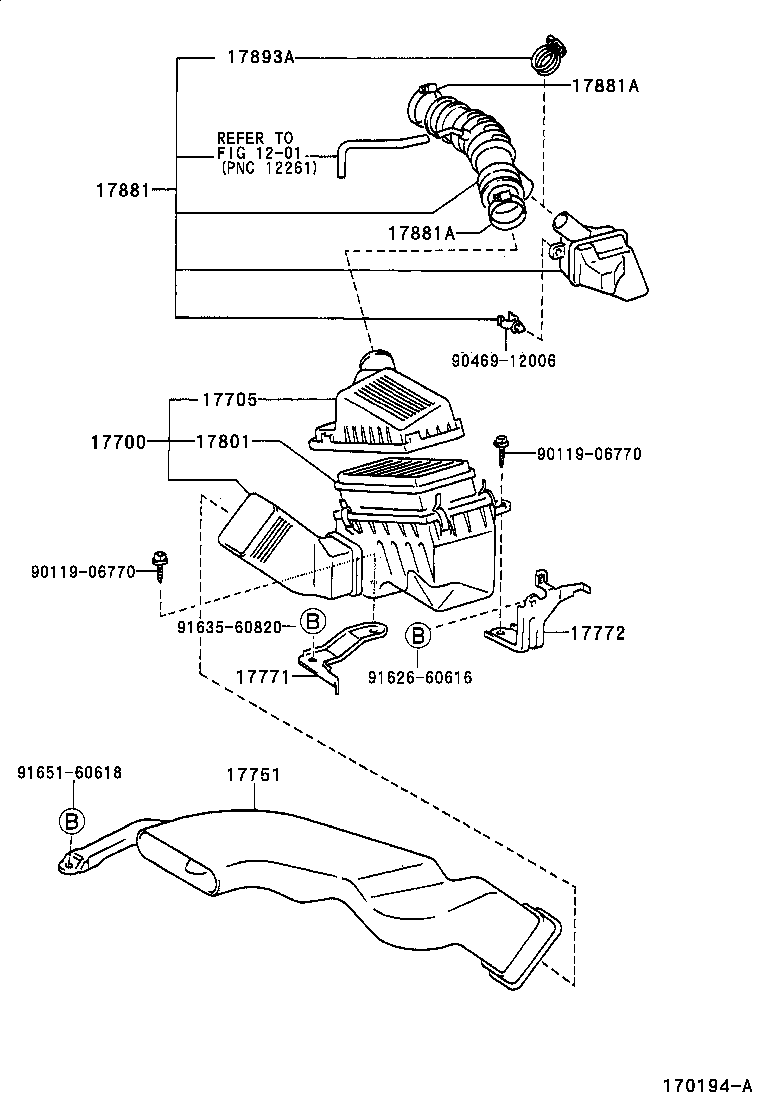

Click highlighted areas on diagram

diagram 1201 17700 17705 17751 17771 17772 17801 17881 17881A 17881A 17893A 9011906770 9011906770 9046912006 9162660616 9163560820 9165160618
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-11870

5EFE..EL54

 1
17700-11871

5EFE..EL54

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11541

5EFE..EL54

 1
17705-11542

5EFE..EL54

 1
17751 - INLET, AIR CLEANER, NO.1
17751-11120

5EFE..EL54

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-11140

5EFE..EL54

 1
17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17772-11040

5EFE..EL54

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-11080

5EFE..EL54

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-11241

5EFE..EL54

 1
17880-11240

5EFE..EL54

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

5EFE..EL54

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

5EFE..EL54

 2
17893A - CLAMP, HOSE
96111-10400

5EFE..EL54

 1
Common parts
90119-06770
90469-12006
91626-60616
91635-60820
91651-60618
Linked diagrams
1201
