EL54L-DCPSKK (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

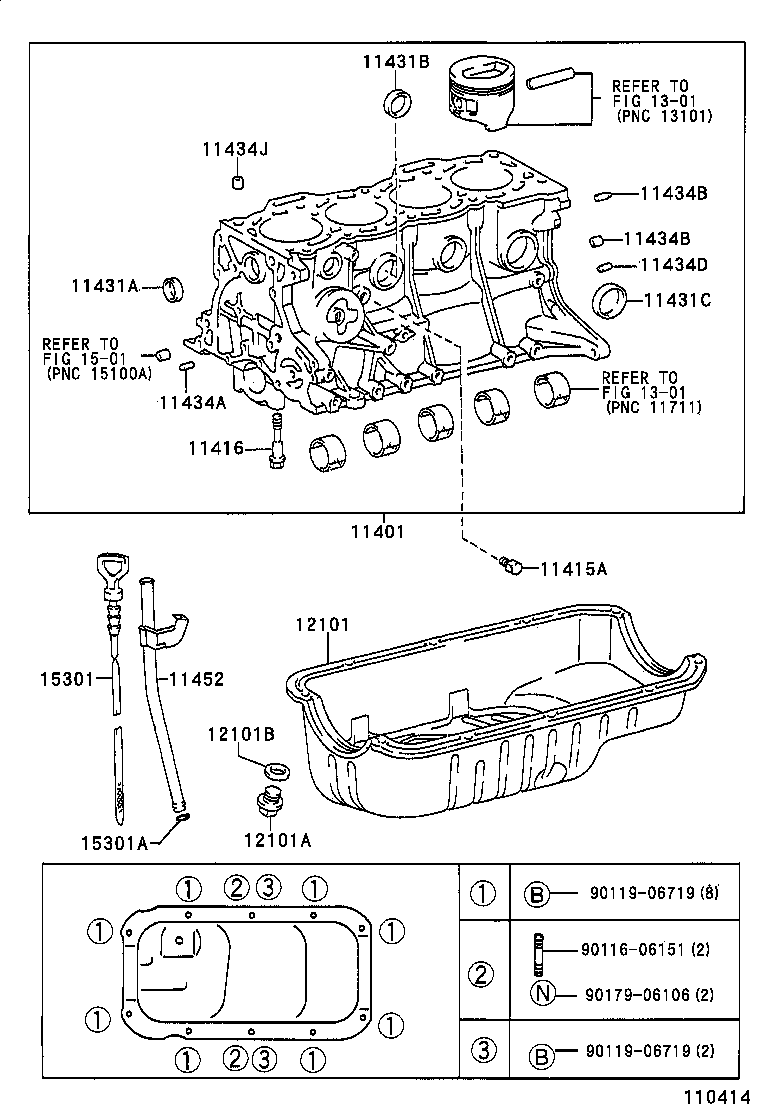

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19886 |
5EFE..EL54 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
5EFE..EL54 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
5EFE..EL54 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
5EFE..EL54 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
5EFE..EL54 |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5EFE..EL54 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-06068 |
5EFE..EL54 L=11,OD=6 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
5EFE..EL54 L=20,OD=10 |
1 | ||
| 90253-15003 |
5EFE..EL54 L=17,OD=15 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
5EFE..EL54 L=20,OD=10 |
1 | ||
| 90253-15003 |
5EFE..EL54 L=17,OD=15 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
5EFE..EL54 L=11,OD=6 |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-12001 |
5EFE..EL54 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-11040 |
5EFE..EL54 |
1 | ||
| 11452-11041 |
5EFE..EL54 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-11060 |
5EFE..EL54 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
5EFE..EL54 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
5EFE..EL54 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-11050 |
5EFE..EL54 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19010 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90116-06151 | ||||
| 90119-06719 | ||||
| 90179-06106 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19886 |
5EFE..EL54 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
5EFE..EL54 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
5EFE..EL54 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
5EFE..EL54 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
5EFE..EL54 |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5EFE..EL54 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-06068 |
5EFE..EL54 L=11,OD=6 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
5EFE..EL54 L=20,OD=10 |
1 | ||
| 90253-15003 |
5EFE..EL54 L=17,OD=15 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
5EFE..EL54 L=20,OD=10 |
1 | ||
| 90253-15003 |
5EFE..EL54 L=17,OD=15 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
5EFE..EL54 L=11,OD=6 |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-12001 |
5EFE..EL54 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-11040 |
5EFE..EL54 |
1 | ||
| 11452-11041 |
5EFE..EL54 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-11060 |
5EFE..EL54 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
5EFE..EL54 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
5EFE..EL54 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-11050 |
5EFE..EL54 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19010 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90116-06151 | ||||
| 90119-06719 | ||||
| 90179-06106 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
