EL54L-DCPSKA (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

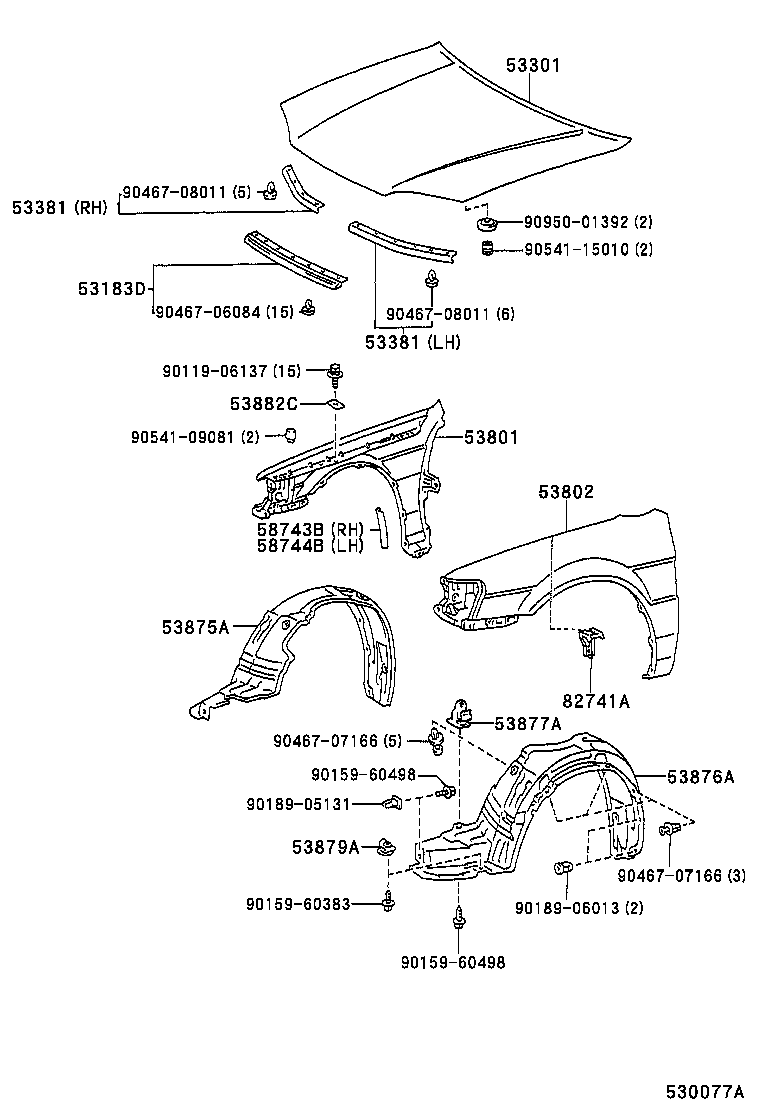

Click highlighted areas on diagram

diagram 53183D 53301 53381 53381 53801 53802 53875A 53876A 53877A 53879A 53882C 82741A 9011906137 9015960383 9015960498 9015960498 9018905131 9018906013 9046706084 9046707166 9046707166 9046708011 9046708011 9054109081 9054115010 9095001392
Part # Description Qty Price
Common parts
90119-06137
90159-60383
90159-60498
90189-05131
90189-06013
90467-06084
90467-07166
90467-08011
90541-09081
90541-15010
90950-01392

(9508- )

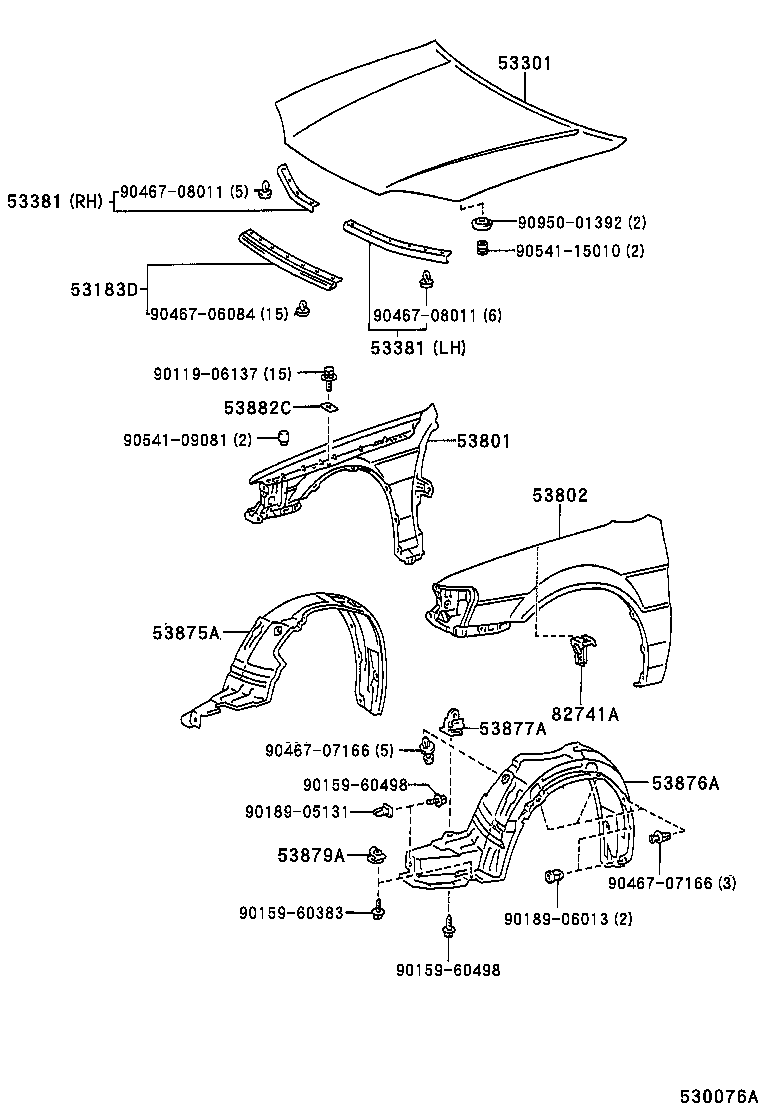

Click highlighted areas on diagram

diagram 53183D 53301 53381 53381 53801 53802 53875A 53876A 53877A 53879A 53882C 58743B 58744B 82741A 9011906137 9015960383 9015960498 9015960498 9018905131 9018906013 9046706084 9046707166 9046707166 9046708011 9046708011 9054109081 9054115010 9095001392
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-16040

EL54

 1
53301 - HOOD SUB-ASSY
53301-16160

EL54

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53382-16030

EL54

LH

 1
53381-16090

EL54

RH

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53382-16030

EL54

LH

 1
53381-16090

EL54

RH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-16460

EL54

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-16460

EL54

 1
53875A - LINER, FRONT FENDER, RH
53875-16080

EL54

 1
53876A - LINER, FRONT FENDER, LH
53876-16080

EL54

 1
53877A - BRACKET, FRONT FENDER SPLASH SHIELD
53877-16010

EL54

 2
53879A - RETAINER, FRONT FENDER LINER
53879-16010

EL54

 2
53882C - SEAL, FRONT FENDER MAIN
53882-16030

EL54

 11
58743B - PROTECTER, FRONT FENDER PANEL, RH
58743-20030

EL54

 1
58744B - PROTECTER, FRONT FENDER PANEL, LH
58743-20030

EL54

 1
82741A - BRACKET, ENGINE ROOM RELAY BLOCK
85999-16140

EL54

 1
Common parts
90119-06137
90159-60383
90159-60498
90189-05131
90189-06013
90467-06084
90467-07166
90467-08011
90541-09081
90541-15010
90950-01392
