EL54L-DCMSKW (1995)
Toyota Paseo

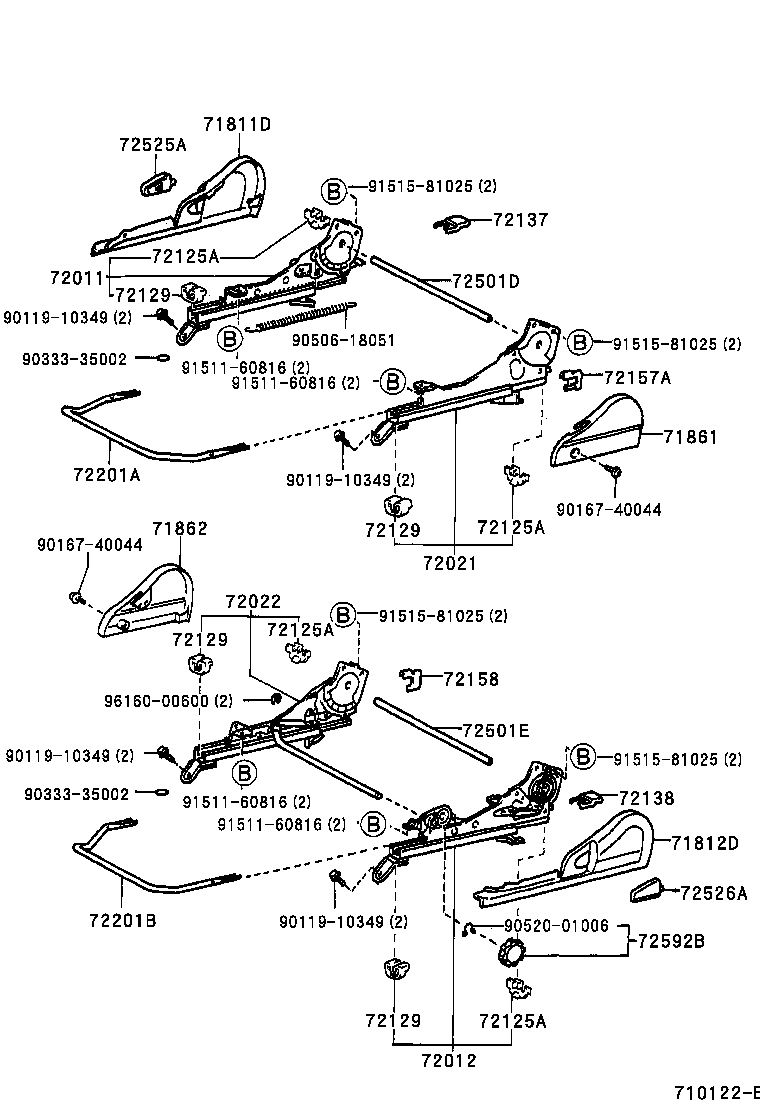

ILLUST NO. 2 OF 2(9512- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16240B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16190B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16220B0 |
EL54..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71861-16220B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16190B0 |
EL54..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71862-16190B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16360 |
EL54..LHD..CP |
1 | ||
| 72011-16360 |
EL54..LHD |
1 | ||
| 72011-16300 |
EL54..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16310 |
EL54..LHD..CP |
1 | ||
| 72012-16310 |
EL54..LHD |
1 | ||
| 72012-16240 |
EL54..LHD..EUR |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16240 |
EL54..LHD |
1 | ||
| 72021-16300 |
EL54..LHD..CP |
1 | ||
| 72021-16300 |
EL54..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16260 |
EL54..LHD..CP |
1 | ||
| 72022-16210 |
EL54..LHD..EUR |
1 | ||
| 72022-16260 |
EL54..LHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL54..LHD |
4 | ||
| 72125-16020 |
EL54..LHD..CP |
4 | ||
| 72125-16020 |
EL54..CP |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL54..LHD |
4 | ||
| 72125-16020 |
EL54..LHD..CP |
4 | ||
| 72125-16020 |
EL54..CP |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL54..LHD |
4 | ||
| 72125-16020 |
EL54..LHD..CP |
4 | ||
| 72125-16020 |
EL54..CP |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL54..LHD |
4 | ||
| 72125-16020 |
EL54..LHD..CP |
4 | ||
| 72125-16020 |
EL54..CP |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL54..CP FRONT |
4 | ||
| 72129-16010 |
EL54 REAR |
4 | ||
| 72129-16020 |
EL54 FRONT |
4 | ||
| 72129-16010 |
EL54..CP REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL54..CP FRONT |
4 | ||
| 72129-16010 |
EL54 REAR |
4 | ||
| 72129-16020 |
EL54 FRONT |
4 | ||
| 72129-16010 |
EL54..CP REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL54..CP FRONT |
4 | ||
| 72129-16010 |
EL54 REAR |
4 | ||
| 72129-16020 |
EL54 FRONT |
4 | ||
| 72129-16010 |
EL54..CP REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL54..CP FRONT |
4 | ||
| 72129-16010 |
EL54 REAR |
4 | ||
| 72129-16020 |
EL54 FRONT |
4 | ||
| 72129-16010 |
EL54..CP REAR |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16040 |
EL54 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16040 |
EL54 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16070 |
EL54 |
1 | ||
| 72157-16080 |
EL54 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16070 |
EL54 |
1 | ||
| 72158-16080 |
EL54 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-16030 |
EL54 |
1 | ||
| 72201-16010 |
EL54 |
1 | ||
| 72201-16030 |
EL54..CP |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-16030 |
EL54..CP |
1 | ||
| 72201-16010 |
EL54 |
1 | ||
| 72201-16030 |
EL54 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-16020 |
EL54..CVT;EL54..LHD..CP |
1 | ||
| 72345-16020 |
EL54..LHD |
1 | ||
| 72345-16020 |
EL54 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16020 |
EL54 |
1 | ||
| 72345-16020 |
EL54..LHD |
1 | ||
| 72345-16020 |
EL54..CVT;EL54..LHD..CP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
EL54 SHADOW GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-20040P0 |
EL54..LHD..EUR SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90333-35002 | ||||
| 90506-18051 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 2(9508-9712)CP ; (9610-9802)CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16060 |
EL54..RHD..CVT;EL54..LHD..CP..EUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-16060 |
EL54..LHD..EUR |
1 | ||
| 71610-16050 |
EL54..LHD..CP;EL54..RHD..CVT |
1 | ||
| 71610-16060 |
EL54..LHD..CP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16200B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16200B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16200B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71518-16200B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16220B4 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16220B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71518-16220B4 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16220B3 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16220B0 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16150B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71558-16150B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16330B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16330B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16100B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16100B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16100B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71558-16100B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G550B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71410-1G550B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1G330B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G330B0 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-16090B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1G450B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G450B4 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71040-16090B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G410B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G410B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 2(9712- )CP ; (9802- )CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16060 |
EL54..RHD..CVT;EL54..LHD..CP..EUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-16060 |
EL54..LHD..EUR |
1 | ||
| 71610-16050 |
EL54..LHD..CP;EL54..RHD..CVT |
1 | ||
| 71610-16060 |
EL54..LHD..CP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16200B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16200B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16200B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71518-16200B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16220B4 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16220B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71518-16220B4 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16220B3 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16220B0 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16150B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71558-16150B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16330B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16330B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16100B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16100B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16100B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71558-16100B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G550B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71410-1G550B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1G330B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G330B0 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-16090B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1G450B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G450B4 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71040-16090B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G410B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G410B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16590B0 |
EL54 GRAY,TRIM1# |
2 | ||
| 71910-16590B0 |
EL54..CP GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
EL54..CP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
EL54..CP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
EL54..CP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
EL54..CP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 2(9508-9712)CP ; (9609-9802)CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16060 |
EL54..RHD..CVT;EL54..LHD..CP..EUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-16060 |
EL54..LHD..EUR |
1 | ||
| 71610-16050 |
EL54..LHD..CP;EL54..RHD..CVT |
1 | ||
| 71610-16060 |
EL54..LHD..CP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16200B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16200B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16200B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71518-16200B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16220B4 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16220B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71518-16220B4 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16220B3 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16220B0 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16150B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71558-16150B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16330B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16330B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16100B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16100B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16100B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71558-16100B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G550B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71410-1G550B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1G330B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G330B0 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-16090B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1G450B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G450B4 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71040-16090B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G410B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G410B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 2(9712- )CP ; (9802- )CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16050 |
EL54..LHD |
1 | ||
| 71610-16060 |
EL54..RHD..CVT;EL54..LHD..CP..EUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-16060 |
EL54..LHD..EUR |
1 | ||
| 71610-16050 |
EL54..LHD..CP;EL54..RHD..CVT |
1 | ||
| 71610-16060 |
EL54..LHD..CP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16200B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16200B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16200B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71518-16200B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71518-16600B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16220B4 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71518-16220B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71518-16220B4 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71518-16220B3 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71518-16220B0 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71528-16190B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16150B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71558-16150B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16330B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16150B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16330B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16100B5 |
EL54..LHD..CP..EUR GRAY,TRIM15 |
1 | ||
| 71558-16100B1 |
EL54..LHD..EUR GRAY/BLUE,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16100B5 |
EL54..LHD..CP GRAY,TRIM1# |
1 | ||
| 71558-16320B0 |
EL54..LHD GRAY,TRIM1# |
1 | ||
| 71558-16100B4 |
EL54..LHD..EUR GRAY/GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G550B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71410-1G550B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G300B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1G330B2 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G440B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G330B0 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-16090B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1G450B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G450B4 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71040-16090B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G410B1 |
EL54..LHD..EUR GRAY,TRIM1# |
1 | ||
| 71430-1G410B5 |
EL54..LHD..CP..EUR GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16100B0 |
EL54..LHD..CP SHADOW GRAY,TRIM1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-16260 |
EL54 |
1 | ||
| 71630-16270 |
EL54..CP |
1 | ||
| 71630-16270 |
EL54 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16590B0 |
EL54 GRAY,TRIM1# |
2 | ||
| 71910-16590B0 |
EL54..CP GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
EL54..CP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
EL54..CP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
EL54..CP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
EL54..CP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
