EL54L-DCMSK (1995)
Toyota Paseo
Production
Aug 1995
-
Feb 1997
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )LHD

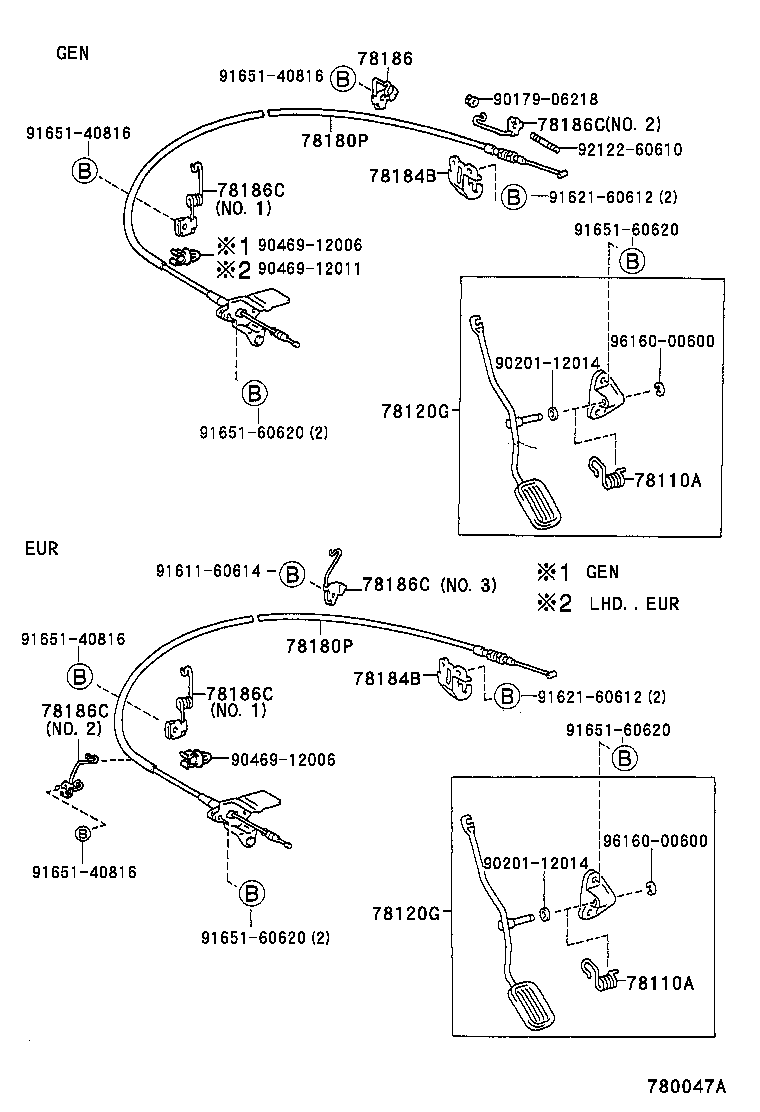

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-17003 |
EL54..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-17003 |
EL54..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16100 |
EL54..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16100 |
EL54..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-16440 |
EL54..GEN |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-16440 |
EL54..GEN |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EL54 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EL54 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-16180 |
EL54..GEN |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL54..GEN NO.2 |
1 | ||
| 78186-16230 |
EL54..GEN NO.2 |
1 | ||
| 78186-16150 |
EL54..LHD NO.1 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL54..GEN NO.2 |
1 | ||
| 78186-16230 |
EL54..GEN NO.2 |
1 | ||
| 78186-16150 |
EL54..LHD NO.1 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL54..GEN NO.2 |
1 | ||
| 78186-16230 |
EL54..GEN NO.2 |
1 | ||
| 78186-16150 |
EL54..LHD NO.1 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL54..GEN NO.2 |
1 | ||
| 78186-16230 |
EL54..GEN NO.2 |
1 | ||
| 78186-16150 |
EL54..LHD NO.1 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL54..GEN NO.2 |
1 | ||
| 78186-16230 |
EL54..GEN NO.2 |
1 | ||
| 78186-16150 |
EL54..LHD NO.1 |
1 | ||
| Common parts | ||||
| 90179-06218 | ||||
| 90201-12014 | ||||
| 90469-12006 | ||||
| 90469-12011 | ||||
| 91611-60614 | ||||
| 91621-60612 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 92122-60610 | ||||
| 96160-00600 | ||||
(9508- )

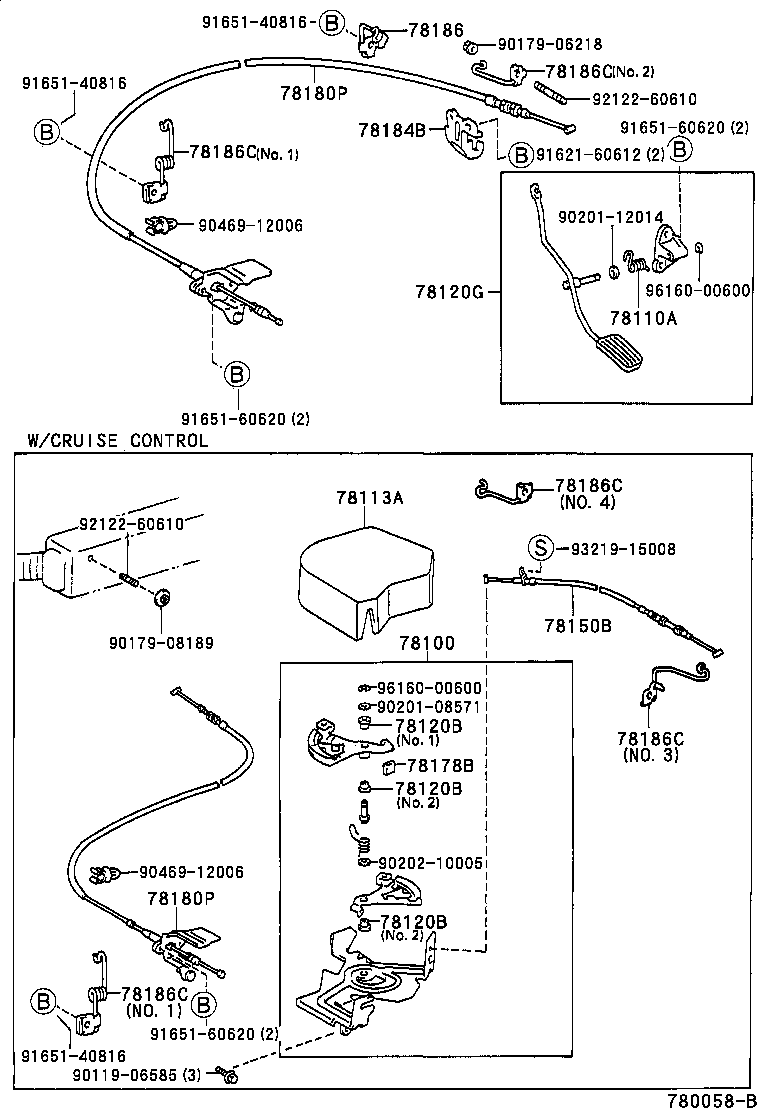

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06585 | ||||
| 90179-06218 | ||||
| 90179-08189 | ||||
| 90201-08571 | ||||
| 90201-12014 | ||||
| 90202-10005 | ||||
| 90469-12006 | ||||
| 91621-60612 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 92122-60610 | ||||
| 93219-15008 | ||||
| 96160-00600 | ||||
