EL54L-DCMSK (1995)

Toyota Paseo

Production Aug 1995 - Feb 1997
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )LHD

Click highlighted areas on diagram

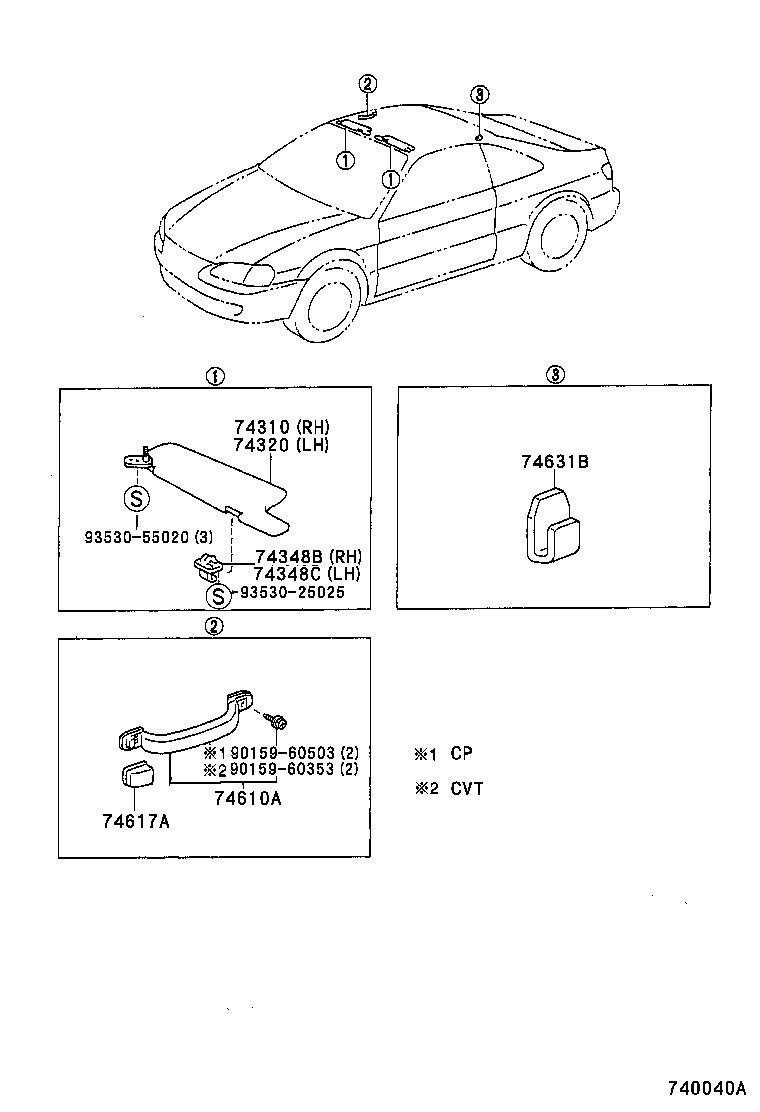

SUNVISER

diagram 74310 74320 74348B 74348C 74610A 74617A 74631B 9015960353 9015960503 9353025025 9353055020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-16680B0

EL54..GEN

LT. BLUISH GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-16541B0

EL54..GEN

W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#

 1
74320-16540B0

EL54..GEN

W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#

 1
74320-16510B0

EL54..GEN

LT. BLUISH GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-33030B3

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-33030B3

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-22050B1

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74612-22050B4

EL54..CP

LT.BLUISH GRAY,TRIM1#

 2
74631B - HOOK, COAT
74631-16010B0

EL54..CP

LT,BLUISH GRAY,TRIM1#

 1
Common parts
90159-60353
90159-60503
93530-25025
93530-55020

(9508- )

Click highlighted areas on diagram

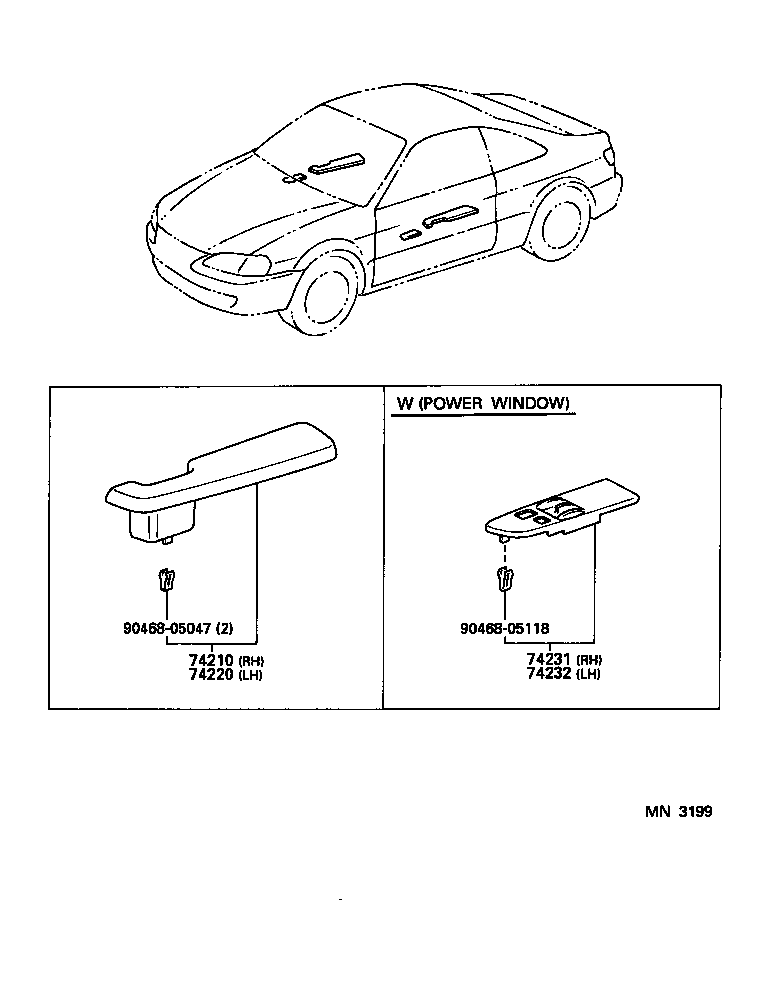

ARMREST

diagram 74210 74220 74231 74232 9046805047 9046805118
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-16090B1

EL54

SHADOW GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-10032C0

EL54..LHD

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-10030C0

EL54..LHD

BLACK,TRIM1#

 1
Common parts
90468-05047
90468-05118

(9508- )

Click highlighted areas on diagram

SUNVISER

diagram 74310 74320 74348B 74348C 74610A 74617A 74631B 9015960353 9015960503 9353025025 9353055020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-16680B0

EL54..GEN

LT. BLUISH GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-16541B0

EL54..GEN

W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#

 1
74320-16540B0

EL54..GEN

W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#

 1
74320-16510B0

EL54..GEN

LT. BLUISH GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-33030B3

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-33030B3

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-22050B1

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74612-22050B4

EL54..CP

LT.BLUISH GRAY,TRIM1#

 2
74631B - HOOK, COAT
74631-16010B0

EL54..CP

LT,BLUISH GRAY,TRIM1#

 1
Common parts
90159-60353
90159-60503
93530-25025
93530-55020

(9508- )

Click highlighted areas on diagram

ARMREST

diagram 74210 74220 74231 74232 9046805047 9046805118
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-16090B1

EL54

SHADOW GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-16070B1

EL54

SHADOW GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-10032C0

EL54..LHD

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-10030C0

EL54..LHD

BLACK,TRIM1#

 1
Common parts
90468-05047
90468-05118
