EL54L-DCMSK (1995)

Toyota Paseo

Production Aug 1995 - Feb 1997
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )CP

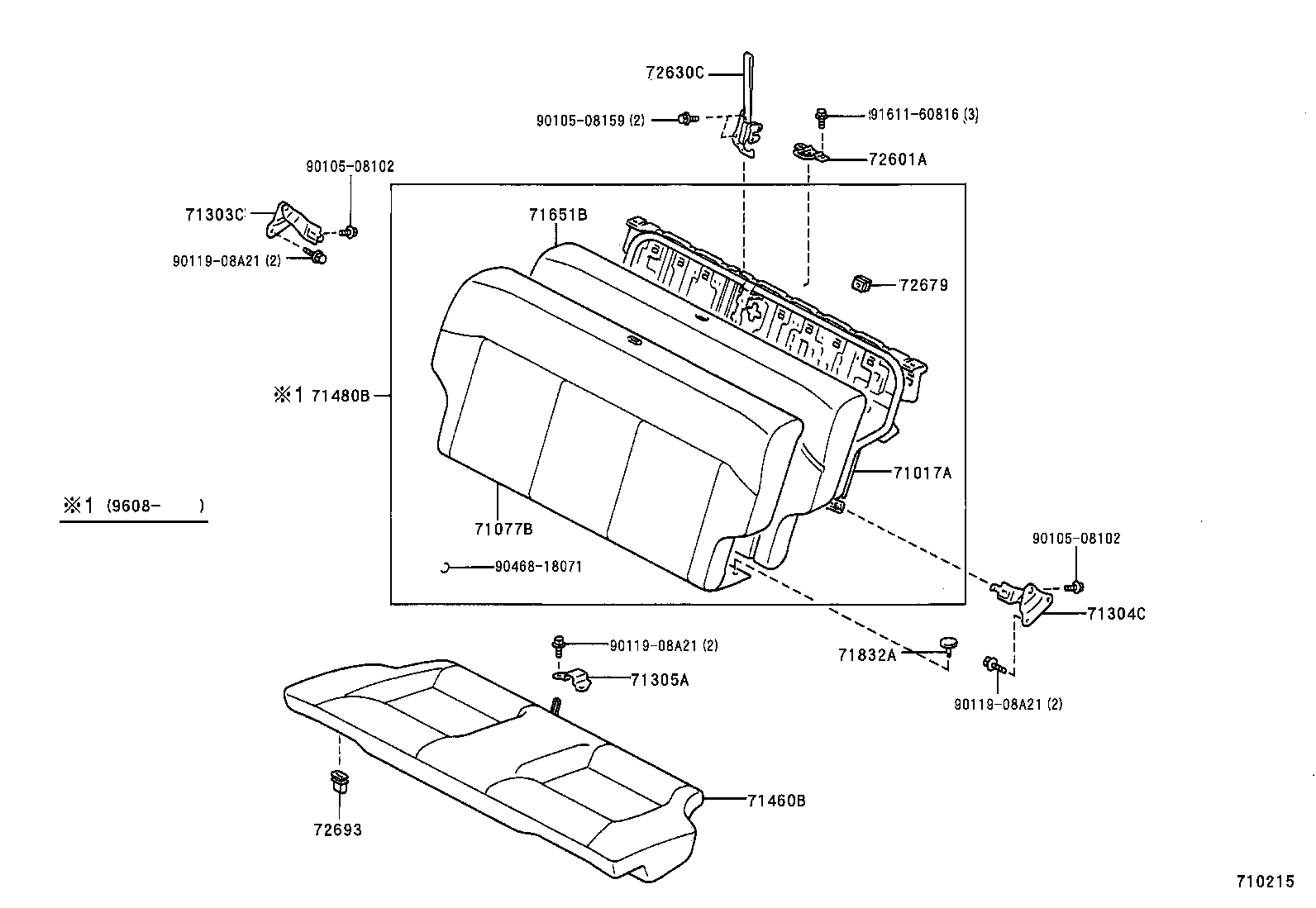

Click highlighted areas on diagram

diagram 71017A 71077B 71303C 71304C 71305A 71460B 71480B 71651B 71832A 72601A 72630C 72679 72693 9010508102 9010508102 9010508159 9011908A21 9011908A21 9011908A21 9046818071 9161160816
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-16250

EL54..CP

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G840B0

EL54..ARL,GEN

GRAY,TRIM1#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-16060

EL54..CP

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-16040

EL54..CP

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71343-16090

EL54..CP

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G110B0

EL54..ARL,GEN

GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1S040B0

EL54..ARL,GEN

GRAY,TRIM1#

 1
71480-1S041B0

EL54..ARL,GEN

GRAY,TRIM1#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-16370

EL54..CP

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-07026C0

EL54

BLACK,TRIM1#

 3
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-16090

EL54..CP

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-16212B0

EL54

BLUISH GRAY,TRIM1

 1
72630-16211B0

EL54

BLUISH GRAY,TRIM1#

 1
72630-16210B0

EL54

BLUISH GRAY,TRIM1#

 1
72630-16213B0

EL54..CP

BLUISH GRAY,TRIM1#

 1
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-16020C0

EL54..CP

BLACK,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL54

 2
Common parts
90105-08102
90105-08159
90119-08A21
90468-18071
91611-60816

(9508- )CP

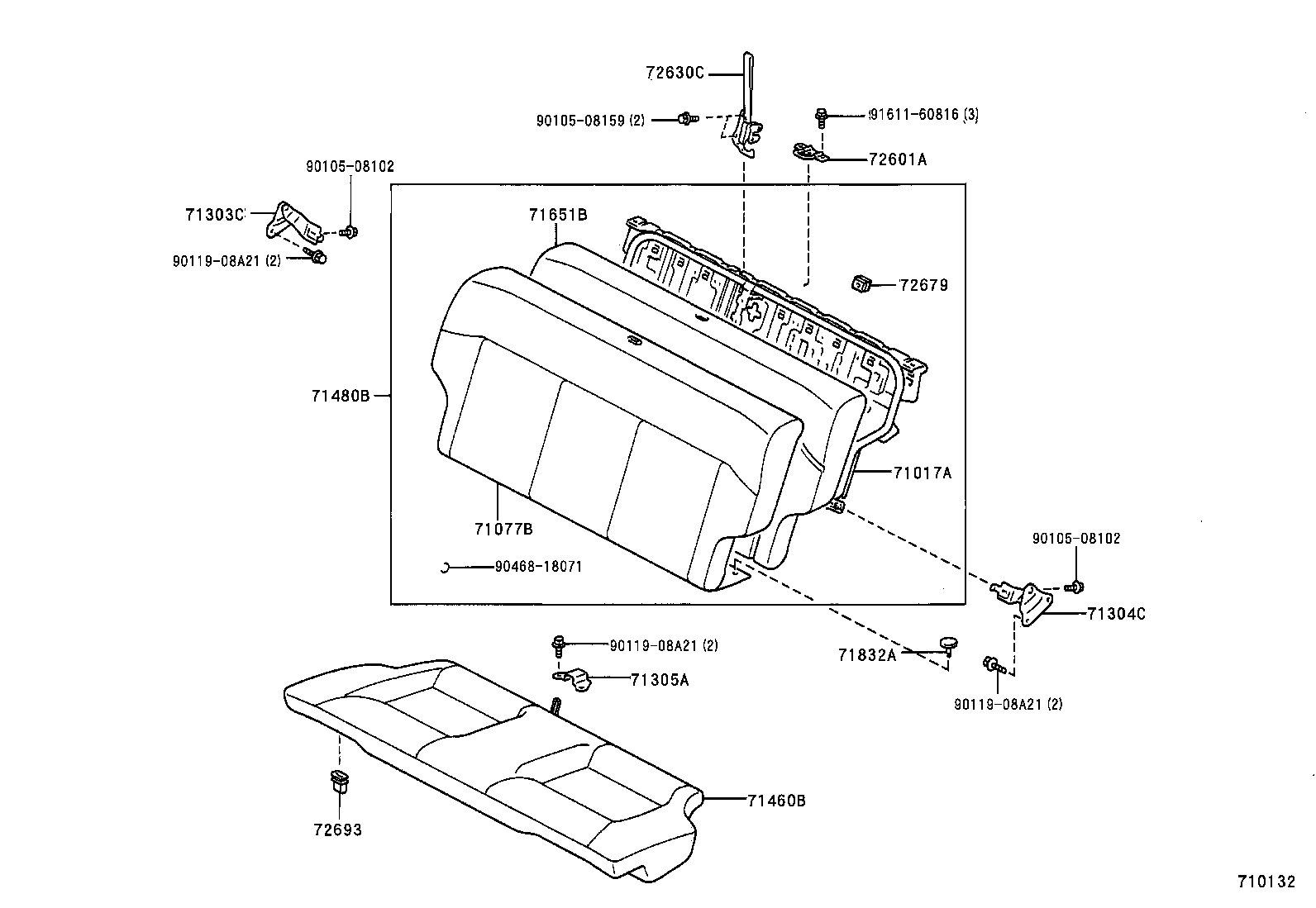

Click highlighted areas on diagram

diagram 71017A 71077B 71303C 71304C 71305A 71460B 71480B 71651B 71832A 72601A 72630C 72679 72693 9010508102 9010508102 9010508159 9011908A21 9011908A21 9011908A21 9046818071 9161160816
Part # Description Qty Price
Common parts
90105-08102
90105-08159
90119-08A21
90468-18071
91611-60816
