EL44L-DCPSKK (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )

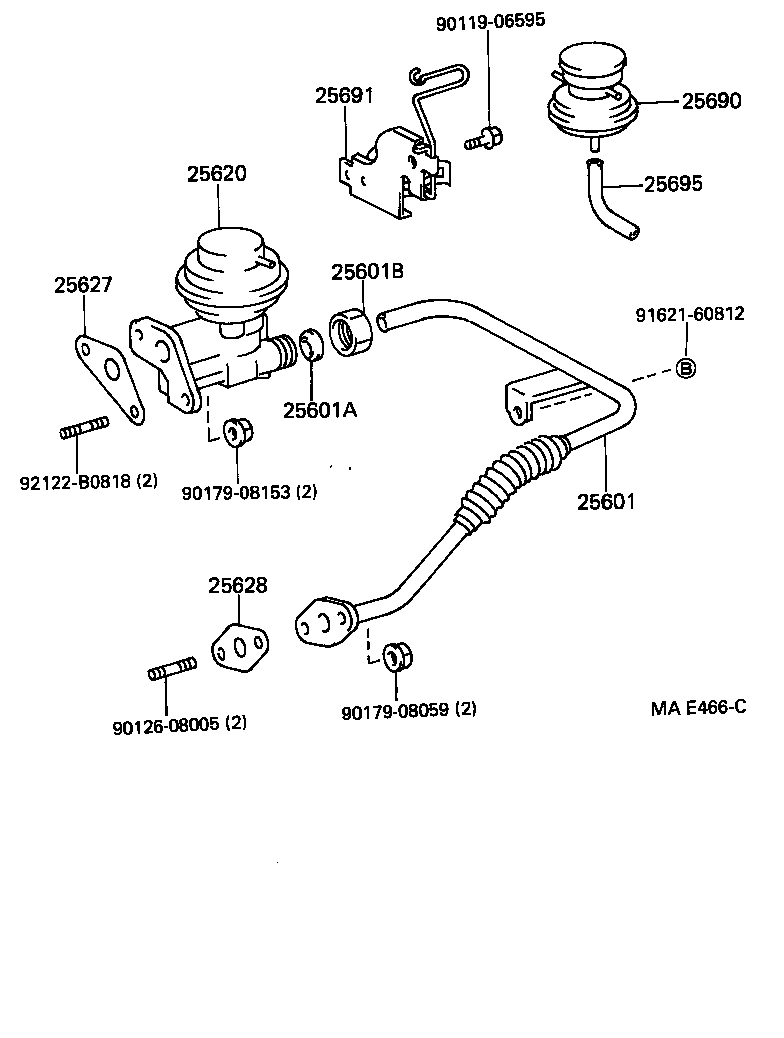

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25627 25628 25690 25691 25695 9011906595 9012608005 9017908059 9017908153 9162160812 92122B0818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11040

5EFE..EL44..ATM

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14005

5EFE..EL44..ATM

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22076

5EFE..EL44..ATM

 1
90402-22015

5EFE..EL44..ATM

 1
90402-22076

5EFE..EL44..ATM

 1
25620 - VALVE ASSY, EGR
25620-11130

5EFE..EL44..ATM

 1
25627 - GASKET, EGR VALVE
25627-11040

5EFE..EL44..ATM

 1
25628 - GASKET, EGR INLET
25628-11020

5EFE..EL44..ATM

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-11080

5EFE..EL44..ATM

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-11050

5EFE..EL44..ATM

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-11010

5EFE..EL44..ATM

 1
Common parts
90119-06595
90126-08005
90179-08059
90179-08153
91621-60812
92122-B0818

(9409- )

Click highlighted areas on diagram

CALIFORNIA SPEC

diagram 25601 25601A 25601B 25620 25627 25627 25690 25691 9012608008 9017908059 9017908153 9044511049 9162160610 92122B0818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11040

5EFE..EL44..ATM

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14005

5EFE..EL44..ATM

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22076

5EFE..EL44..ATM

 1
90402-22015

5EFE..EL44..ATM

 1
90402-22076

5EFE..EL44..ATM

 1
25620 - VALVE ASSY, EGR
25620-11130

5EFE..EL44..ATM

 1
25627 - GASKET, EGR VALVE
25627-11040

5EFE..EL44..ATM

 1
25627 - GASKET, EGR VALVE
25627-11040

5EFE..EL44..ATM

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-11080

5EFE..EL44..ATM

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-11050

5EFE..EL44..ATM

 1
Common parts
90126-08008
90179-08059
90179-08153
90445-11049
91621-60610
92122-B0818
