EL44L-DCPSKK (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

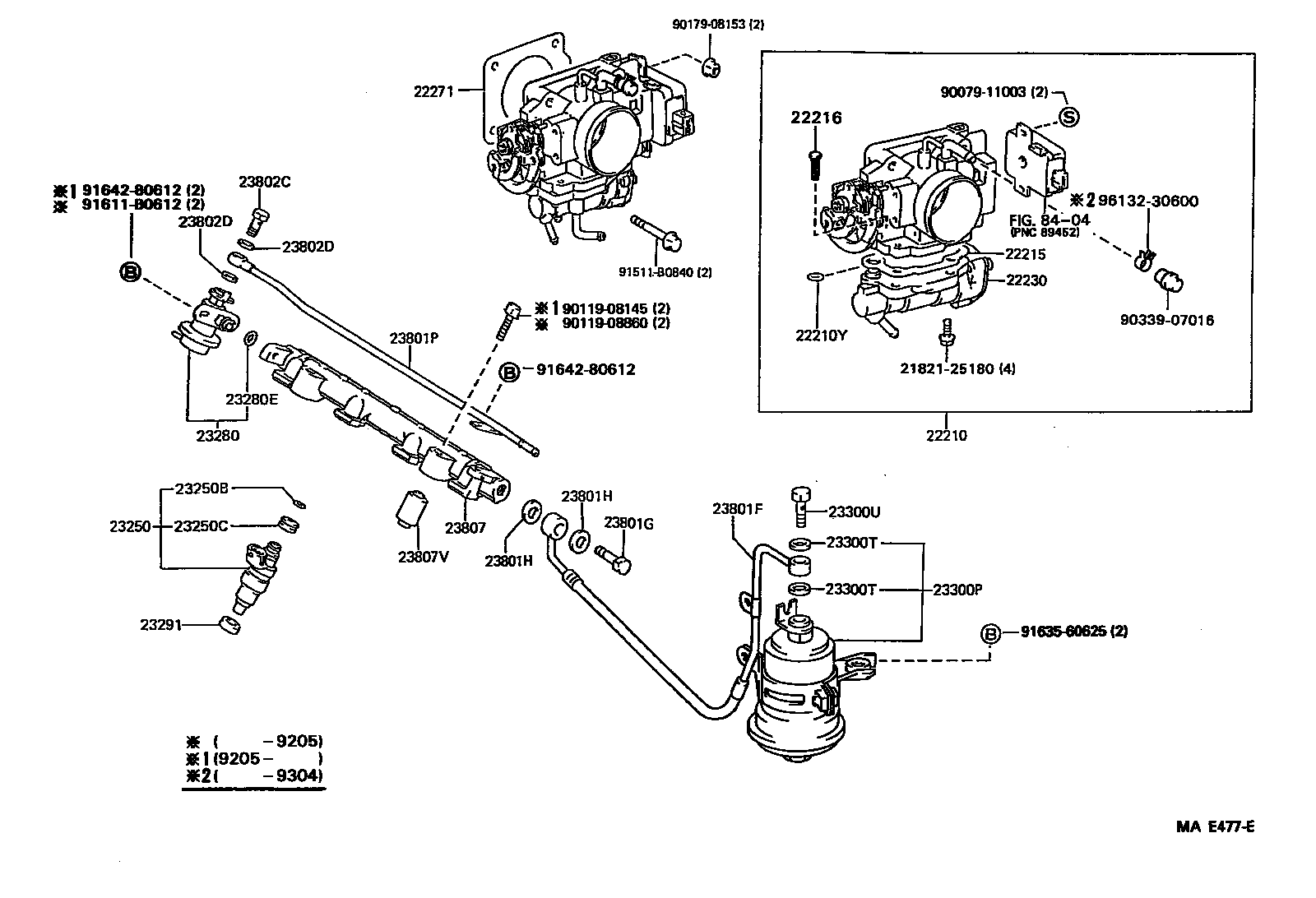

ILLUST NO. 1 OF 2(9104- )

Click highlighted areas on diagram

diagram 2182125180 22210 22210Y 22215 22216 22230 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23801F 23801G 23801H 23801H 23801P 23802C 23802D 23802D 23807 23807V 8404 9007911003 9011908145 9011908860 9017908153 9033907016 91511B0840 91611B0612 9163560625 9164280612 9164280612 9613230600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-11250

5EFE..EL44..ATM

 1
22210Y - RING, O(FOR AIR TUBE)
96711-19009

5EFE..EL44

 1
22215 - GASKET, THROTTLE BODY COVER
22215-11110

5EFE..EL44

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74311

5EFE..EL44..ATM

 1
90079-13010

5EFE..EL44..ATM

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-11140

5EFE..EL44..ATM

 1
22271 - GASKET, THROTTLE BODY
22271-11020

5EFE..EL44

 1
22271-11030

5EFE..EL44

 1
23250 - INJECTOR ASSY, FUEL
23209-11100

5EFE..EL44

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5EFE..EL44

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

5EFE..EL44

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11070

5EFE..EL44

 1
23280-11060

5EFE..EL44

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

5EFE..EL44

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

5EFE..EL44

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19355

5EFE..EL44..CND

CHILE SPEC

 1
23300-19355

5EFE..EL44..CND

CHILE OR BRAZIL SPEC

 1
23300-19265

5EFE..EL44

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

5EFE..EL44

 2
90430-12026

5EFE..EL44

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

5EFE..EL44

 2
90430-12026

5EFE..EL44

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

5EFE..EL44

 1
23801F - HOSE, FUEL, NO.1
23271-11170

5EFE..EL44

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

5EFE..EL44

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

5EFE..EL44

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

5EFE..EL44

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11050

5EFE..EL44

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004

5EFE..EL44

 1
90401-08010

5EFE..EL44

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014

5EFE..EL44

 2
90430-08005

5EFE..EL44

 2
90430-08012

5EFE..EL44

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014

5EFE..EL44

 2
90430-08005

5EFE..EL44

 2
90430-08012

5EFE..EL44

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11060

5EFE..EL44

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23890-11010

5EFE..EL44

 2
Common parts
21821-25180
90079-11003
90119-08145
90119-08860
90179-08153
90339-07016
91511-B0840
91611-B0612
91635-60625
91642-80612
96132-30600
Linked diagrams
8404

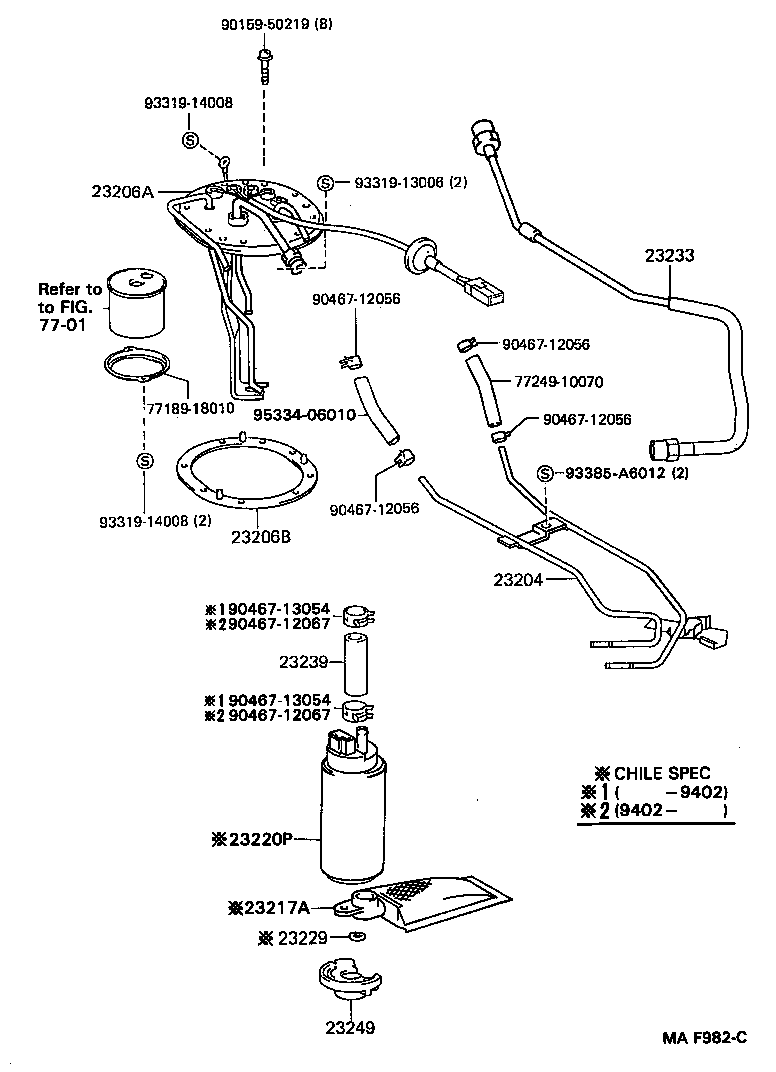

ILLUST NO. 2 OF 2(9104- )

Click highlighted areas on diagram

diagram 23204 23206A 23206B 23217A 23220P 23229 23233 23239 23249 7701 7718918010 7724910070 9015950219 9046712056 9046712056 9046712056 9046712056 9046712067 9046712067 9046713054 9046713054 9331913006 9331914008 9331914008 93385A6012 9533406010
Part # Description Qty Price
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-11140

5EFE..EL44

 1
23206A - BRACKET, FUEL PUMP
23206-11160

5EFE..EL44

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-16030

5EFE..EL44

 1
23217A - FILTER, FUEL PUMP
23217-11020

5EFE..EL44

 1
23217-16490

5EFE..EL44..CND

CHILE SPEC

 1
23217-74021

5EFE..EL44..CND

CHILE SPEC

 1
23217-74030

5EFE..EL44

 1
23217-74021

5EFE..EL44..CND

CHILE OR BRAZIL SPEC

 1
23220P - PUMP ASSY, FUEL
23221-46010

5EFE..EL44

 1
23221-16490

5EFE..EL44..CND

CHILE SPEC

 1
23221-16490

5EFE..EL44..CND

CHILE OR BRAZIL SPEC

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

5EFE..EL44

 1
23233 - HOSE, FUEL PUMP
23091-11050

5EFE..EL44..CND

CHILE SPEC

 1
23091-11050

5EFE..EL44

 1
23091-11040

5EFE..EL44

 1
23239 - HOSE
23239-11010

5EFE..EL44

 1
23239-63010

5EFE..EL44

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

5EFE..EL44

 1
Common parts
77189-18010
77249-10070
90159-50219
90467-12056
90467-12067
90467-13054
93319-13006
93319-14008
93385-A6012
95334-06010
Linked diagrams
7701

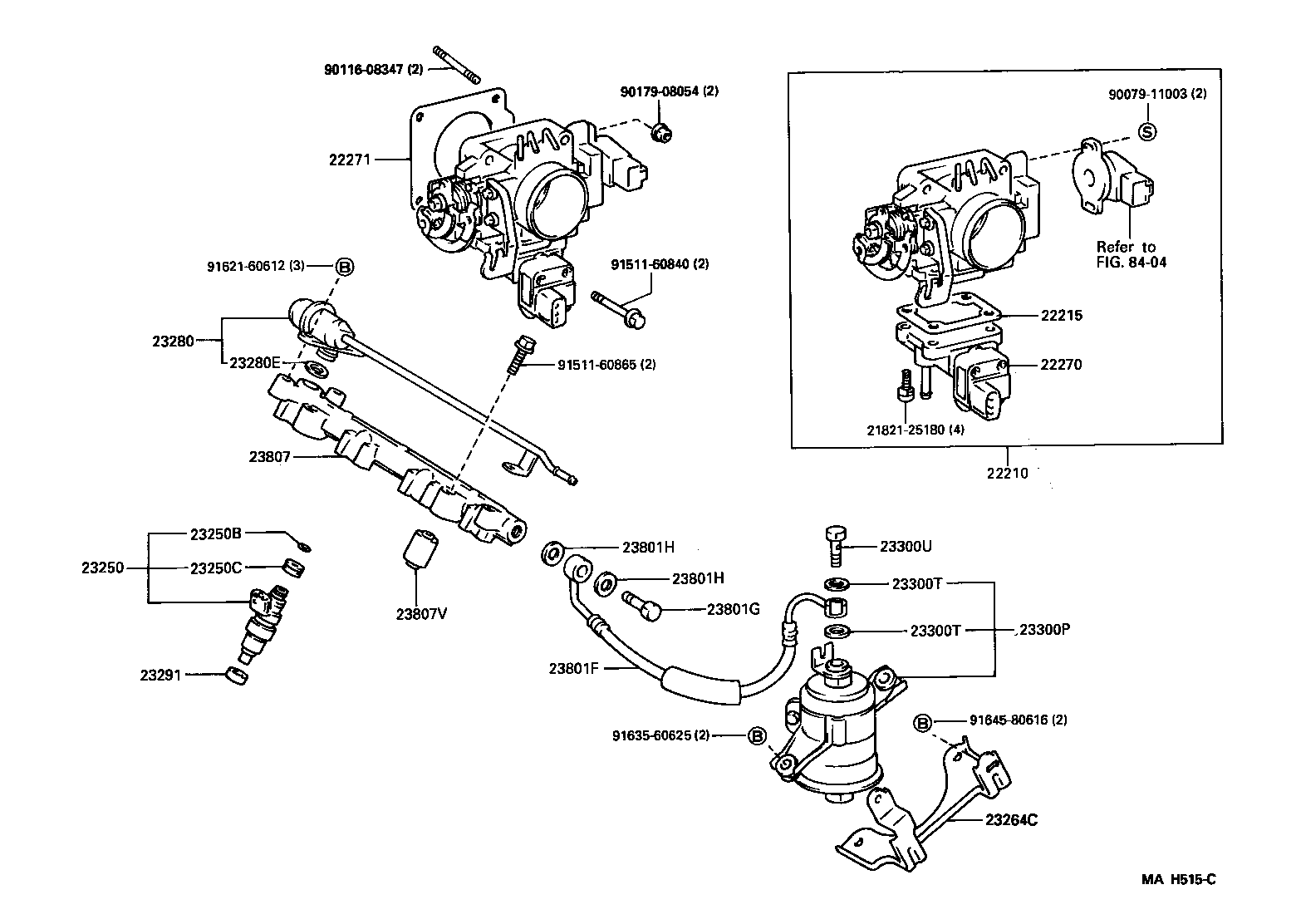

(9409- )

Click highlighted areas on diagram

CALIFORNIA SPEC

diagram 2182125180 22210 22215 22270 22271 23250 23250B 23250C 23264C 23280 23280E 23291 23300P 23300T 23300T 23300U 23801F 23801G 23801H 23801H 23807 23807V 8404 9007911003 9011608347 9017908054 9151160840 9151160865 9162160612 9163560625 9164580616
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-11250

5EFE..EL44..ATM

 1
22215 - GASKET, THROTTLE BODY COVER
22215-11110

5EFE..EL44

 1
22271 - GASKET, THROTTLE BODY
22271-11020

5EFE..EL44

 1
22271-11030

5EFE..EL44

 1
23250 - INJECTOR ASSY, FUEL
23209-11100

5EFE..EL44

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5EFE..EL44

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

5EFE..EL44

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11070

5EFE..EL44

 1
23280-11060

5EFE..EL44

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

5EFE..EL44

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

5EFE..EL44

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19355

5EFE..EL44..CND

CHILE SPEC

 1
23300-19355

5EFE..EL44..CND

CHILE OR BRAZIL SPEC

 1
23300-19265

5EFE..EL44

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

5EFE..EL44

 2
90430-12026

5EFE..EL44

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

5EFE..EL44

 2
90430-12026

5EFE..EL44

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

5EFE..EL44

 1
23801F - HOSE, FUEL, NO.1
23271-11170

5EFE..EL44

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

5EFE..EL44

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

5EFE..EL44

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

5EFE..EL44

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11060

5EFE..EL44

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23890-11010

5EFE..EL44

 2
Common parts
21821-25180
90079-11003
90116-08347
90179-08054
91511-60840
91511-60865
91621-60612
91635-60625
91645-80616
Linked diagrams
8404
