EL44L-DCMSKK (1991)
Toyota Paseo
Production
Apr 1991
-
Aug 1995
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9104- )

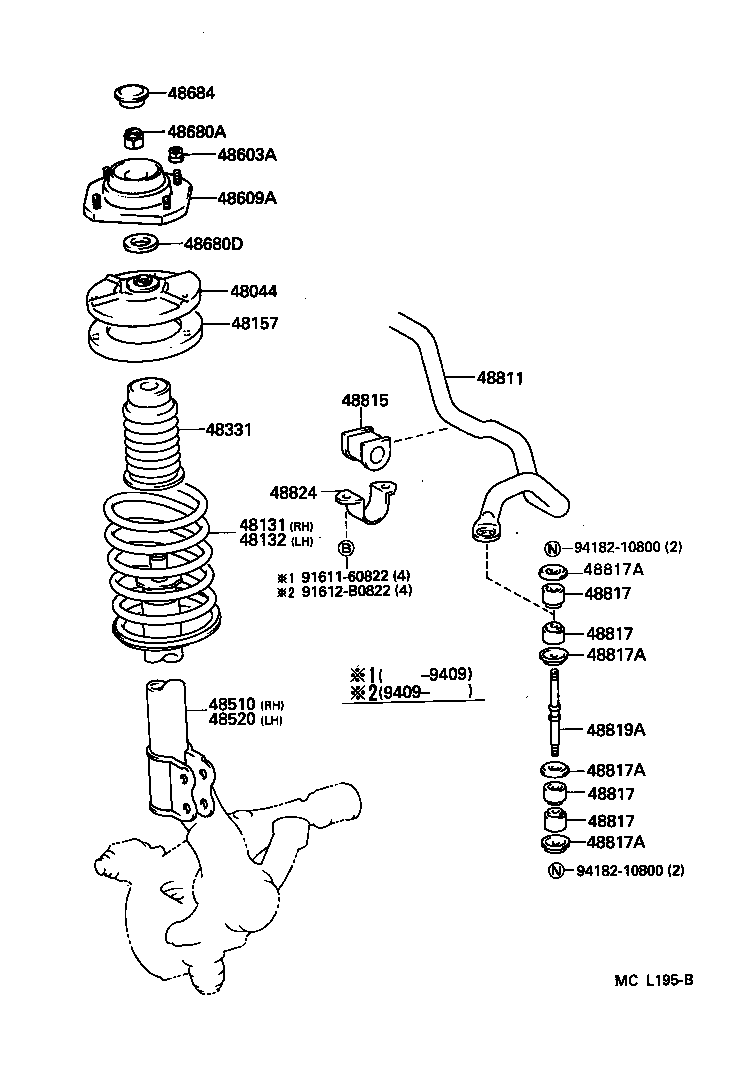

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-16030 |
EL44 |
2 | ||
| 48044-10030 |
EL44 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-16530 |
EL44..MTM |
1 | ||
| 48131-1G240 |
EL44..MTM W(AIR CONDITIONER) |
1 | ||
| 48131-1G420 |
EL44..MTM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1G240 |
EL44..MTM W(AIR CONDITIONER) |
1 | ||
| 48131-1G420 |
EL44..MTM |
1 | ||
| 48131-16530 |
EL44..MTM |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-16040 |
EL44 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-16060 |
EL44 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-16370 |
EL44 |
1 | ||
| 48510-19405 |
EL44 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-19125 |
EL44 |
1 | ||
| 48520-16150 |
EL44 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08206 |
EL44 |
8 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-16160 |
EL44 |
2 | ||
| 48609-16260 |
EL44 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EL44 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
EL44 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
EL44 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-16220 |
EL44 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14130 |
EL44 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10020 |
EL44 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10020 |
EL44 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10020 |
EL44 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10020 |
EL44 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
EL44 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
EL44 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
EL44 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
EL44 |
8 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-10010 |
EL44 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-20040 |
EL44 |
2 | ||
| Common parts | ||||
| 91611-60822 | ||||
| 91612-B0822 | ||||
| 94182-10800 | ||||
