EL44L-DCMSKA (1991)
Toyota Paseo
ILLUST NO. 1 OF 2(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL44 12V 1.2W W/O SOCKET |
9 | ||
| 83109-30070 |
EL44..USA 14V 2.0W,W/O SOCKET |
1 | ||
| 83109-30070 |
EL44 14V 2.0W,W/O SOCKET |
1 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EL44 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
7 | ||
| 83109-30070 |
EL44..USA 14V 2.0W,W/O SOCKET |
2 | ||
| 83101-20080 |
EL44 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
EL44 14V 3.0W |
1 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL44 12V 1.2W W/O SOCKET |
9 | ||
| 83109-30070 |
EL44..USA 14V 2.0W,W/O SOCKET |
1 | ||
| 83109-30070 |
EL44 14V 2.0W,W/O SOCKET |
1 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EL44 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
7 | ||
| 83109-30070 |
EL44..USA 14V 2.0W,W/O SOCKET |
2 | ||
| 83101-20080 |
EL44 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
EL44 14V 3.0W |
1 | ||
| 90981-11018 |
EL44..USA 12V 1.2W W/O SOCKET |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL44 12V 1.4W |
9 | ||
| 83101-14030 |
EL44 12V 3.4W,AMBER CAP |
4 | ||
| 83101-14040 |
EL44..USA 12V 1.2W,14V 2.0W |
9 | ||
| 83101-32020 |
EL44..USA 14V 3.0W |
1 | ||
| 83101-14030 |
EL44..USA 12V 3.4W,GREEN CAP |
4 | ||
| 83101-32020 |
EL44..USA 14V 3.0W |
1 | ||
| 83101-14040 |
EL44..USA 12V 1.4W OR 14V 2.0W |
9 | ||
| 83101-32020 |
EL44..USA 12V 3.0W,GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL44 12V 1.4W |
9 | ||
| 83101-14030 |
EL44 12V 3.4W,AMBER CAP |
4 | ||
| 83101-14040 |
EL44..USA 12V 1.2W,14V 2.0W |
9 | ||
| 83101-32020 |
EL44..USA 14V 3.0W |
1 | ||
| 83101-14030 |
EL44..USA 12V 3.4W,GREEN CAP |
4 | ||
| 83101-32020 |
EL44..USA 14V 3.0W |
1 | ||
| 83101-14040 |
EL44..USA 12V 1.4W OR 14V 2.0W |
9 | ||
| 83101-32020 |
EL44..USA 12V 3.0W,GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G320 |
EL44..USA |
1 | ||
| 83110-1G321 |
EL44..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1G570 |
EL44..USA |
1 | ||
| 83132-1G750 |
EL44..USA |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1G270 |
EL44 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-16610 |
EL44 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16870 |
EL44..MTM..USA |
1 | ||
| 83242-16890 |
EL44..MTM..USA PUERTORICO SPEC |
1 | ||
| 83242-1G110 |
EL44..MTM..USA |
1 | ||
| 83242-1G550 |
EL44..MTM..USA CALIFORNIA SPEC |
1 | ||
| 83242-1G150 |
EL44..MTM..USA PUERTORICO SPEC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1G110 |
EL44 |
1 | ||
| 83243-1G110 |
EL44..MTM..USA |
1 | ||
| 83243-1G110 |
EL44 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-16630 |
EL44 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-16350 |
EL44..MTM |
1 | ||
| 83149-16470 |
EL44..MTM..USA PUERTORICO SPEC |
1 | ||
| 83149-16650 |
EL44..MTM..USA |
1 | ||
| 83149-16690 |
EL44..MTM..USA PUERTORICO SPEC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-1617022 |
EL44 BLACK,TRIM2# |
1 | ||
| 83910-16170W4 |
EL44 EISEN BLUE,TRIM8# |
1 | ||
| 83910-1617004 |
EL44 GRAISH BLUE,TRIM8# |
1 | ||
| 83910-1617001 |
EL44 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00223 | ||||
| 90099-00248 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 90167-50028 | ||||
| 93540-14020 | ||||

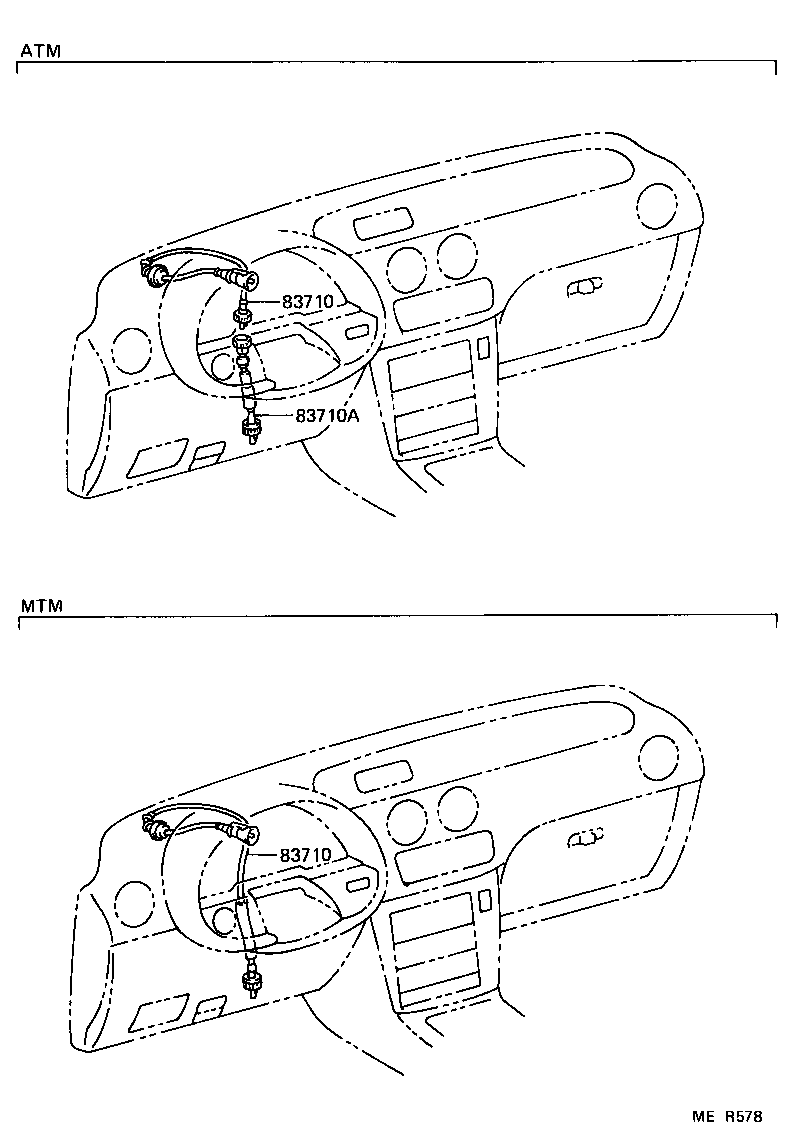

ILLUST NO. 2 OF 2(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16310 |
EL44..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16310 |
EL44..MTM |
1 | ||
