EL44L-DCMSKA (1991)
Toyota Paseo
Production
Apr 1991
-
Aug 1995
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9104- )

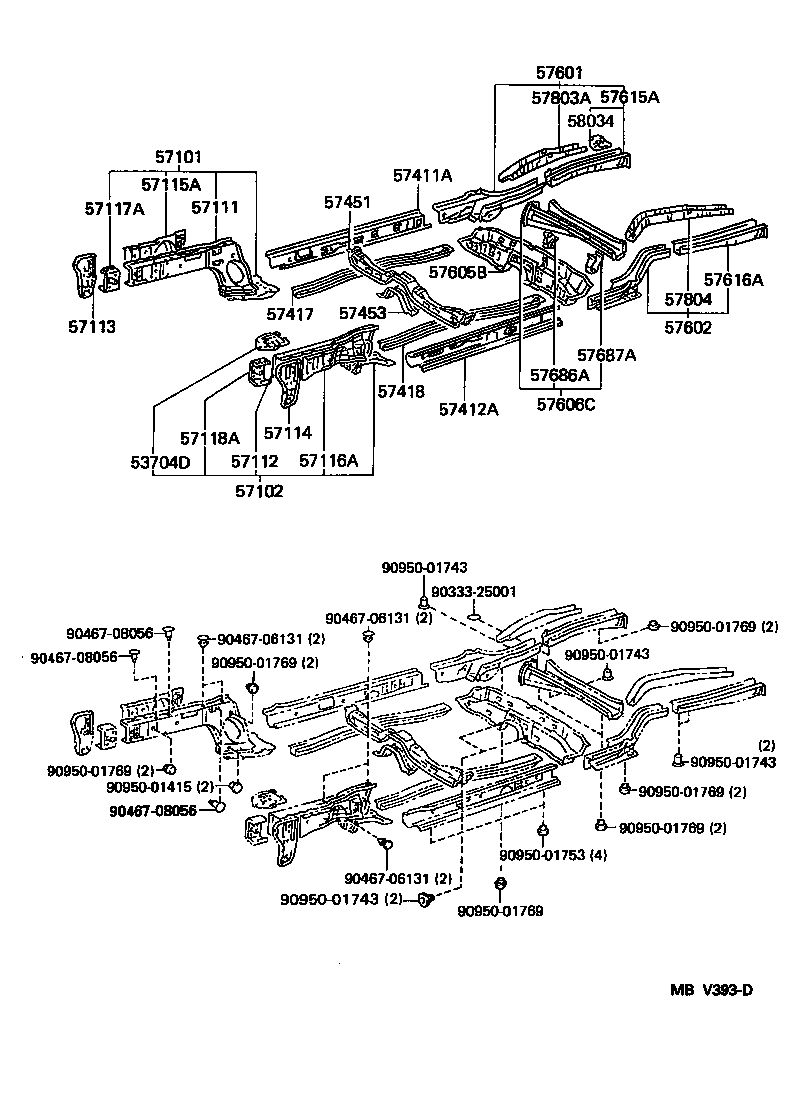

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-16020 |
EL44 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-16200 |
EL44 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-16190 |
EL44 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-16130 |
EL44 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-16110 |
EL44 |
1 | ||
| 57112-16150 |
EL44 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-16060 |
EL44 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-16060 |
EL44 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-16080 |
EL44 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-16080 |
EL44 |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-16070 |
EL44 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-16070 |
EL44 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-16170 |
EL44..USA |
1 | ||
| 57401-16170 |
EL44..USA |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-16170 |
EL44..USA |
1 | ||
| 57402-16180 |
EL44 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-16010 |
EL44 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-16010 |
EL44 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-16030 |
EL44 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-10021 |
EL44 |
1 | ||
| 57453-10020 |
EL44 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-16290 |
EL44..USA CALIFORNIA SPEC |
1 | ||
| 57601-16230 |
EL44 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-16220 |
EL44 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-16050 |
EL44 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-16110 |
EL44..USA CALIFORNIA SPEC |
1 | ||
| 57606-16080 |
EL44 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-16913 |
EL44 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-16909 |
EL44 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-16030 |
EL44 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16020 |
EL44 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-16030 |
EL44 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-16050 |
EL44 |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-10010 |
EL44 |
1 | ||
| 58034-16030 |
EL44..USA CALIFORNIA SPEC |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90467-06131 | ||||
| 90467-08056 | ||||
| 90950-01415 | ||||
| 90950-01743 | ||||
| 90950-01753 | ||||
| 90950-01769 | ||||
