ZZW30R-AKGQHW (2000)
Toyota Mr2
Production
Aug 2000
-
Aug 2002
Engine
1ZZFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)

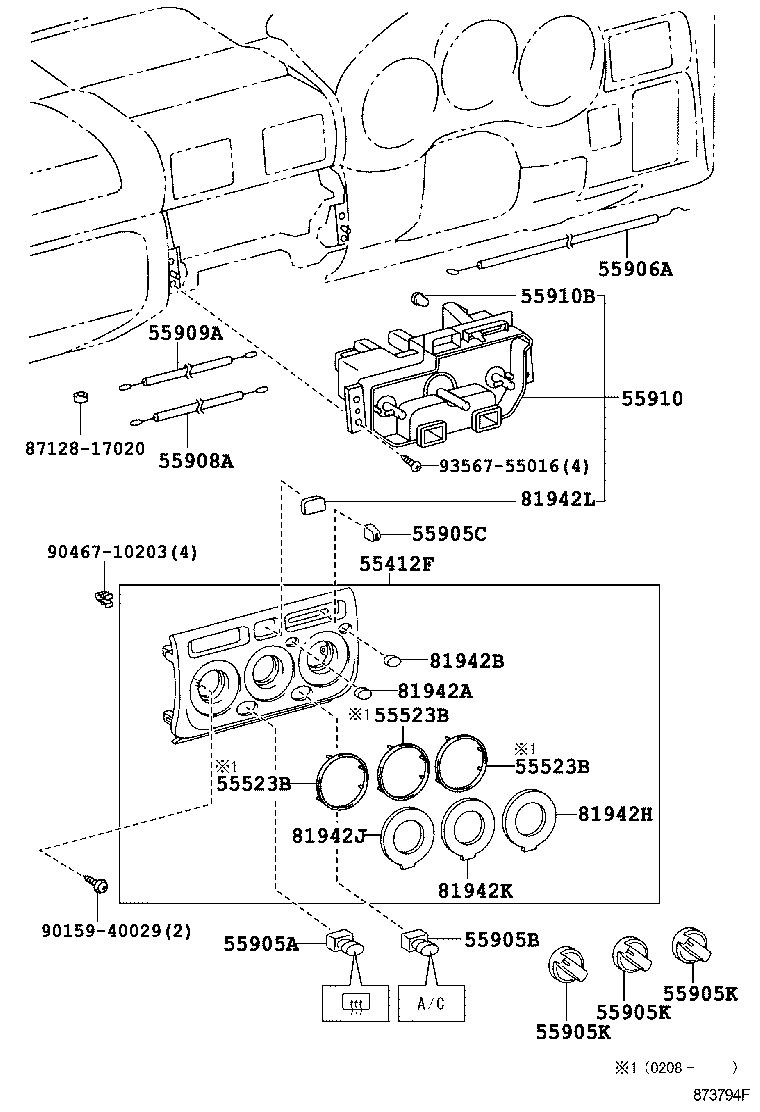

ILLUST NO. 1 OF 3(9912-0509)RHD
Click highlighted areas on diagram
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-17130C0 |
ZZW30..RHD W(AIR CONDITIONER),BLACK,TRIM2#,3#,5# |
1 | ||
| 55412-17110C0 |
ZZW30..RHD BLACK,TRIM2#,3#,5# |
1 | ||
| 55412-17131C0 |
ZZW30..RHD W(AIR CONDITIONER),BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 55412-17111C0 |
ZZW30..RHD BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-17060 |
ZZW30 |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-17070 |
ZZW30 |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2B040 |
ZZW30 |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-17080 |
ZZW30 |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-17080 |
ZZW30 |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-17080 |
ZZW30 |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-17030 |
ZZW30..RHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-17030 |
ZZW30..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-17090 |
ZZW30 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-17090 |
ZZW30..RHD |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-05124 |
ZZW30 |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-17070 |
ZZW30 |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-17080 |
ZZW30 |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-17090 |
ZZW30..RHD |
1 | ||
| 81942-17091 |
ZZW30..RHD |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-17101 |
ZZW30..RHD |
1 | ||
| 81942-17100 |
ZZW30..RHD |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-17130 |
ZZW30 |
1 | ||
| 81942-17131 |
ZZW30 |
1 | ||
| 81942L - SHEET, HEATER CONTROL NAME, NO.6 | ||||
| 81942-17050 |
ZZW30 |
1 | ||
| Common parts | ||||
| 87128-17020 | ||||
| 90159-40029 | ||||
| 90467-10203 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 3(9912-0509)
Click highlighted areas on diagram
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-17010 |
ZZW30..RHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-17050 |
ZZW30 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-17040 |
ZZW30 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55871-17020 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90467-06175 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 3(9912-0509)
Click highlighted areas on diagram
DUCT--W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-16140 |
ZZW30 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-17050 |
ZZW30..RHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-17050 |
ZZW30..RHD |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90159-60437 | ||||
| 90179-06314 | ||||
