AW11R-WCMQFQ (1987)

Toyota Mr2

Production Aug 1987 - Dec 1989
Engine 4AGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

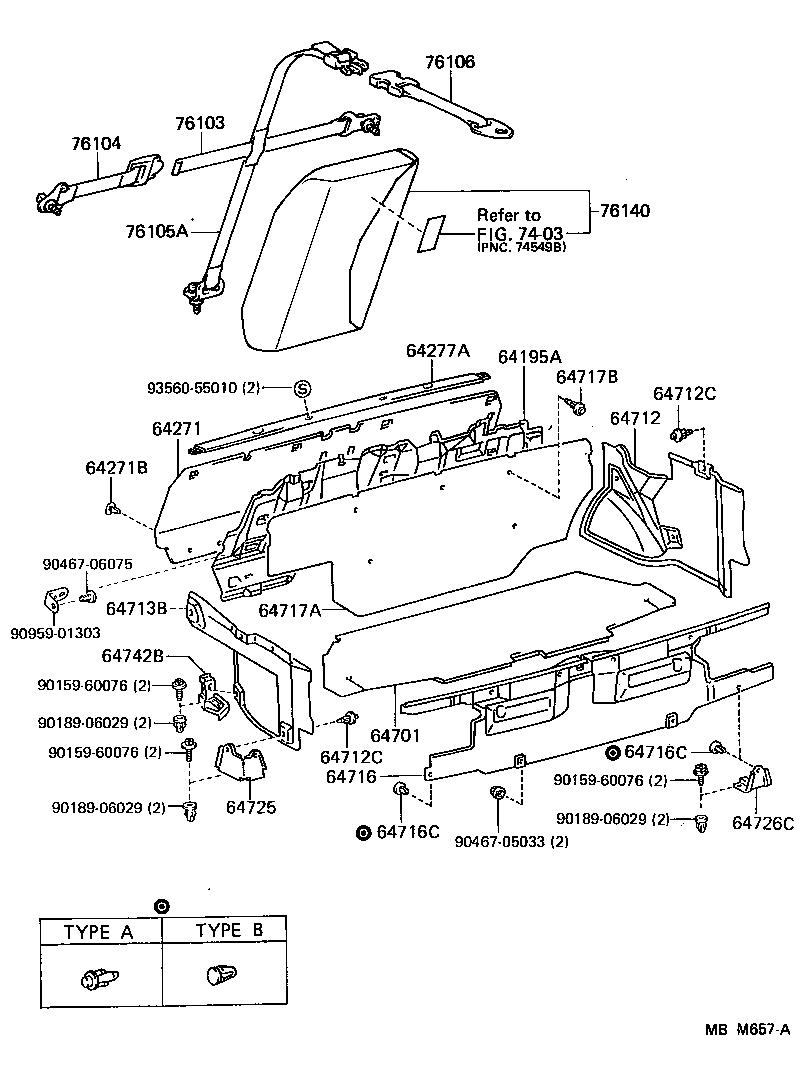

ILLUST NO. 2 OF 2(8708- )ARL

Click highlighted areas on diagram

diagram 64195A 64271 64271B 64277A 64701 64712 64712C 64712C 64713B 64716 64716C 64716C 64717A 64717B 64725 64726C 64742B 7403 76103 76104 76105A 76106 76140 9015960076 9015960076 9015960076 9018906029 9018906029 9018906029 9046705033 9046706075 9095901303 9356055010
Part # Description Qty Price
64195A - INSULATOR, ROOM PARTITION PANEL
64195-17010

AW11

 1
64271 - BOARD, ROOM PARTITION, NO.1
64270-1708001

AW11..RHD

W/RR CONSOLE,CUT PILE CARPET,BLACK,BLACK,TRIM2#

 1
64270-1702001

AW11..RHD

W/RR CONSOLE,BLACK,BLACK,TRIM2#

 1
64270-1708004

AW11..ARL

W(SPORTS SEAT),DARK BLUE,TRIM8#

 1
64270-1702001

AW11..ARL

BLACK,TRIM2#

 1
64270-1702004

AW11..ARL

DARK BLUE,TRIM8#

 1
64270-1708001

AW11..ARL

W(SPORTS SEAT),BLACK,TRIM2#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-09008

AW11

BLACK

 4
90467-0900811

AW11

BLACK,TRIM2#

 4
90467-0900804

AW11

DARK BLUE,TRIM8#

 4
90467-0900801

AW11

BLACK,TRIM2#,4#,8#

 4
64277A - MOULDING, ROOM PARTITION TRIM
64277-1701111

AW11..RHD

BLACK,TRIM2#

 1
64277-1701101

AW11..RHD

BLACK,TRIM2#

 1
64277-1701104

AW11..RHD

DARK BLUE,TRIM8#

 1
64277-1701001

AW11..RHD

BLACK,BLACK,TRIM2#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-17021

AW11

NEEDLE PUNCH

 1
64711-17031

AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN

VINYL CHLORIDE

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-17020

AW11

NEEDLE PUNCH

 1
64712-17010

AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN

VINYL CHLORIDE

 1
64712-1705003

AW11

GRAY,TRIM2#,4#,8#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-0704113

AW11

GRAY,TRIM2#,4#,8#

 7
90467-0704113

AW11

GRAY,GRAY

 2
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-0704113

AW11

GRAY,TRIM2#,4#,8#

 7
90467-0704113

AW11

GRAY,GRAY

 2
64713B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-1705003

AW11

GRAY,TRIM2#,4#,8#

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-1706003

AW11..ARL

GRAY,TRIM2#,8#

 1
64716-17030

AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN

VINYL CHLORIDE

 1
64716-1706003

AW11..ARL

GRAY,GRAY

 1
64716-17040

AW11

NEEDLE PUNCH

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0704113

AW11

GRAY,TRIM2#,4#,8#,TYPE A

 2
90467-10032

AW11

TYPE B

 6
90467-10032

AW11

TYPE B

 7
90467-0704113

AW11

TYPE A,GRAY,GRAY

 2
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0704113

AW11

GRAY,TRIM2#,4#,8#,TYPE A

 2
90467-10032

AW11

TYPE B

 6
90467-10032

AW11

TYPE B

 7
90467-0704113

AW11

TYPE A,GRAY,GRAY

 2
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-17011

AW11..RHD;AW11..LHD..EUG;AW11..LHD..GEN

VINYL CHLORIDE

 1
64717-17021

AW11

NEEDLE PUNCH

 1
64717-1704003

AW11..EUG;AW11..ARL

GRAY,TRIM2#,8#

 1
64717-1704003

AW11

GRAY,TRIM2#,8#

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-0704113

AW11

GRAY,TRIM2#,4#,8#

 5
90467-0704113

AW11

GRAY,GRAY

 5
76103 - BELT SUB-ASSY, ROOF GLASS BAG, INNER
76103-1702004

AW11..ARL

BLUE,DARK BLUE,TRIM8#

 1
76103-1702001

AW11..ARL

BLACK,BLACK,TRIM2#

 1
76103-1702001

AW11..ARL

BLACK,TRIM2#

 1
76103-1702004

AW11..ARL

DARK BLUE,TRIM8#

 1
76104 - BELT SUB-ASSY, ROOF GLASS BAG, OUTER
76104-1701004

AW11..ARL

BLUE,DARK BLUE,TRIM8#

 1
76104-1701001

AW11..ARL

BLACK,BLACK,TRIM2#

 1
76104-1701004

AW11..ARL

DARK BLUE,TRIM8#

 1
76104-1701011

AW11..ARL

BLACK,TRIM2#

 1
76104-1701001

AW11..ARL

BLACK,TRIM2#

 1
76105A - BELT SUB-ASSY, ROOF GLASS BAG, LOWER
76105-1702001

AW11..ARL

BLACK,BLACK,TRIM2#

 1
76105-1702001

AW11..ARL

BLACK,TRIM2#

 1
76105-1702004

AW11..ARL

DARK BLUE,TRIM8#

 1
76105-1702004

AW11..ARL

BLUE,DARK BLUE,TRIM8#

 1
76106 - BELT SUB-ASSY, GLASS ROOF BAG, UPPER
76106-1701004

AW11..ARL

BLUE,DARK BLUE,TRIM8#

 1
76106-1701004

AW11..ARL

DARK BLUE,TRIM8#

 1
76106-1701001

AW11..ARL

BLACK,BLACK,TRIM2#

 1
76106-1701001

AW11..ARL

BLACK,TRIM2#

 1
76140 - BAG ASSY, ROOF GLASS, LH
76140-1703004

AW11..ARL

BLUE,DARK BLUE,TRIM8#

 1
76140-1703001

AW11..ARL

BLACK,BLACK,TRIM2#

 1
76140-1703001

AW11..ARL

BLACK,TRIM2#

 1
76140-1703004

AW11..ARL

DARK BLUE,TRIM8#

 1
Common parts
90159-60076
90189-06029
90467-05033
90467-06075
90959-01303
93560-55010
Linked diagrams
7403
