AW11L-WJPQFA (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4FC..GT

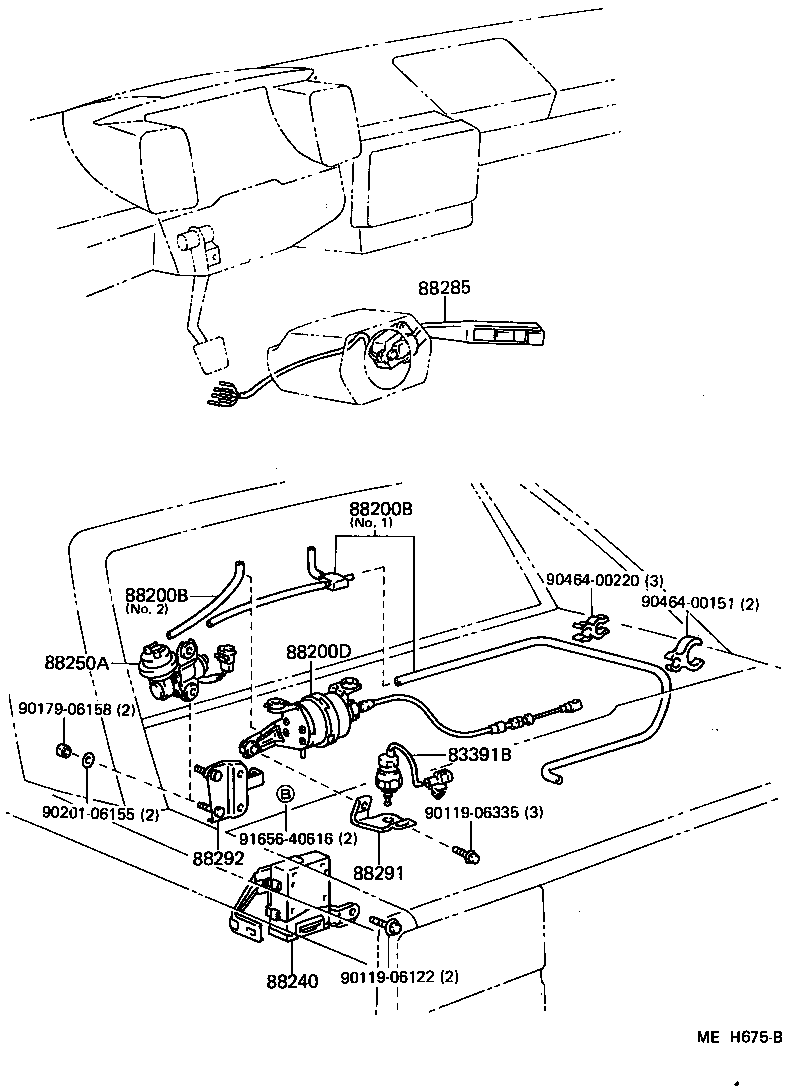

Click highlighted areas on diagram

diagram 83391B 88200B 88200B 88200D 88240 88250A 88285 88291 88292 9011906122 9011906335 9017906158 9020106155 9046400151 9046400220 9165640616
Part # Description Qty Price
83391B - SWITCH, AUTO DRIVE VACUUM
83391-14090

AW11..4FC..GT

 1
83391-22040

AW11

 1
83391-14090

AW11..4FC;AW11..5F..SPC

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-17010

AW11

NO.1

 1
95411-19960

AW11

*H,L=360,MARK=#*,NO.2

 1
95411-19930

AW11..4FC..GT

*H,L=270,MARK=#*,NO.2

 1
88283-17020

AW11..4FC..GT

NO.1

 1
95411-19930

AW11..4FC;AW11..5F..SPC

*H,L=300,MARK=#*

 1
88283-17020

AW11..4FC..GT

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-17010

AW11

NO.1

 1
95411-19960

AW11

*H,L=360,MARK=#*,NO.2

 1
95411-19930

AW11..4FC..GT

*H,L=270,MARK=#*,NO.2

 1
88283-17020

AW11..4FC..GT

NO.1

 1
95411-19930

AW11..4FC;AW11..5F..SPC

*H,L=300,MARK=#*

 1
88283-17020

AW11..4FC..GT

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-17020

AW11

 1
88200-17030

AW11..4FC..GT

 1
88200-17031

AW11..4FC..GT

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-17020

AW11

 1
88240-17060

AW11..GT;AW11..4FC..SPC

 1
88250A - PUMP ASSY, CRUISE CONTROL
88250-17010

AW11

 1
88251-17040

AW11..4FC..GT

 1
88251-17040

AW11..4FC;AW11..5F..SPC

 1
88285 - SWITCH, CRUISE CONTROL
88285-19025

AW11

MATSUSHITA

 1
88285-19015

AW11

TOKAIRIKA

 1
88285-17080

AW11

W(AUTO DRIVE),MATSUSHITA

 1
88285-17070

AW11

W(AUTO DRIVE),TOKAIRIKA

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-17010

AW11

 1
88292-17010

AW11..4FC;AW11..5F..SPC

 1
88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2
88291-17020

AW11..4FC..GT

 1
88291-17020

AW11..4FC;AW11..5F..SPC

 1
Common parts
90119-06122
90119-06335
90179-06158
90201-06155
90464-00151
90464-00220
91656-40616
