AW11L-WJMQRK (1987)
Toyota Mr2

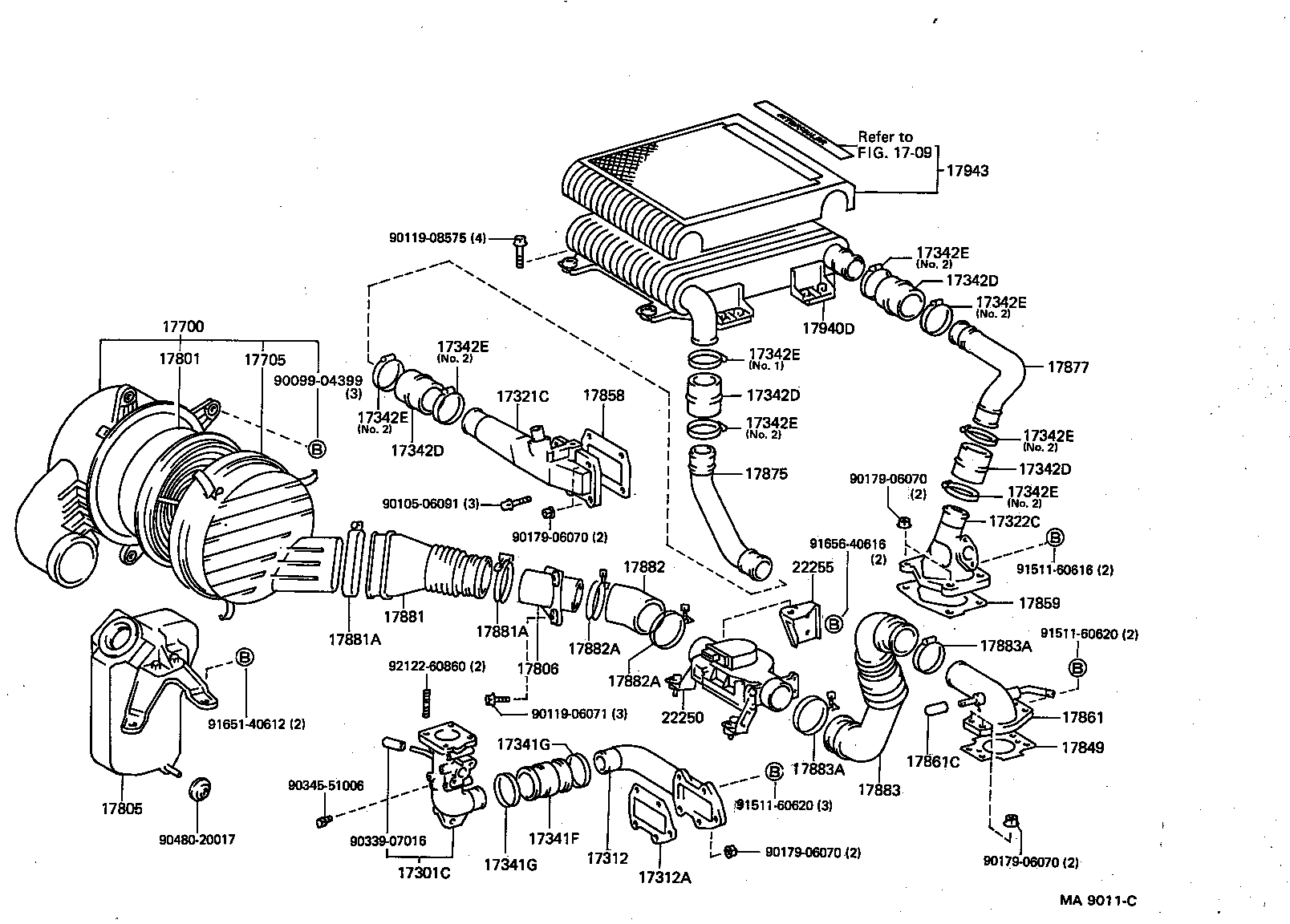

ILLUST NO. 1 OF 2(8708- )4AGZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17301C - DUCT SUB-ASSY, AIR INLET, NO.1 | ||||
| 17301-16011 |
4AGZE..AW11 |
1 | ||
| 17301-16010 |
4AGZE..AW11 |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-16010 |
4AGZE..AW11 |
1 | ||
| 17312A - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-16010 |
4AGZE..AW11 |
1 | ||
| 17321C - DUCT, AIR OUTLET, NO.1 | ||||
| 17321-16010 |
4AGZE..AW11 |
1 | ||
| 17322C - DUCT, AIR OUTLET, NO.2 | ||||
| 17322-16010 |
4AGZE..AW11 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-16100 |
4AGZE..AW11 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-73001 |
4AGZE..AW11 |
1 | ||
| 90460-73001 |
4AGZE..AW11 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-73001 |
4AGZE..AW11 |
1 | ||
| 90460-73001 |
4AGZE..AW11 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-16060 |
4AGZE..AW11 |
1 | ||
| 17342-16060 |
4AGZE..AW11 |
4 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-16060 |
4AGZE..AW11 |
1 | ||
| 17342-16060 |
4AGZE..AW11 |
4 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-16060 |
4AGZE..AW11 |
1 | ||
| 17342-16060 |
4AGZE..AW11 |
4 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-16060 |
4AGZE..AW11 |
1 | ||
| 17342-16060 |
4AGZE..AW11 |
4 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 90460-65006 |
4AGZE..AW11 NO.1 |
1 | ||
| 90460-67004 |
4AGZE..AW11 NO.2 |
7 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16360 |
4AGZE..AW11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16150 |
4AGZE..AW11 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53206-17010 |
4AGZE..AW11 |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-16010 |
4AGZE..AW11 |
1 | ||
| 17858 - GASKET, AIR OUTLET DUCT, NO.1 | ||||
| 17858-16010 |
4AGZE..AW11 |
1 | ||
| 17859 - GASKET, AIR OUTLET DUCT, NO.2 | ||||
| 17859-16010 |
4AGZE..AW11 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-16010 |
4AGZE..AW11 |
1 | ||
| 17861C - CAP(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-07016 |
4AGZE..AW11 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-16010 |
4AGZE..AW11 |
1 | ||
| 17877 - PIPE, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17877-16010 |
4AGZE..AW11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16080 |
4AGZE..AW11 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16020 |
4AGZE..AW11 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-75001 |
4AGZE..AW11 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-75001 |
4AGZE..AW11 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER SIDE |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-16010 |
4AGZE..AW11 |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 17943-16010 |
4AGZE..AW11 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-16090 |
4AGZE..AW11 |
1 | ||
| Common parts | ||||
| 90099-04399 | ||||
| 90105-06091 | ||||
| 90119-06071 | ||||
| 90119-08575 | ||||
| 90179-06070 | ||||
| 90339-07016 | ||||
| 90345-51006 | ||||
| 90480-20017 | ||||
| 91511-60616 | ||||
| 91511-60620 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 92122-60860 | ||||
| Linked diagrams | ||||
| 1709 | ||||
