AW11L-WJMQFG (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

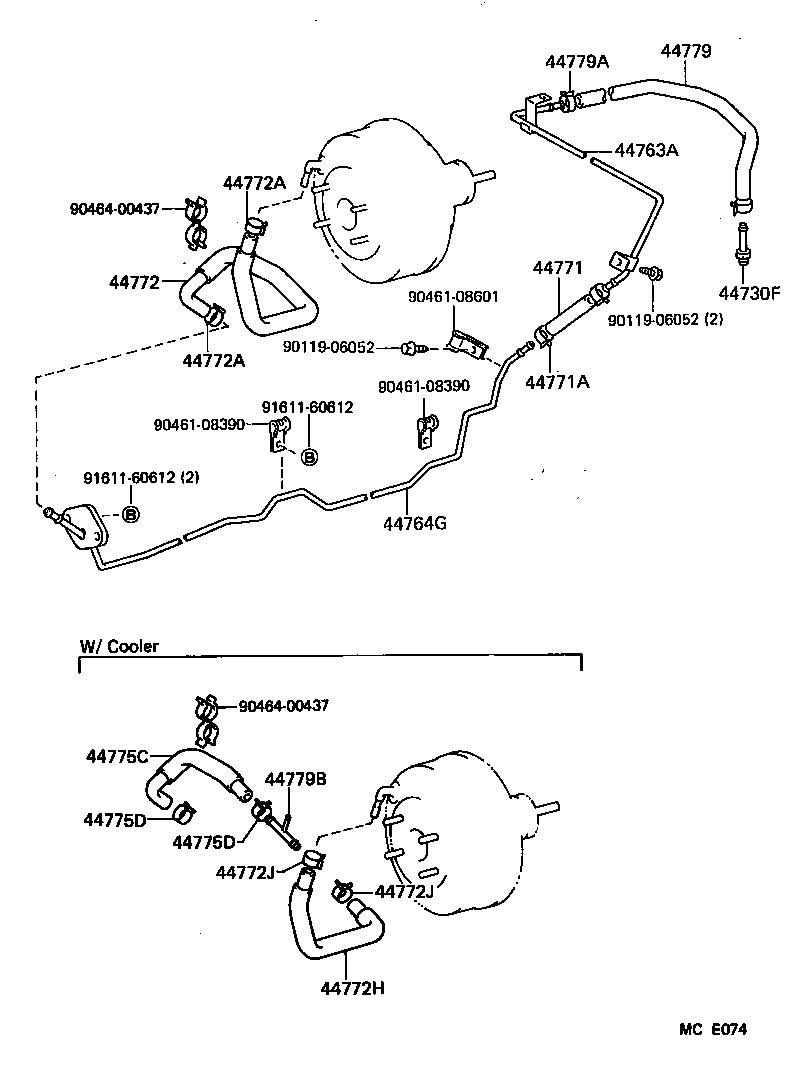

ILLUST NO. 2 OF 2(8608- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
AW11 W/CRUISE CONTROL |
1 | ||
| 90404-51319 |
AW11 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-17020 |
AW11 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-17010 |
AW11 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17039 |
AW11 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-17080 |
AW11..LHD |
1 | ||
| 44772-17040 |
AW11..LHD |
1 | ||
| 44772-17020 |
AW11 W/COOLER |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11..LHD |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11..LHD |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-17010 |
AW11 |
1 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-17020 |
AW11 |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44779B - WAY(FOR UNION TO CONNECTOR HOSE) | ||||
| 90413-09026 |
AW11 |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90461-08390 | ||||
| 90461-08601 | ||||
| 90464-00437 | ||||
| 91611-60612 | ||||
