8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

AW11L-WJMQF (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989

Engine 4AGEL

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

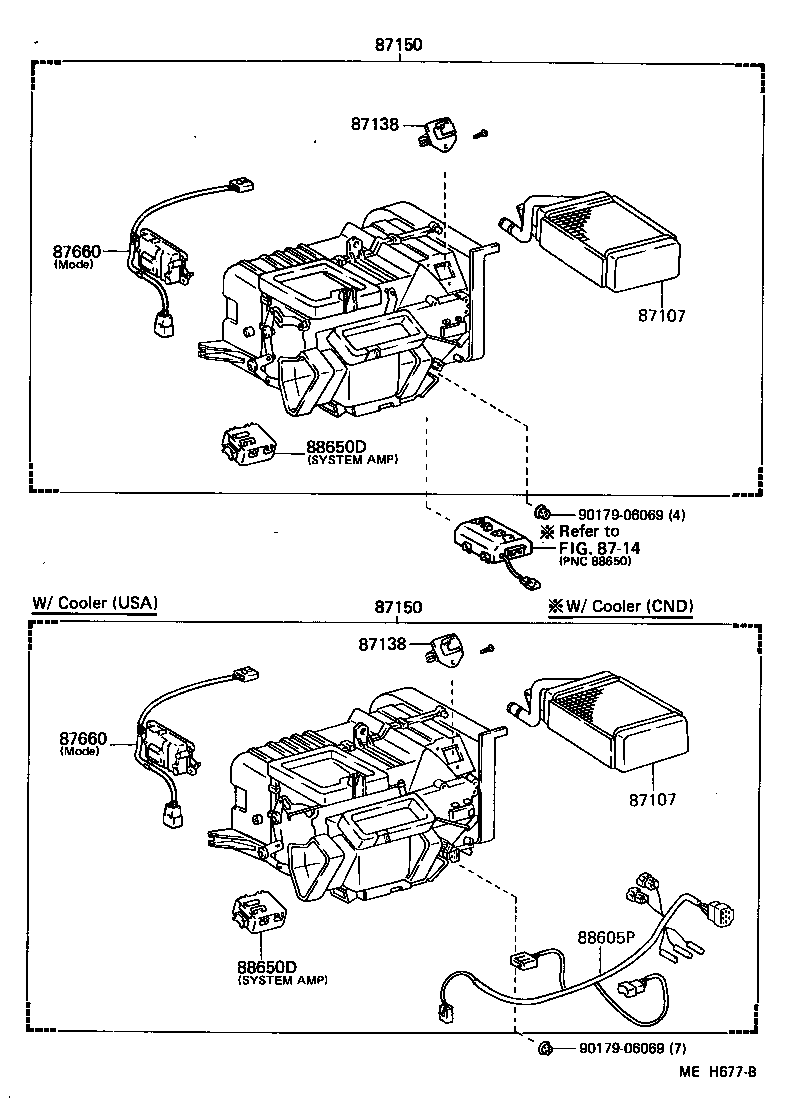

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17030	AW11..GEN W/*AAC	08/1986 - 03/1988	1
55909-17030	AW11..LHD..GEN W/*AAC	03/1988 - 12/1989	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-17030	AW11..LHD	11/1984 - 12/1989	1
87138 - RESISTOR, HEATER BLOWER
87138-17020	AW11..LHD	11/1984 - 08/1986	1
87138-17040	AW11..LHD	08/1986 - 12/1989	1
88635-17040	AW11..LHD..GEN W/*AAC	08/1986 - 03/1988	1
88635-17040	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP))	03/1988 - 12/1989	1
88635-17010	AW11..LHD..GEN W/COOLER	11/1984 - 06/1985	1
87150 - RADIATOR ASSY, HEATER
87150-17060	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87150-17170	AW11..LHD..GEN W/*AAC	08/1986 - 03/1988	1
87150-17120	AW11..LHD	08/1986 - 12/1989	1
87150-17170	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP))	03/1988 - 12/1989	1
87150-17030	AW11..LHD	11/1984 - 08/1986	1
87660 - SERVO ASSY, AIR CONDITIONER
87106-17050	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),MODE	03/1988 - 12/1989	1
88660-17020	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87106-17020	AW11..LHD AIR INLET	08/1986 - 03/1988	1
87106-17070	AW11..LHD..GEN W/*AAC,AIR MIX	08/1986 - 03/1988	1
87106-17020	AW11..LHD AIR INLET	03/1988 - 12/1989	1
87106-17050	AW11..LHD..GEN W/*AAC,MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	03/1988 - 12/1989	1
87106-17070	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),AIR MIX	03/1988 - 12/1989	1
87660 - SERVO ASSY, AIR CONDITIONER
87106-17050	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),MODE	03/1988 - 12/1989	1
88660-17020	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87106-17020	AW11..LHD AIR INLET	08/1986 - 03/1988	1
87106-17070	AW11..LHD..GEN W/*AAC,AIR MIX	08/1986 - 03/1988	1
87106-17020	AW11..LHD AIR INLET	03/1988 - 12/1989	1
87106-17050	AW11..LHD..GEN W/*AAC,MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	03/1988 - 12/1989	1
87106-17070	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),AIR MIX	03/1988 - 12/1989	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-17140	AW11..GEN W(AUTOMATIC AIR CONDITIONER)	03/1988 - 12/1989	1
88605-17140	AW11..GEN W/*AAC	08/1986 - 03/1988	1
88605-17020	AW11..GEN W/COOLER	11/1984 - 08/1986	1
88610J - SWITCH ASSY, CONTROL
88610-17020	AW11..LHD..GEN	01/1988 - 12/1989	1
88650D - AMPLIFIER ASSY
87161-17010	AW11	03/1988 - 12/1989	1
87161-17010	AW11 SISTEM AMP	08/1986 - 03/1988	1
Common parts
90179-06069
Linked diagrams
8714

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17030	AW11..GEN W/*AAC	08/1986 - 03/1988	1
55909-17030	AW11..LHD..GEN W/*AAC	03/1988 - 12/1989	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-17030	AW11..LHD	11/1984 - 12/1989	1
87138 - RESISTOR, HEATER BLOWER
87138-17020	AW11..LHD	11/1984 - 08/1986	1
87138-17040	AW11..LHD	08/1986 - 12/1989	1
88635-17040	AW11..LHD..GEN W/*AAC	08/1986 - 03/1988	1
88635-17040	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP))	03/1988 - 12/1989	1
88635-17010	AW11..LHD..GEN W/COOLER	11/1984 - 06/1985	1
87138 - RESISTOR, HEATER BLOWER
87138-17020	AW11..LHD	11/1984 - 08/1986	1
87138-17040	AW11..LHD	08/1986 - 12/1989	1
88635-17040	AW11..LHD..GEN W/*AAC	08/1986 - 03/1988	1
88635-17040	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP))	03/1988 - 12/1989	1
88635-17010	AW11..LHD..GEN W/COOLER	11/1984 - 06/1985	1
87150 - RADIATOR ASSY, HEATER
87150-17060	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87150-17170	AW11..LHD..GEN W/*AAC	08/1986 - 03/1988	1
87150-17120	AW11..LHD	08/1986 - 12/1989	1
87150-17170	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER(MOP))	03/1988 - 12/1989	1
87150-17030	AW11..LHD	11/1984 - 08/1986	1
87660 - SERVO ASSY, AIR CONDITIONER
87106-17050	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),MODE	03/1988 - 12/1989	1
88660-17020	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87106-17020	AW11..LHD AIR INLET	08/1986 - 03/1988	1
87106-17070	AW11..LHD..GEN W/*AAC,AIR MIX	08/1986 - 03/1988	1
87106-17020	AW11..LHD AIR INLET	03/1988 - 12/1989	1
87106-17050	AW11..LHD..GEN W/*AAC,MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	03/1988 - 12/1989	1
87106-17070	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),AIR MIX	03/1988 - 12/1989	1
87660 - SERVO ASSY, AIR CONDITIONER
87106-17050	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),MODE	03/1988 - 12/1989	1
88660-17020	AW11..LHD..GEN W/COOLER	11/1984 - 08/1986	1
87106-17020	AW11..LHD AIR INLET	08/1986 - 03/1988	1
87106-17070	AW11..LHD..GEN W/*AAC,AIR MIX	08/1986 - 03/1988	1
87106-17020	AW11..LHD AIR INLET	03/1988 - 12/1989	1
87106-17050	AW11..LHD..GEN W/*AAC,MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	08/1986 - 03/1988	1
87106-17040	AW11..LHD MODE	03/1988 - 12/1989	1
87106-17070	AW11..LHD..GEN W(AUTOMATIC AIR CONDITIONER),AIR MIX	03/1988 - 12/1989	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-17140	AW11..GEN W(AUTOMATIC AIR CONDITIONER)	03/1988 - 12/1989	1
88605-17140	AW11..GEN W/*AAC	08/1986 - 03/1988	1
88605-17020	AW11..GEN W/COOLER	11/1984 - 08/1986	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-17140	AW11..GEN W(AUTOMATIC AIR CONDITIONER)	03/1988 - 12/1989	1
88605-17140	AW11..GEN W/*AAC	08/1986 - 03/1988	1
88605-17020	AW11..GEN W/COOLER	11/1984 - 08/1986	1
88650D - AMPLIFIER ASSY
87161-17010	AW11	03/1988 - 12/1989	1
87161-17010	AW11 SISTEM AMP	08/1986 - 03/1988	1
Common parts
88569-17100
88569-17110
88688-17240
90099-00181
90179-06069
93315-13008
93580-10612
Linked diagrams
8714

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06069
Linked diagrams
8714
