AW11L-WJMQF (1986)
Toyota Mr2

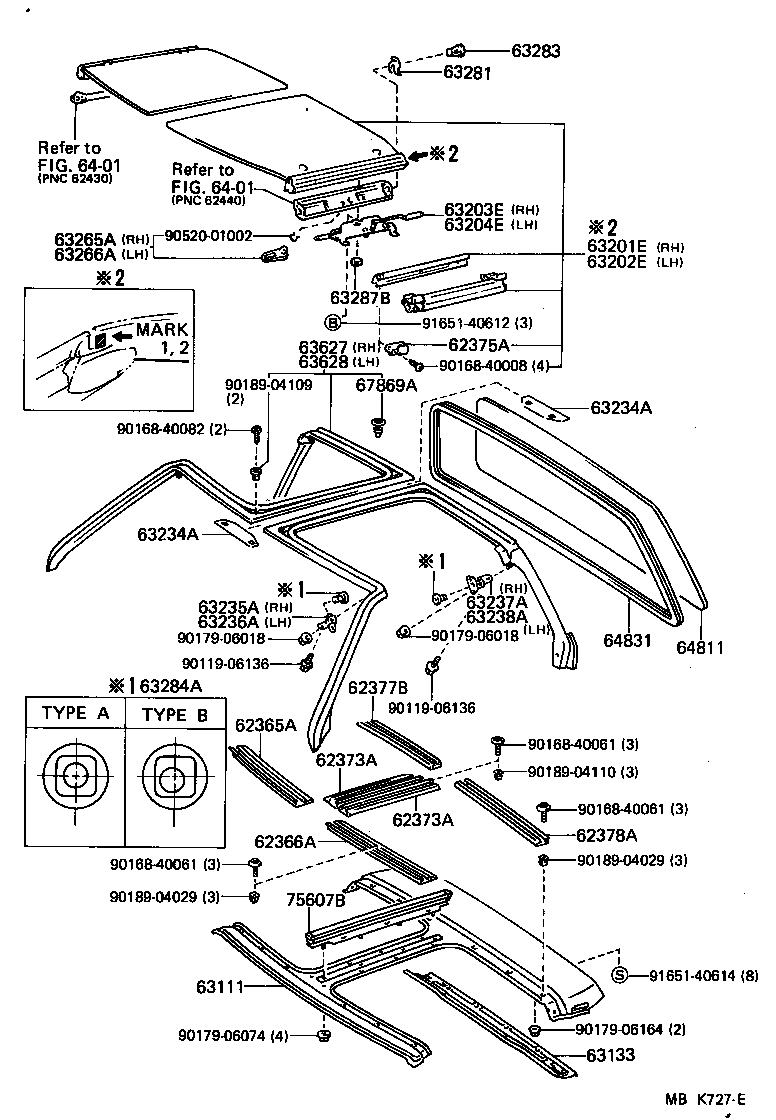

(8608- )TBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62365A - RETAINER, REMOVABLE ROOF WEATHERSTRIP, FRONT RH | ||||
| 62365-17010 |
AW11..TBR |
1 | ||
| 62366A - RETAINER, REMOVABLE ROOF WEATHERSTRIP, FRONT LH | ||||
| 62366-17010 |
AW11..TBR |
1 | ||
| 62373A - RETAINER, REMOVABLE ROOF WEATHERSTRIP, CENTER | ||||
| 62373-17010 |
AW11..TBR |
1 | ||
| 62373-17010 |
AW11..TBR |
2 | ||
| 62373A - RETAINER, REMOVABLE ROOF WEATHERSTRIP, CENTER | ||||
| 62373-17010 |
AW11..TBR |
1 | ||
| 62373-17010 |
AW11..TBR |
2 | ||
| 62375A - CLIP, REMOVABLE ROOF | ||||
| 62375-17010 |
AW11..TBR |
2 | ||
| 62375-17010 |
AW11..TBR |
1 | ||
| 62377B - RETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR RH | ||||
| 62377-17010 |
AW11..TBR |
1 | ||
| 62378A - RETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR LH | ||||
| 62378-17010 |
AW11..TBR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-17900 |
AW11..TBR |
1 | ||
| 63111-17903 |
AW11..LHD W/REMOVABLE ROOF |
1 | ||
| 63111-17901 |
AW11..LHD |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-17011 |
AW11 |
1 | ||
| 63201E - GLASS SUB-ASSY, REMOVABLE ROOF, RH | ||||
| 63201-17120 |
AW11..TBR..GEN |
1 | ||
| 63201-17070 |
AW11..TBR..GEN MARK 1 |
1 | ||
| 63201-17120 |
AW11..TBR..GEN MARK 2 |
1 | ||
| 63201-17150 |
AW11..TBR..GEN |
1 | ||
| 63202E - GLASS SUB-ASSY, REMOVABLE ROOF, LH | ||||
| 63202-17030 |
AW11..TBR..GEN MARK 1 |
1 | ||
| 63202-17090 |
AW11..TBR..GEN |
1 | ||
| 63202-17060 |
AW11..TBR..GEN MARK 2 |
1 | ||
| 63202-17060 |
AW11..TBR..GEN |
1 | ||
| 63203E - LOCK SUB-ASSY, REMOVABLE ROOF, RH | ||||
| 63203-17030 |
AW11..TBR |
1 | ||
| 63204E - LOCK SUB-ASSY, REMOVABLE ROOF, LH | ||||
| 63204-17050 |
AW11..TBR |
1 | ||
| 63234A - SEAL, ROOF WINDOW, NO.1 | ||||
| 63234-17010 |
AW11..TBR |
2 | ||
| 63234A - SEAL, ROOF WINDOW, NO.1 | ||||
| 63234-17010 |
AW11..TBR |
2 | ||
| 63235A - PLATE, REMOVABLE ROOF FEMALE, FRONT RH | ||||
| 63235-17010 |
AW11..TBR |
1 | ||
| 63236A - PLATE, REMOVABLE ROOF FEMALE, FRONT LH | ||||
| 63236-17010 |
AW11..TBR |
1 | ||
| 63237A - PLATE, REMOVABLE ROOF FEMALE, REAR RH | ||||
| 63237-17020 |
AW11..TBR |
1 | ||
| 63238A - PLATE, REMOVABLE ROOF FEMALE, REAR LH | ||||
| 63238-17020 |
AW11..TBR |
1 | ||
| 63265A - LEVER, REMOVABLE ROOF LOCK, RH | ||||
| 63265-1701005 |
AW11..TBR BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 63265-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 63265-1701004 |
AW11..TBR BLUE,DARK BLUE,TRIM8# |
1 | ||
| 63265-1701001 |
AW11..TBR BLACK,BLACK,TRIM2# |
1 | ||
| 63265-1701011 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 63265-1701005 |
AW11..TBR DARK BEIGE,TRIM4# |
1 | ||
| 63265-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 63266A - LEVER, REMOVABLE ROOF LOCK, LH | ||||
| 63266-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 63266-1701001 |
AW11..TBR BLACK,BLACK,TRIM2# |
1 | ||
| 63266-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 63266-1701004 |
AW11..TBR BLUE,DARK BLUE,TRIM8# |
1 | ||
| 63266-1701005 |
AW11..TBR BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 63266-1701005 |
AW11..TBR DARK BEIGE,TRIM4# |
1 | ||
| 63266-1701011 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 63281 - RETAINER, REMOVABLE ROOF LOCK GUIDE | ||||
| 63281-17010 |
AW11..TBR |
4 | ||
| 63283 - GUIDE, REMOVABLE ROOF LOCK | ||||
| 63283-17010 |
AW11..TBR |
4 | ||
| 63284A - GUIDE, REMOVABLE ROOF FEMALE | ||||
| 63284-17020 |
AW11..TBR TYPE A |
4 | ||
| 63284-17020 |
AW11..TBR |
4 | ||
| 63284-17030 |
AW11..TBR TYPE B |
1 | ||
| 63287B - KNOB, REMOVABLE ROOF LOCK | ||||
| 63287-1701004 |
AW11..TBR BLUE,DARK BLUE,TRIM8# |
2 | ||
| 63287-1701001 |
AW11..TBR BLACK,BLACK,TRIM2# |
2 | ||
| 63287-1701001 |
AW11..TBR BLACK,TRIM2# |
2 | ||
| 63287-1701005 |
AW11..TBR BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 63287-1701005 |
AW11..TBR DARK BEIGE,TRIM4# |
2 | ||
| 63287-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
2 | ||
| 63287-1701011 |
AW11..TBR BLACK,TRIM2# |
2 | ||
| 63627 - WEATHERSTRIP, REMOVABLE ROOF, RH | ||||
| 63627-17010 |
AW11..TBR |
1 | ||
| 63628 - WEATHERSTRIP, REMOVABLE ROOF, LH | ||||
| 63628-17010 |
AW11..TBR |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-17010 |
AW11 *EHTT,T=3.5 |
1 | ||
| 64811-17010 |
AW11 *EHTT,T=3.5,*EHTT,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-17010 |
AW11 |
1 | ||
| 67869A - CLIP(FOR REMOVABLE ROOF WEATHERSTRIP) | ||||
| 67869-30020 |
AW11..TBR |
8 | ||
| 75607B - MOULDING SUB-ASSY, ROOF TOP | ||||
| 75607-17010 |
AW11..TBR |
1 | ||
| Common parts | ||||
| 90119-06136 | ||||
| 90168-40008 | ||||
| 90168-40061 | ||||
| 90168-40082 | ||||
| 90179-06018 | ||||
| 90179-06074 | ||||
| 90179-06164 | ||||
| 90189-04029 | ||||
| 90189-04109 | ||||
| 90189-04110 | ||||
| 90520-01002 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 6401 | ||||
