AW11L-WCPQFK (1985)

Toyota Mr2

Production Aug 1985 - Aug 1988
Engine 4AGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8412-8608)

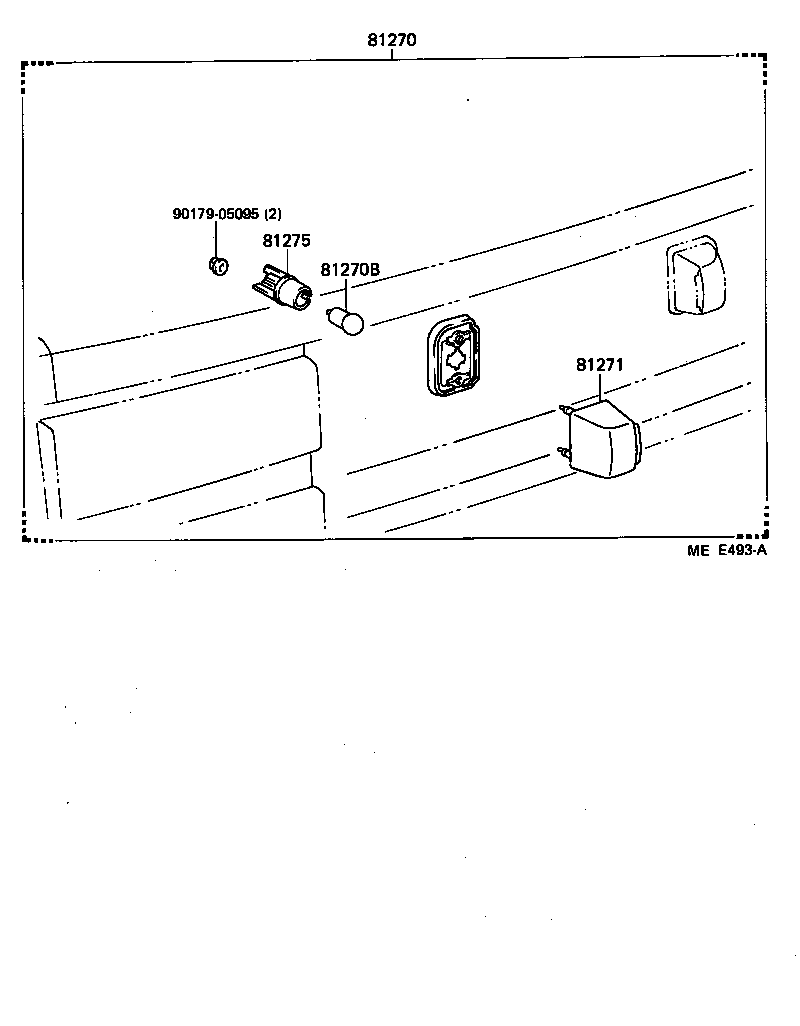

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275 9017905095
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80009

AW11

 2
81270-80025

AW11

W/CENTER FINISH PANEL

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

AW11

12V 7.5W,12V 7.5W,W/CENTER FINISH PANEL

 2
99132-11075

AW11

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-17010

AW11

W/CENTER FINISH PANEL

 2
81271-12230

AW11

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12230

AW11

 2
81275-12240

AW11

W/CENTER FINISH PANEL

 2
Common parts
90179-05095
