AW11L-WCMQFA (1984)
Toyota Mr2
(8411-8608) ; (8608- )CP..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63297-12010 | ||||
| 90159-50074 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 93319-25014 | ||||
| 93520-24010 | ||||
| 93520-54010 | ||||
| 94180-40600 | ||||

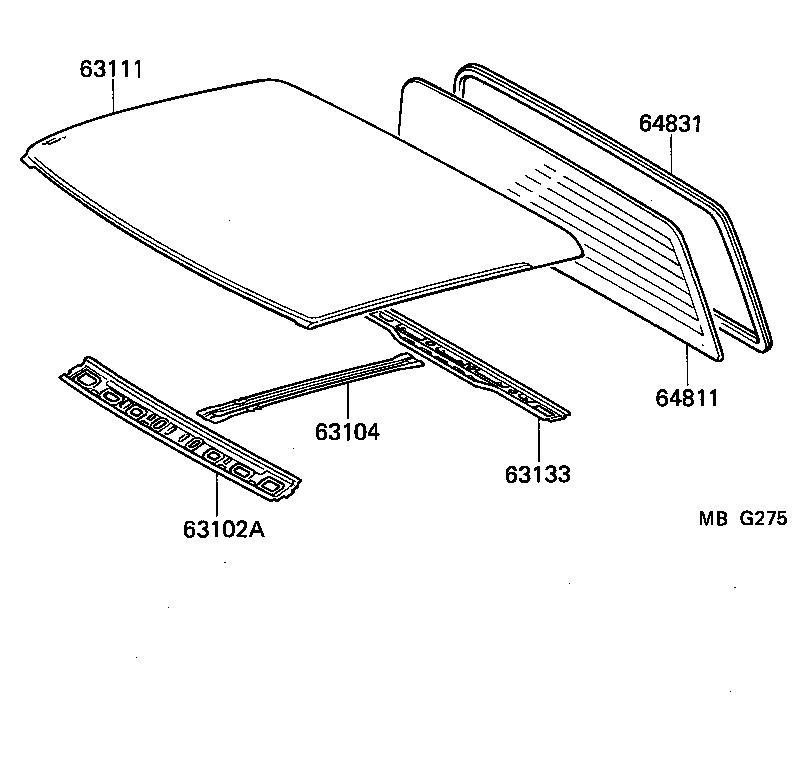

(8412- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-17010 |
AW11..CP |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-17010 |
AW11..CP |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-17901 |
AW11..CP |
1 | ||
| 63111-17903 |
AW11 W/REMOVABLE ROOF |
1 | ||
| 63111-17060 |
AW11..CP..USA W/O ANTENNA HOLE |
1 | ||
| 63111-17070 |
AW11..CP..USA W/REMOVABLE ROOF,W/O ANTENNA |
1 | ||
| 63111-17070 |
AW11..CP..USA W(REMOVABLE ROOF & MOTOR ANTENNA) |
1 | ||
| 63111-17903 |
AW11..CP W(REMOVABLE ROOF) |
1 | ||
| 63111-17060 |
AW11..CP..USA W(MOTOR ANTENNA) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-17011 |
AW11 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-17090 |
AW11 *EHTT,T=3.5,BRONZE,BRONZE,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5,W/SPOILER,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5,*EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17080 |
AW11 *EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE,W/SPOILER,BRONZE,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11..TBR;AW11..CP..4FC;AW11..CP..5F..USA *EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE,*EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17090 |
AW11..GT;AW11..4FC..SPC;AW11..SPC..CND *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5 |
1 | ||
| 64811-17080 |
AW11 *EHTT,T=3.5,*EHTT,T=3.5 |
1 | ||
| 64811-17090 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-17010 |
AW11 |
1 | ||

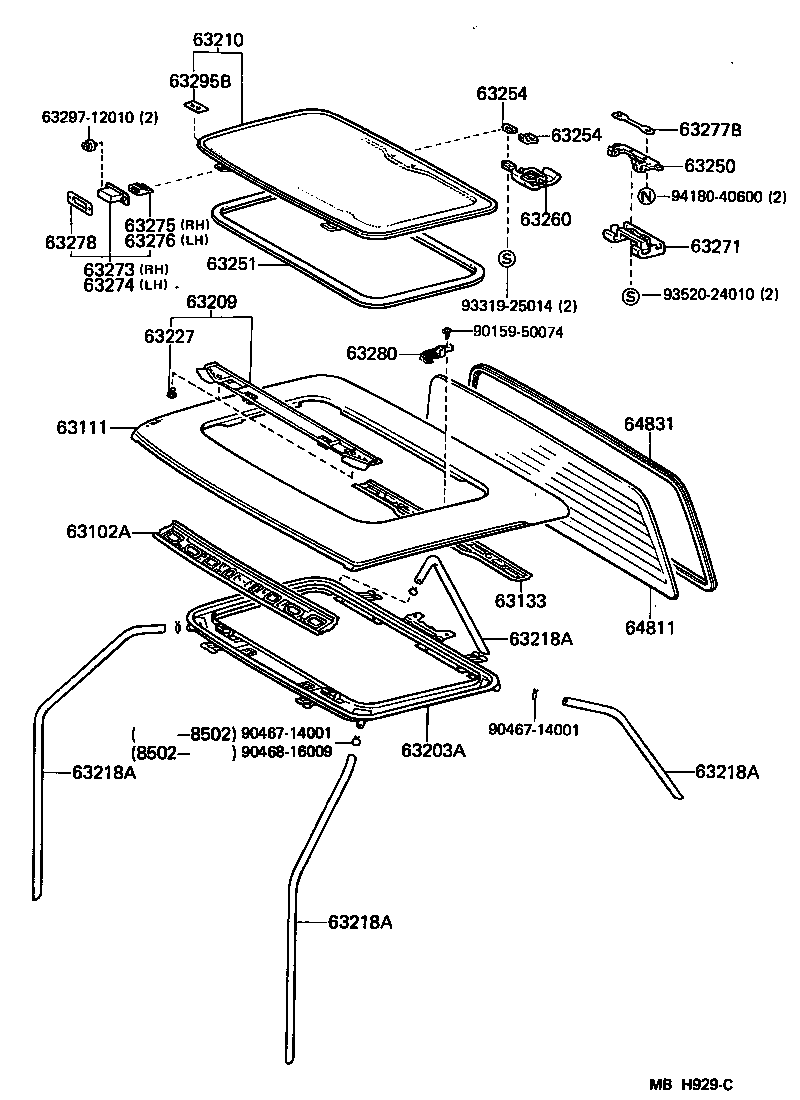

(8412- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-17010 |
AW11..CP |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-17901 |
AW11..CP |
1 | ||
| 63111-17903 |
AW11 W/REMOVABLE ROOF |
1 | ||
| 63111-17060 |
AW11..CP..USA W/O ANTENNA HOLE |
1 | ||
| 63111-17070 |
AW11..CP..USA W/REMOVABLE ROOF,W/O ANTENNA |
1 | ||
| 63111-17070 |
AW11..CP..USA W(REMOVABLE ROOF & MOTOR ANTENNA) |
1 | ||
| 63111-17903 |
AW11..CP W(REMOVABLE ROOF) |
1 | ||
| 63111-17060 |
AW11..CP..USA W(MOTOR ANTENNA) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-17011 |
AW11 |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-17021 |
AW11..CP |
1 | ||
| 63203-17020 |
AW11 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-17011 |
AW11..CP |
1 | ||
| 63209-17010 |
AW11 |
1 | ||
| 63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-17040 |
AW11..CP BRONZE |
1 | ||
| 63201-17020 |
AW11..CP |
1 | ||
| 63201-17040 |
AW11..CP BRONZE |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17020 |
AW11 FR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17020 |
AW11 FR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17020 |
AW11 FR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17020 |
AW11 FR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17010 |
AW11..CP RR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63249-17030 |
AW11..CP L=1470,FR |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-12011 |
AW11..CP |
2 | ||
| 63250 - BASE ASSY, REMOVABLE ROOF LOCK | ||||
| 63250-17010 |
AW11 |
1 | ||
| 63250-17011 |
AW11..CP |
1 | ||
| 63250-17011 |
AW11 |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63252-17010 |
AW11..CP |
1 | ||
| 63254 - HOLDER, REMOVABLE ROOF GLASS, INNER REAR | ||||
| 63254-17010 |
AW11..CP LH |
1 | ||
| 63254-89103 |
AW11..CP RH |
1 | ||
| 63254-17010 |
AW11..CP LH |
1 | ||
| 63254-89103 |
AW11..CP RH |
1 | ||
| 63254 - HOLDER, REMOVABLE ROOF GLASS, INNER REAR | ||||
| 63254-17010 |
AW11..CP LH |
1 | ||
| 63254-89103 |
AW11..CP RH |
1 | ||
| 63254-17010 |
AW11..CP LH |
1 | ||
| 63254-89103 |
AW11..CP RH |
1 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-1702003 |
AW11 LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 63260-8910305 |
AW11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 63260-1702001 |
AW11..CP BLACK,TRIM2# |
1 | ||
| 63260-1702011 |
AW11..CP BLACK,TRIM2# |
1 | ||
| 63260-8910303 |
AW11 LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 63260-1702004 |
AW11..CP BLUE,DARK BLUE,TRIM8# |
1 | ||
| 63260-1702004 |
AW11..CP DARK BLUE,TRIM8# |
1 | ||
| 63260-1702005 |
AW11..CP BEIGE,TRIM4# |
1 | ||
| 63260-1702005 |
AW11..CP BEIGE,BEIGE,TRIM4# |
1 | ||
| 63260-1702002 |
AW11..CP RED,TRIM3# |
1 | ||
| 63260-1702001 |
AW11..CP BLACK,BLACK,TRIM1# |
1 | ||
| 63271 - GARNISH, REMOVABLE ROOF LOCK | ||||
| 63271-1201004 |
AW11..CP BLUE,DARK BLUE,TRIM8# |
1 | ||
| 63271-1201005 |
AW11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 63271-1201003 |
AW11 LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 63271-1201015 |
AW11..CP BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 63271-1201001 |
AW11..CP BLACK,TRIM2# |
1 | ||
| 63271-1201001 |
AW11..CP BLACK,BLACK,TRIM1# |
1 | ||
| 63271-1201004 |
AW11..CP DARK BLUE,TRIM8# |
1 | ||
| 63271-1201011 |
AW11..CP BLACK,TRIM2# |
1 | ||
| 63271-1201015 |
AW11..CP DARK BEIGE,TRIM4# |
1 | ||
| 63271-1201002 |
AW11..CP RED,TRIM3# |
1 | ||
| 63273 - CASE, REMOVABLE ROOF HINGE, RH | ||||
| 63273-12010 |
AW11 |
1 | ||
| 63273-17010 |
AW11..CP |
1 | ||
| 63274 - CASE, REMOVABLE ROOF HINGE, LH | ||||
| 63274-12010 |
AW11 |
1 | ||
| 63274-17010 |
AW11..CP |
1 | ||
| 63275 - HOLDER, REMOVABLE ROOF HINGE, RH | ||||
| 63275-17010 |
AW11 |
1 | ||
| 63275-12010 |
AW11 |
1 | ||
| 63275-17010 |
AW11..CP |
1 | ||
| 63276 - HOLDER, REMOVABLE ROOF HINGE, LH | ||||
| 63276-12010 |
AW11 |
1 | ||
| 63276-17010 |
AW11 |
1 | ||
| 63276-17010 |
AW11..CP |
1 | ||
| 63277B - SPACER, REMOVABLE ROOF LOCK BASE | ||||
| 63277-12010 |
AW11..CP |
1 | ||
| 63277-12010 |
AW11..CP |
2 | ||
| 63278 - SEAL, REMOVABLE ROOF HINGE CASE | ||||
| 63278-12010 |
AW11..CP |
2 | ||
| 63280 - CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH | ||||
| 63280-17010 |
AW11..CP |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-12020 |
AW11..CP |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-17090 |
AW11 *EHTT,T=3.5,BRONZE,BRONZE,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5,W/SPOILER,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5,*EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17080 |
AW11 *EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE,W/SPOILER,BRONZE,*EHTT,T=3.5 |
1 | ||
| 64811-17030 |
AW11..TBR;AW11..CP..4FC;AW11..CP..5F..USA *EHTT,T=3.5 |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE,*EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17070 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17090 |
AW11..GT;AW11..4FC..SPC;AW11..SPC..CND *EHTT,T=3.5,BRONZE |
1 | ||
| 64811-17030 |
AW11 *EHTT,T=3.5 |
1 | ||
| 64811-17080 |
AW11 *EHTT,T=3.5,*EHTT,T=3.5 |
1 | ||
| 64811-17090 |
AW11 *EHTT,T=3.5,BRONZE |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 63297-12010 | ||||
| 90159-50074 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 93319-25014 | ||||
| 93520-24010 | ||||
| 94180-40600 | ||||
