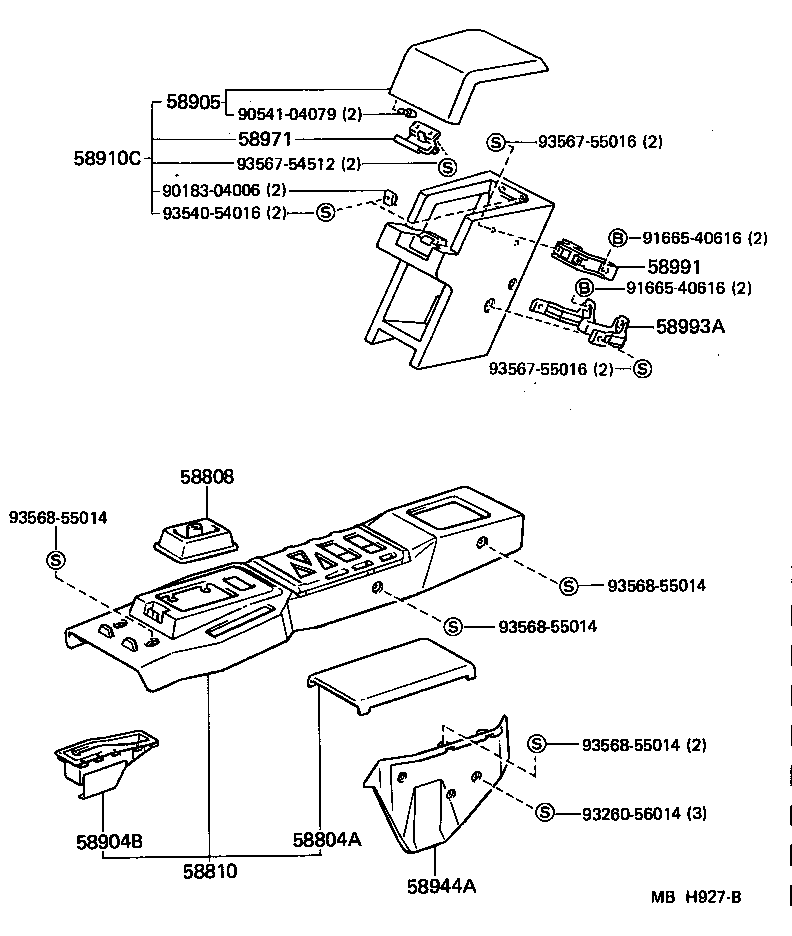

AW11L-WCMQFA (1984)
Toyota Mr2
(8411-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-04006 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-17010 |
AW11 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1704004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-1704002 |
AW11 RED,TRIM3# |
1 | ||
| 58804-1703001 |
AW11 GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1701006 |
AW11 SEPIA BROWN,BROWN,TRIM4# |
1 | ||
| 58804-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58804-1704001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1703001 |
AW11..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701004 |
AW11..5F BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58808-17010 |
AW11 |
1 | ||
| 58808-1701011 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,BLACK,TRIM1# |
1 | ||
| 58808-17010 |
AW11..5F |
1 | ||
| 58808-1701005 |
AW11..5F BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701005 |
AW11..5F DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701004 |
AW11..5F DARK BLUE,TRIM8# |
1 | ||
| 58808-1701002 |
AW11..5F RED,TRIM3# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1704006 |
AW11 LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1704001 |
AW11 LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1704006 |
AW11..5F LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1707005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58801-1704001 |
AW11..5F LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707002 |
AW11 RED,TRIM3# |
1 | ||
| 58801-1707001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58801-1707011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709011 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709002 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,RED,RED,TRIM3# |
1 | ||
| 58801-1707004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-1702005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58834-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58834-1702002 |
AW11 RED,TRIM3# |
1 | ||
| 58834-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58834-1702004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58834-1702011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58834-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58834-1702004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-17020 |
AW11 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702102 |
AW11 RED,TRIM3# |
1 | ||
| 58905-1702104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58905-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58905-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58910-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58910-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701102 |
AW11 RED,TRIM3# |
1 | ||
| 58910-1701105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58944-1703002 |
AW11 RED,TRIM3# |
1 | ||
| 58944-1703005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58944-1703005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1703004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944-1703004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58944-1703011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58971-1701011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58971-1701004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58971-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58971-1701005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701002 |
AW11 RED,TRIM3# |
1 | ||
| 58971-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW11 |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW11 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90189-05024 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54012 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8412-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1704004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-1704002 |
AW11 RED,TRIM3# |
1 | ||
| 58804-1703001 |
AW11 GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1701006 |
AW11 SEPIA BROWN,BROWN,TRIM4# |
1 | ||
| 58804-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58804-1704001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1703001 |
AW11..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701004 |
AW11..5F BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58808-17010 |
AW11 |
1 | ||
| 58808-1701011 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,BLACK,TRIM1# |
1 | ||
| 58808-17010 |
AW11..5F |
1 | ||
| 58808-1701005 |
AW11..5F BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701005 |
AW11..5F DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701004 |
AW11..5F DARK BLUE,TRIM8# |
1 | ||
| 58808-1701002 |
AW11..5F RED,TRIM3# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1704006 |
AW11 LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1704001 |
AW11 LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1704006 |
AW11..5F LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1707005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58801-1704001 |
AW11..5F LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707002 |
AW11 RED,TRIM3# |
1 | ||
| 58801-1707001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58801-1707011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709011 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709002 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,RED,RED,TRIM3# |
1 | ||
| 58801-1707004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-17030 |
AW11 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702102 |
AW11 RED,TRIM3# |
1 | ||
| 58905-1702104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58905-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58905-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58910-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58910-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701102 |
AW11 RED,TRIM3# |
1 | ||
| 58910-1701105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58944-1703002 |
AW11 RED,TRIM3# |
1 | ||
| 58944-1703005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58944-1703005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1703004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944-1703004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58944-1703011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58971-1701011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58971-1701004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58971-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58971-1701005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701002 |
AW11 RED,TRIM3# |
1 | ||
| 58971-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW11 |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-17010 |
AW11 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1704004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-1704002 |
AW11 RED,TRIM3# |
1 | ||
| 58804-1703001 |
AW11 GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1701006 |
AW11 SEPIA BROWN,BROWN,TRIM4# |
1 | ||
| 58804-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58804-1704005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58804-1704001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1703001 |
AW11..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58804-1704005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-1704011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701004 |
AW11..5F BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58808-17010 |
AW11 |
1 | ||
| 58808-1701011 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58808-1701001 |
AW11..5F BLACK,BLACK,TRIM1# |
1 | ||
| 58808-17010 |
AW11..5F |
1 | ||
| 58808-1701005 |
AW11..5F BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701005 |
AW11..5F DARK BEIGE,TRIM4# |
1 | ||
| 58808-1701004 |
AW11..5F DARK BLUE,TRIM8# |
1 | ||
| 58808-1701002 |
AW11..5F RED,TRIM3# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1704006 |
AW11 LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1704001 |
AW11 LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F..USA GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1705001 |
AW11..5F GRADE PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1704006 |
AW11..5F LEATHER PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1707005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58801-1704001 |
AW11..5F LEATHER PACKAGE,BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707002 |
AW11 RED,TRIM3# |
1 | ||
| 58801-1707001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58801-1707004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58801-1707011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58801-1709011 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709001 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58801-1709005 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801-1709002 |
AW11..5F GRADE PACKAGE OR LEATHER PACKAGE,RED,RED,TRIM3# |
1 | ||
| 58801-1707004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-1702005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58834-1702005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58834-1702002 |
AW11 RED,TRIM3# |
1 | ||
| 58834-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58834-1702004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58834-1702011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58834-1702001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58834-1702004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-17020 |
AW11 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702102 |
AW11 RED,TRIM3# |
1 | ||
| 58905-1702104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58905-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58905-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58905-1702111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58905-1702101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58905-1702104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58910-1701104 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58910-1701101 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701105 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701102 |
AW11 RED,TRIM3# |
1 | ||
| 58910-1701105 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58910-1701111 |
AW11 BLACK,TRIM2# |
1 | ||
| 58910-1701101 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58910-1701104 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1702006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58944-1703002 |
AW11 RED,TRIM3# |
1 | ||
| 58944-1703005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58944-1703005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58944-1703001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1702001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58944-1703004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58944-1703004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58944-1703011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701006 |
AW11 SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 58971-1701011 |
AW11 BLACK,TRIM2# |
1 | ||
| 58971-1701005 |
AW11 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701004 |
AW11 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58971-1701004 |
AW11 DARK BLUE,TRIM8# |
1 | ||
| 58971-1701001 |
AW11 BLACK,BLACK,TRIM1# |
1 | ||
| 58971-1701005 |
AW11 DARK BEIGE,TRIM4# |
1 | ||
| 58971-1701002 |
AW11 RED,TRIM3# |
1 | ||
| 58971-1701001 |
AW11 BLACK,TRIM2# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW11 |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW11 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90189-05024 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54012 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
