AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

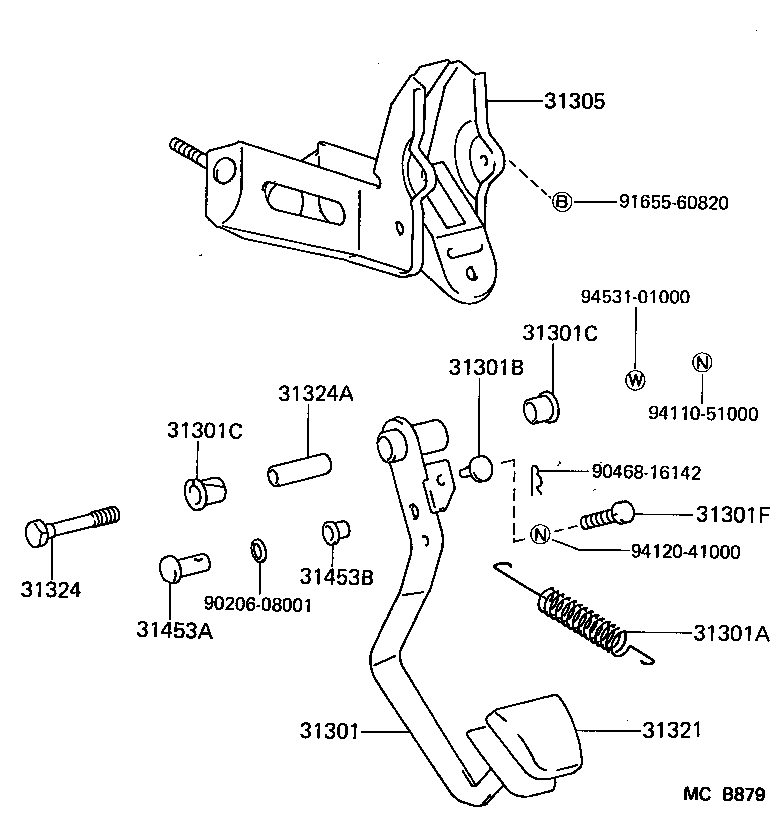

ILLUST NO. 1 OF 2(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-17021 |
AW11..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14003 |
AW11 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
AW11 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AW11 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AW11 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AW11 |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-17020 |
AW11..LHD |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
AW11 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
AW11 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AW11 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AW11 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AW11 |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||

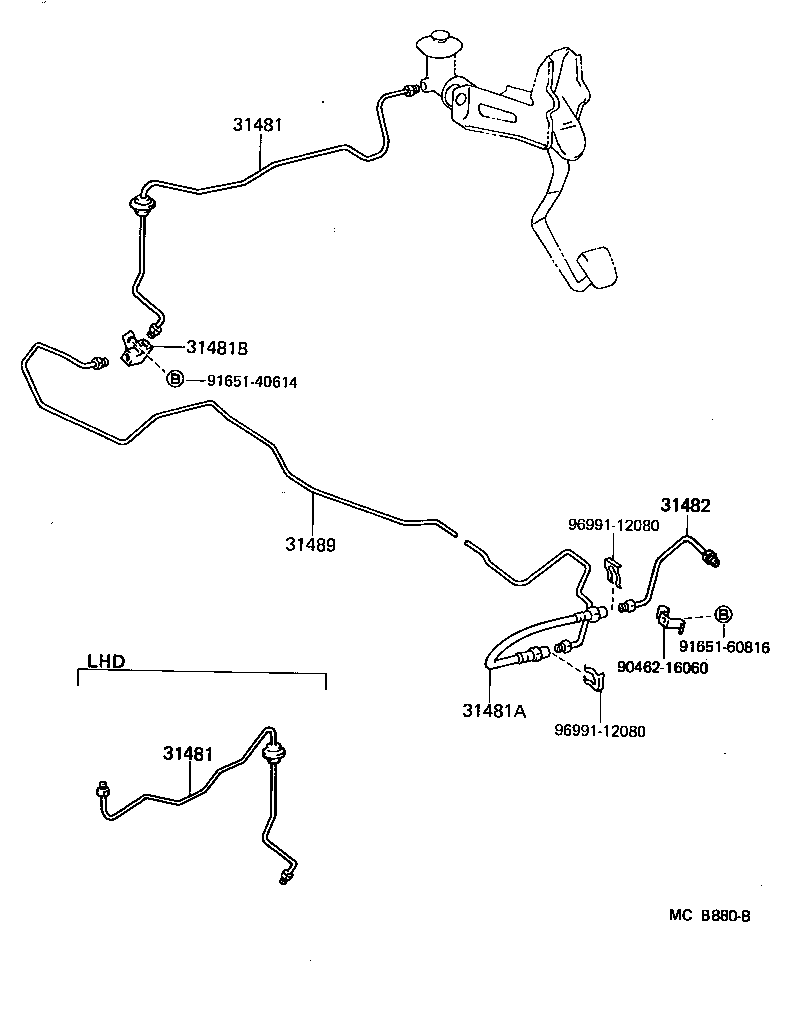

ILLUST NO. 2 OF 2(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-17060 |
AW11..LHD |
1 | ||
| 31481-17030 |
AW11..LHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-17060 |
AW11..LHD |
1 | ||
| 31481-17030 |
AW11..LHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02458 |
AW11 |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12013 |
AW11 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-17021 |
AW11 |
1 | ||
| 31482-17020 |
AW11 |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90462-16060 | ||||
| 91651-40614 | ||||
| 91651-60816 | ||||
| 96991-12080 | ||||

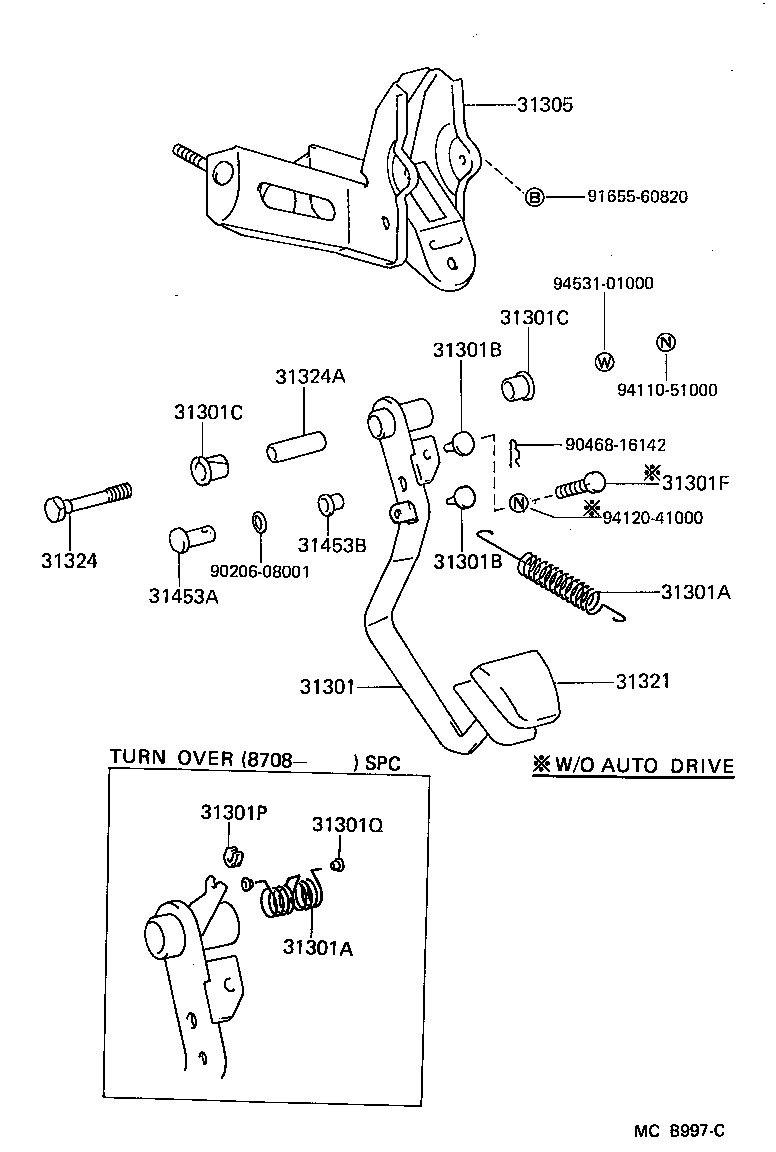

ILLUST NO. 1 OF 2(8412- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||

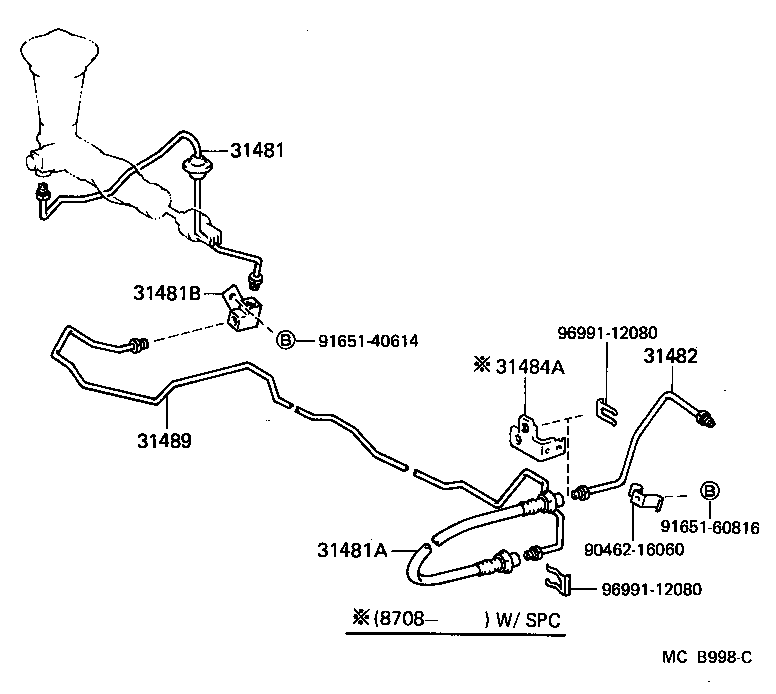

ILLUST NO. 2 OF 2(8412- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90462-16060 | ||||
| 91651-40614 | ||||
| 91651-60816 | ||||
| 96991-12080 | ||||
