AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

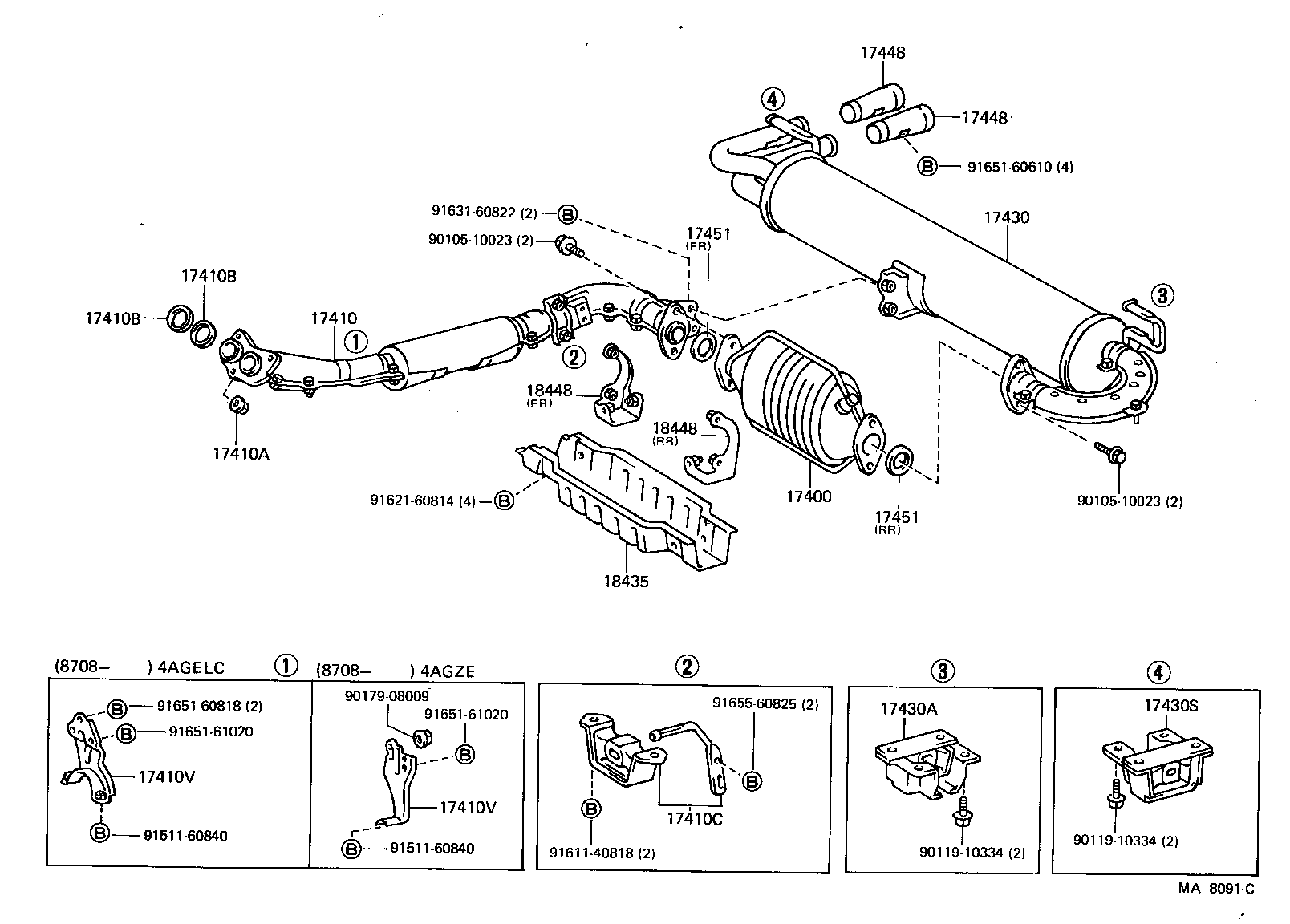

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16190 |
4AGEL..AW11 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16190 |
4AGEL..AW11 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AG#..AW11 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AG#..AW11 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AG#..AW11 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AG#..AW11 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AG#..AW11 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AG#..AW11 |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17506-16010 |
4AG#..AW11 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16150 |
4AGEL..AW11 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17508-16010 |
4AG#..AW11 |
1 | ||
| 17507-16010 |
4AGEL..AW11 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17508-16010 |
4AG#..AW11 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-16010 |
4AG#..AW11 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-16010 |
4AG#..AW11 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AGEL..AW11 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AGEL..AW11 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
4AGEL..AW11 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-10334 | ||||
| 91511-60840 | ||||
| 91611-40818 | ||||
| 91621-60814 | ||||
| 91621-60818 | ||||
| 91631-60822 | ||||
| 91651-60610 | ||||
| 91651-60818 | ||||
| 91651-61020 | ||||
| 91655-60825 | ||||
(8412- )

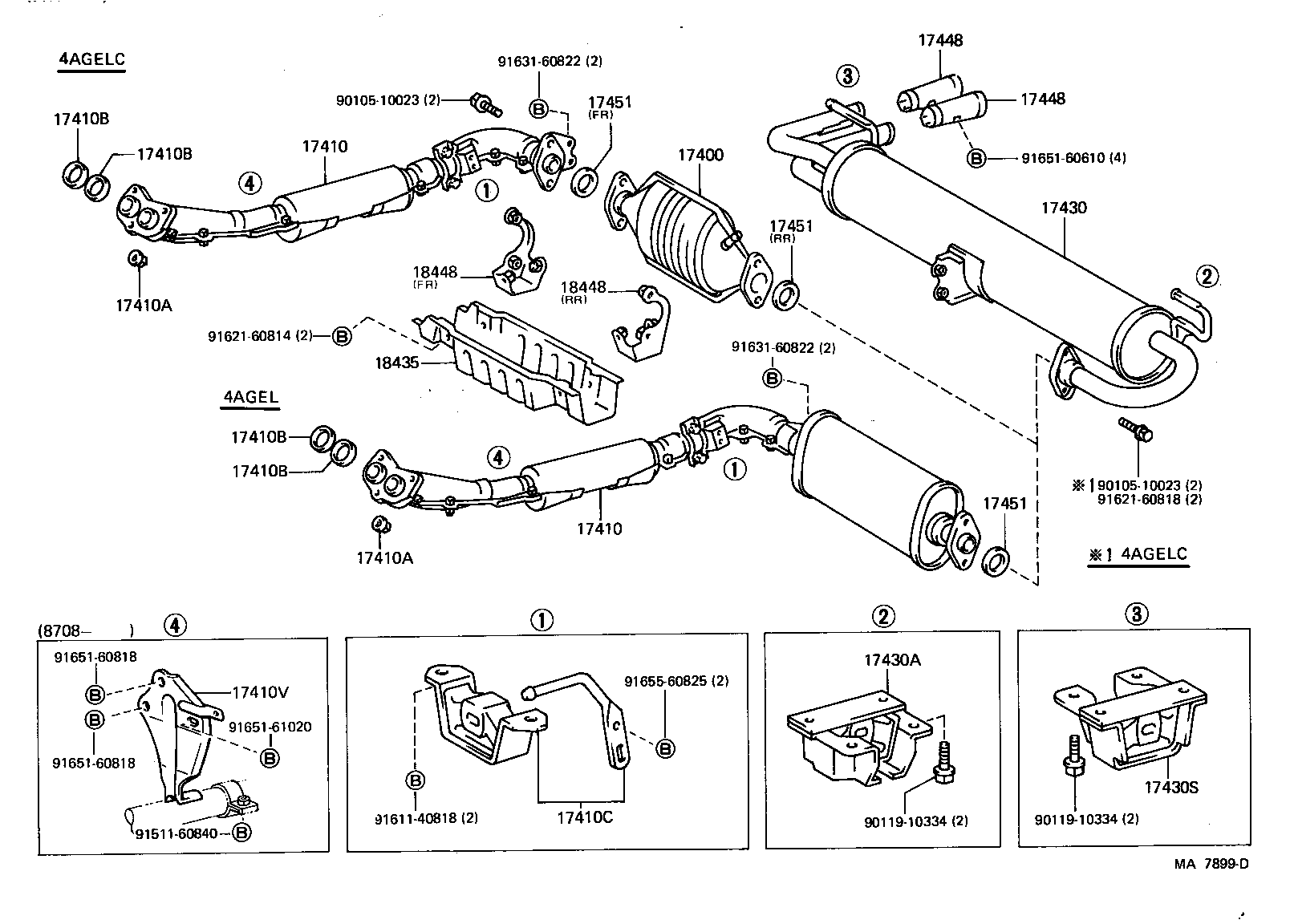

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10023 | ||||
| 90119-10334 | ||||
| 90179-08009 | ||||
| 91511-60840 | ||||
| 91611-40818 | ||||
| 91621-60814 | ||||
| 91631-60822 | ||||
| 91651-60610 | ||||
| 91651-60818 | ||||
| 91651-61020 | ||||
| 91655-60825 | ||||
