YR31RG-MQEQ (1986)

Toyota Model-F

Production Jan 1986 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

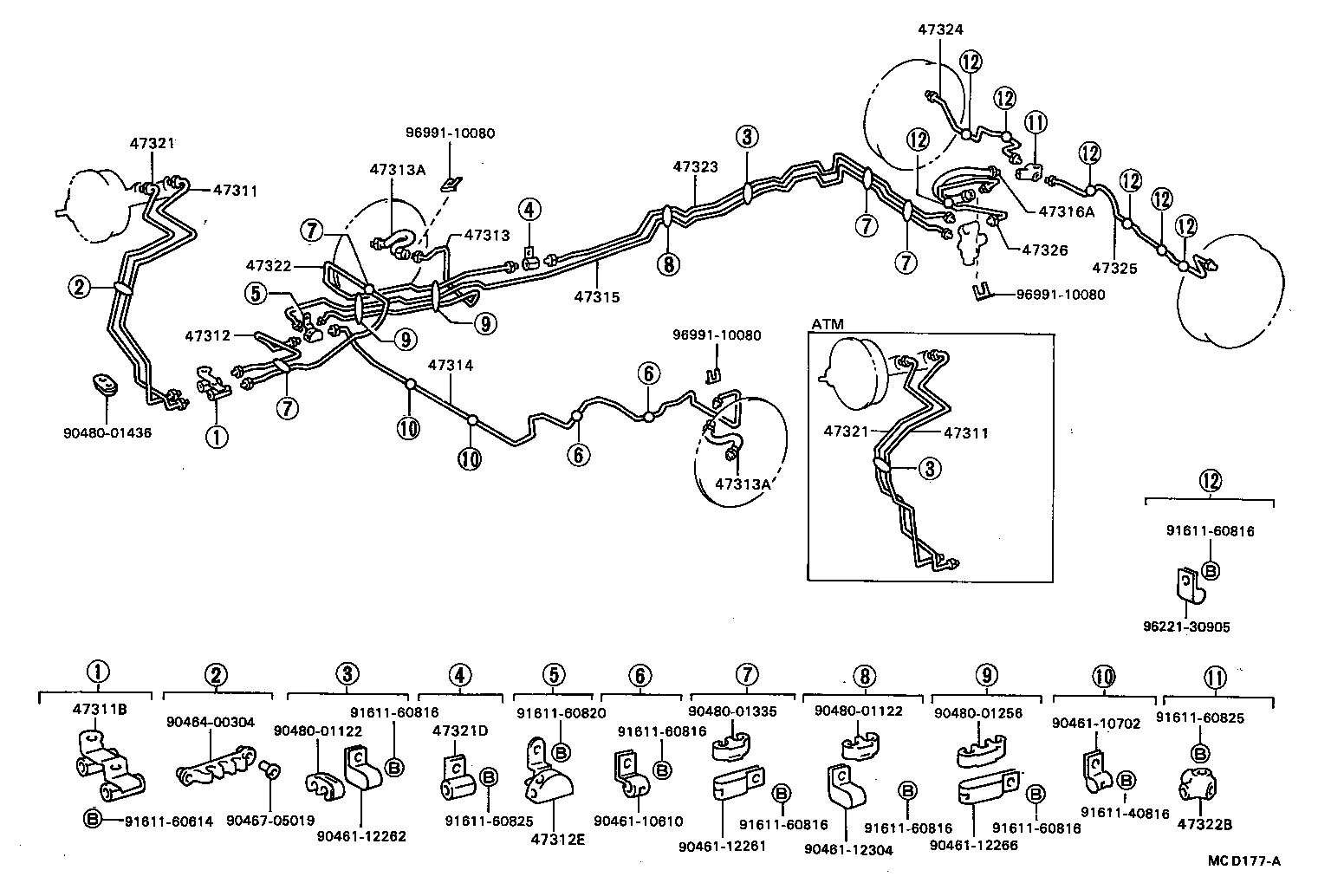

ILLUST NO. 1 OF 2(8601- )YR31..ARL

Click highlighted areas on diagram

diagram 47311 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321 47321D 47322 47322B 47323 47324 47325 47326 9046110610 9046110702 9046112261 9046112262 9046112266 9046112304 9046400304 9046705019 9048001122 9048001122 9048001256 9048001335 9048001436 9161140816 9161160614 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9161160825 9161160825 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10097

CR21,YR2#,31

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10014

YR31..ARL

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28070

YR31..ARL

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33055

YR31

 2
90947-02505

YR31..ARL

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33055

YR31

 2
90947-02505

YR31..ARL

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-28070

YR31..ARL

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-28080

YR31..ARL

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33605

YR31..ARL

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10133

YR31..ARL

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28090

YR31..ARL

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10130

CR21,YR2#,31

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28170

YR31..ARL

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28090

YR31

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-28110

YR31

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-28060

CR21,YR2#,31

 1
Common parts
90461-10610
90461-10702
90461-12261
90461-12262
90461-12266
90461-12304
90464-00304
90467-05019
90480-01122
90480-01256
90480-01335
90480-01436
91611-40816
91611-60614
91611-60816
91611-60820
91611-60825
96221-30905
96991-10080
