YR31RG-MQEQ (1986)
Toyota Model-F
(8608- )YR31 ; (8608- )YR31 ; (8708- )YR2# ; (8708- )YR2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

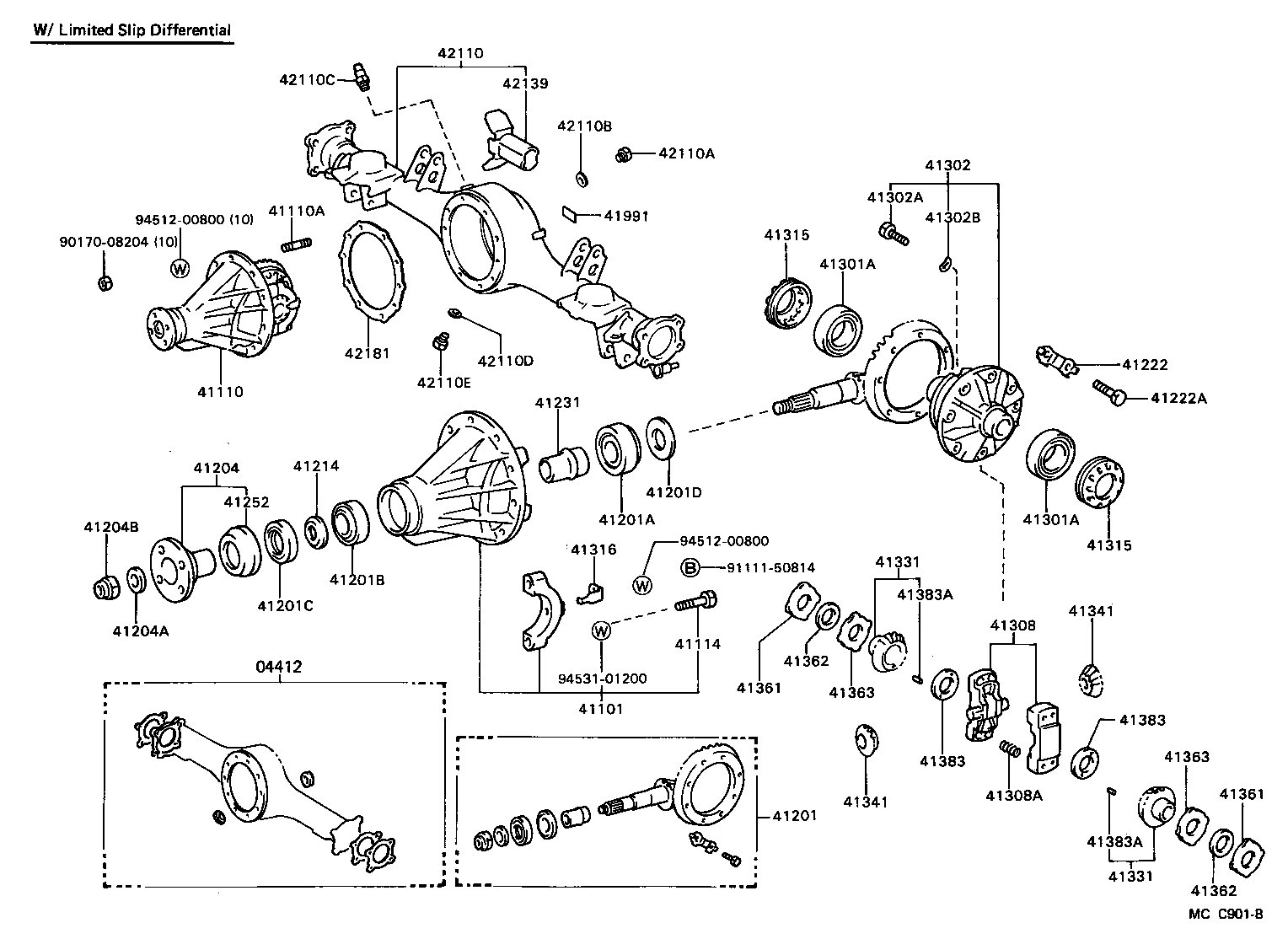

| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-28070 |
YR31..5F *FGR=43:10=4.300,R=43:10,*AXC=E282 |
1 | ||
| 41110-28100 |
YR31..5F *FGR=43:10=4.300,R=43:10,*AXC=F283 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
CR21,YR2#,31 S=12 & 15,L=34 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CR21,YR2#,31 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39565 |
YR31..5F *FGR=43:10=4.300,R=43:10,*AXC=E282 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CR21,YR2#,31 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
CR21,YR2#,31 T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35402 |
CR21,YR2#,31 T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35400 |
CR21,YR2#,31 T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35403 |
CR21,YR2#,31 T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35399 |
CR21,YR2#,31 T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35436 |
CR21,YR2#,31 T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35434 |
CR21,YR2#,31 T=2.24,MARK 01,T=2.24 |
1 | ||
| 90201-35404 |
CR21,YR2#,31 T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35398 |
CR21,YR2#,31 T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35439 |
CR21,YR2#,31 T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-35397 |
CR21,YR2#,31 T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35435 |
CR21,YR2#,31 T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-35437 |
CR21,YR2#,31 T=2.33,MARK 04,T=2.33 |
1 | ||
| 90201-35440 |
CR21,YR2#,31 T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35441 |
CR21,YR2#,31 T=2.72,MARK 17,T=2.72 |
1 | ||
| 90201-35401 |
CR21,YR2#,31 T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35438 |
CR21,YR2#,31 T=2.63,MARK 14,T=2.63 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CR21,YR2#,31 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CR21,YR2#,31 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CR21,YR2#,31 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CR21,YR2#,31 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
YR31 W/LSD |
2 | ||
| 90368-45011 |
CR21,YR2#,31 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
YR31 W/LSD |
2 | ||
| 90368-45011 |
CR21,YR2#,31 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-22011 |
YR31 W/LSD |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-10195 |
YR31 |
8 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90206-10045 |
YR31 |
8 | ||
| 41308 - MEMBER KIT, CLUTCH | ||||
| 41308-22022 |
YR31 W/LSD |
1 | ||
| 41308A - SPRING, COMPRESSION (FOR CLUTCH MEMBER) | ||||
| 90501-26644 |
YR31 |
4 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
CR21,YR2#,31 SINGLE TYPE |
2 | ||
| 41317-30010 |
CR21,YR2#,31 DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41305-22010 |
YR31 W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41305-22010 |
YR31 W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-14031 |
YR31 W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-14031 |
YR31 W/LSD |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28020 |
YR31 T=1.76,MARK 1,W/LSD,T=1.76,MARK 1 |
2 | ||
| 41361-28070 |
YR31 T=1.96,MARK 6,W/LSD,T=1.96,MARK 6 |
2 | ||
| 41361-28050 |
YR31 T=1.88,MARK 4,W/LSD,T=1.88,MARK 4 |
2 | ||
| 41361-28060 |
YR31 T=1.92,MARK 5,W/LSD,T=1.92,MARK 5 |
2 | ||
| 41361-28030 |
YR31 T=1.80,MARK 2,W/LSD,T=1.80,MARK 2 |
2 | ||
| 41361-28040 |
YR31 T=1.84,MARK 3,W/LSD,T=1.84,MARK 3 |
2 | ||
| 41361-28080 |
YR31 T=2.00,MARK 7,W/LSD,T=2.00,MARK 7 |
2 | ||
| 41361-28110 |
YR31 T=2.12,MARK 0,W/LSD,T=2.12,MARK 0 |
2 | ||
| 41361-28090 |
YR31 T=2.04,MARK 8,W/LSD,T=2.04,MARK 8 |
2 | ||
| 41361-28100 |
YR31 T=2.08,MARK 9,W/LSD,T=2.08,MARK 9 |
2 | ||
| 41361-28150 |
YR31 T=1.84,MARK C,W/LSD,T=1.84,MARK C |
2 | ||
| 41361-28190 |
YR31 T=2.00,MARK G,W/LSD,T=2.00,MARK G |
2 | ||
| 41361-28130 |
YR31 T=1.76,MARK A,W/LSD,T=1.76,MARK A |
2 | ||
| 41361-28140 |
YR31 T=1.80,MARK B,W/LSD,T=1.80,MARK B |
2 | ||
| 41361-28180 |
YR31 T=1.96,MARK F,W/LSD,T=1.96,MARK F |
2 | ||
| 41361-28210 |
YR31 T=2.08,MARK J,W/LSD,T=2.08,MARK J |
2 | ||
| 41361-28220 |
YR31 T=2.12,MARK K,W/LSD,T=2.12,MARK K |
2 | ||
| 41361-28170 |
YR31 T=1.92,MARK E,W/LSD,T=1.92,MARK E |
2 | ||
| 41361-28160 |
YR31 T=1.88,MARK D,W/LSD,T=1.88,MARK D |
2 | ||
| 41361-28200 |
YR31 T=2.04,MARK H,W/LSD,T=2.04,MARK H |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28020 |
YR31 T=1.76,MARK 1,W/LSD,T=1.76,MARK 1 |
2 | ||
| 41361-28070 |
YR31 T=1.96,MARK 6,W/LSD,T=1.96,MARK 6 |
2 | ||
| 41361-28050 |
YR31 T=1.88,MARK 4,W/LSD,T=1.88,MARK 4 |
2 | ||
| 41361-28060 |
YR31 T=1.92,MARK 5,W/LSD,T=1.92,MARK 5 |
2 | ||
| 41361-28030 |
YR31 T=1.80,MARK 2,W/LSD,T=1.80,MARK 2 |
2 | ||
| 41361-28040 |
YR31 T=1.84,MARK 3,W/LSD,T=1.84,MARK 3 |
2 | ||
| 41361-28080 |
YR31 T=2.00,MARK 7,W/LSD,T=2.00,MARK 7 |
2 | ||
| 41361-28110 |
YR31 T=2.12,MARK 0,W/LSD,T=2.12,MARK 0 |
2 | ||
| 41361-28090 |
YR31 T=2.04,MARK 8,W/LSD,T=2.04,MARK 8 |
2 | ||
| 41361-28100 |
YR31 T=2.08,MARK 9,W/LSD,T=2.08,MARK 9 |
2 | ||
| 41361-28150 |
YR31 T=1.84,MARK C,W/LSD,T=1.84,MARK C |
2 | ||
| 41361-28190 |
YR31 T=2.00,MARK G,W/LSD,T=2.00,MARK G |
2 | ||
| 41361-28130 |
YR31 T=1.76,MARK A,W/LSD,T=1.76,MARK A |
2 | ||
| 41361-28140 |
YR31 T=1.80,MARK B,W/LSD,T=1.80,MARK B |
2 | ||
| 41361-28180 |
YR31 T=1.96,MARK F,W/LSD,T=1.96,MARK F |
2 | ||
| 41361-28210 |
YR31 T=2.08,MARK J,W/LSD,T=2.08,MARK J |
2 | ||
| 41361-28220 |
YR31 T=2.12,MARK K,W/LSD,T=2.12,MARK K |
2 | ||
| 41361-28170 |
YR31 T=1.92,MARK E,W/LSD,T=1.92,MARK E |
2 | ||
| 41361-28160 |
YR31 T=1.88,MARK D,W/LSD,T=1.88,MARK D |
2 | ||
| 41361-28200 |
YR31 T=2.04,MARK H,W/LSD,T=2.04,MARK H |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41385-28010 |
YR31 N=20 |
2 | ||
| 41385-28020 |
YR31 N=18 |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41385-28010 |
YR31 N=20 |
2 | ||
| 41385-28020 |
YR31 N=18 |
2 | ||
| 41363 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.3 | ||||
| 41361-28010 |
YR31 T=2.5,OD=83.0 |
2 | ||
| 41361-28120 |
YR31 T=2.5,OD=81.54 |
2 | ||
| 41363 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.3 | ||||
| 41361-28010 |
YR31 T=2.5,OD=83.0 |
2 | ||
| 41361-28120 |
YR31 T=2.5,OD=81.54 |
2 | ||
| 41383 - WASHER, CLUTCH MEMBER THRUST | ||||
| 41383-22011 |
YR31 |
2 | ||
| 41383 - WASHER, CLUTCH MEMBER THRUST | ||||
| 41383-22011 |
YR31 |
2 | ||
| 41383A - PIN (FOR CLUTCH MEMBER THRUST WASHER STOP) | ||||
| 90250-05202 |
YR31 OD=4.45-4.55,OD=4.445-4.55 |
2 | ||
| 90250-05218 |
YR31 OD=4.525-4.625,OD=4.525-4.625 |
2 | ||
| 41383A - PIN (FOR CLUTCH MEMBER THRUST WASHER STOP) | ||||
| 90250-05202 |
YR31 OD=4.45-4.55,OD=4.445-4.55 |
2 | ||
| 90250-05218 |
YR31 OD=4.525-4.625,OD=4.525-4.625 |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
YR31 W/LSD |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-28160 |
YR31 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
CR21,YR2#,31 |
1 | ||
| 90341-18049 |
CR21,YR2#,31 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
CR21,YR2#,31 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
CR21,YR2#,31 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
CR21,YR2#,31 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
