YR31LG-MQEW (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

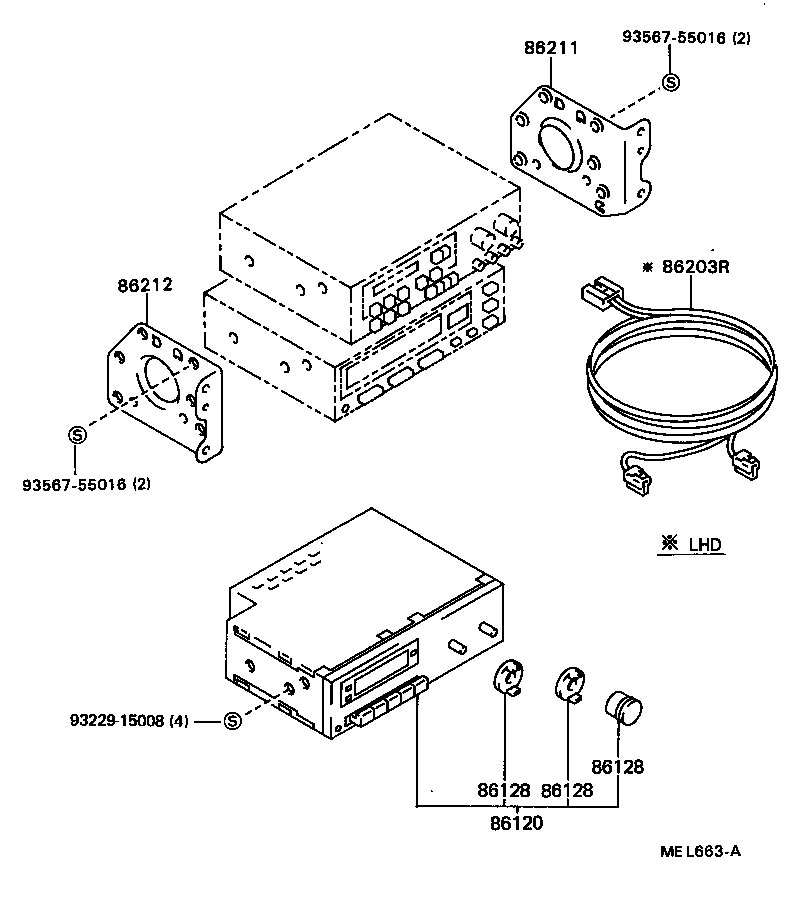

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32102 |
YR2#,31 MATSUSHITA,LW/MW/UKW MPX ETR CASSETTE 2-SPEAKERS(OPT) |
1 | ||
| 86120-32241 |
YR2#,31 FUJITSU TEN,LW/MW/UKW ETR 2-SPEAKERS(OPT) |
1 | ||
| 86120-32111 |
YR2#,31 FUJITSU TEN,LW/MW/UKW MPX ETR 2-SPEAKERS(OPT) |
1 | ||
| 86120-32261 |
YR2#,31 LW/MW/UKW MPX ETR CASSETTE 5-SPEAKERS(OPT) |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-32310 |
YR2#,31 VOL/TREB |
2 | ||
| 86128-32060 |
YR2#,31 PWR/VOL |
1 | ||
| 86128-32080 |
YR2#,31 TUNE |
1 | ||
| 86128-32330 |
YR2#,31 BASS/FADE |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-32310 |
YR2#,31 VOL/TREB |
2 | ||
| 86128-32060 |
YR2#,31 PWR/VOL |
1 | ||
| 86128-32080 |
YR2#,31 TUNE |
1 | ||
| 86128-32330 |
YR2#,31 BASS/FADE |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-32310 |
YR2#,31 VOL/TREB |
2 | ||
| 86128-32060 |
YR2#,31 PWR/VOL |
1 | ||
| 86128-32080 |
YR2#,31 TUNE |
1 | ||
| 86128-32330 |
YR2#,31 BASS/FADE |
2 | ||
| 86203R - WIRE SUB-ASSY, RR | ||||
| 86205-28010 |
YR2#,31..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-87003 |
YR2#,31..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-87002 |
YR2#,31..LHD |
1 | ||
| Common parts | ||||
| 93229-15008 | ||||
| 93567-55016 | ||||
