YR31LG-MQEW (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

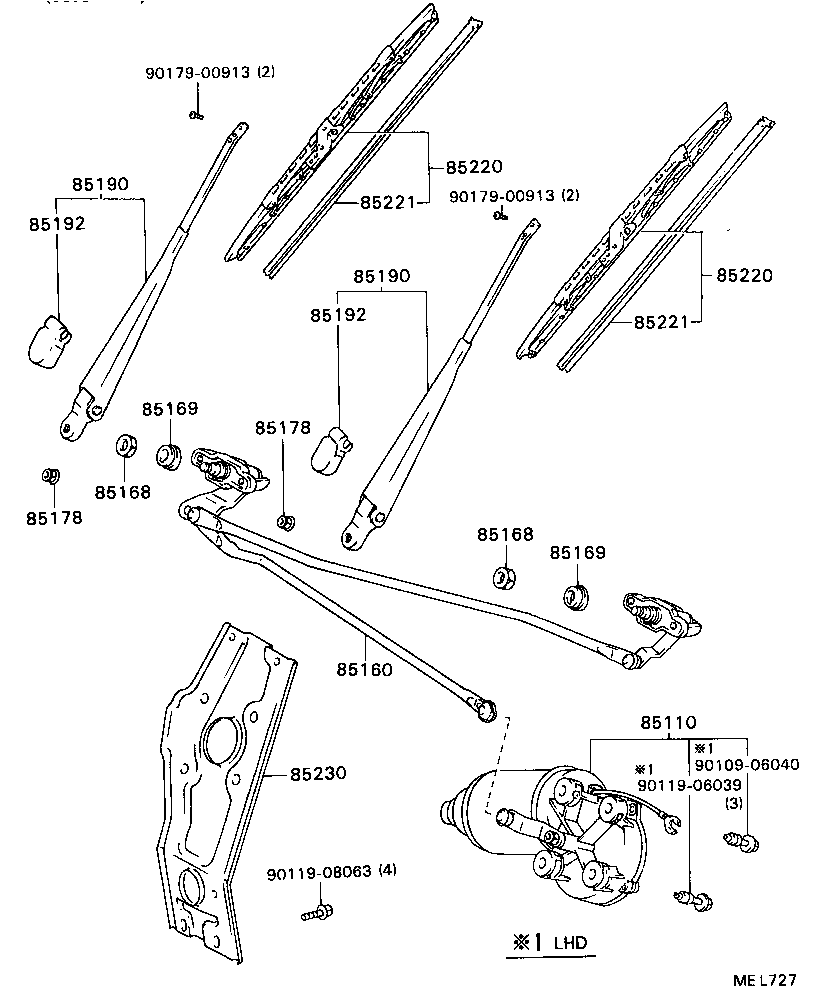

Click highlighted areas on diagram

diagram 85110 85160 85168 85168 85169 85169 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 85230 9010906040 9011906039 9011908063 9017900913 9017900913
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-28011

YR2#,31..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-28010

YR2#,31..LHD

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

YR2#,31

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

YR2#,31

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-87002

YR2#,31

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-87002

YR2#,31

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

YR2#,31

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

YR2#,31

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-28030

YR2#,31..LHD

LH

 1
85210-28020

YR2#,31..LHD

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-28030

YR2#,31..LHD

LH

 1
85210-28020

YR2#,31..LHD

RH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

YR2#,31

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

YR2#,31

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16270

YR2#,31..LHD

RH

 1
85220-16340

YR2#,31..LHD

LH

 1
85220-16880

YR2#,31..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16270

YR2#,31..LHD

RH

 1
85220-16340

YR2#,31..LHD

LH

 1
85220-16880

YR2#,31..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

YR2#,31..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

YR2#,31..LHD

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85231-28010

YR2#,31..LHD

 1
Common parts
90109-06040
90119-06039
90119-08063
90179-00913
