YR31LG-MQEW (1988)
Toyota Model-F
(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2802016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55301-2802013 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-28030 |
YR2#,31..LHD |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-28010 |
YR2#,31..LHD |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28010 |
YR2#,31..LHD |
1 | ||
| 55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER | ||||
| 55307-87001 |
YR2#,31 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55316-87001 |
YR2#,31 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-28040 |
YR2#,31..LHD |
1 | ||
| 55358F - PROTECTOR, EDGE | ||||
| 55358-28010 |
YR2#,31..LHD |
4 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-2803003 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-2803016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-2801016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55404-2801003 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-2801101 |
YR2#,31..LHD BLACK,TRIM1#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-2802016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55408-2802013 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87001 |
YR2#,31 |
2 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87001 |
YR2#,31 |
2 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8700513 |
YR2#,31..GL SHADOW GRAY,TRIM1# |
1 | ||
| 55432-8700516 |
YR2#,31..GL SABLE,TRIM4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-87001 |
YR2#,31 |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-2801013 |
YR2#,31..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 55511-2801016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-87002 |
YR2#,31 |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-20060 |
YR2#,31..LHD |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55423-2802016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55423-2802003 |
YR2#,31..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
YR2#,31 BLACK,TRIM1#,4# |
1 | ||
| 55539-87005 |
YR2#,31 |
1 | ||
| 55541B - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55541-28010 |
YR2#,31..LHD |
1 | ||
| 55542B - RETAINER, RADIO TUNER OPENING, NO.2 | ||||
| 55542-28010 |
YR2#,31..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
YR2#,31 |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-87001 |
YR2#,31 RH |
1 | ||
| 55573-32010 |
YR2#,31 LH |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-87001 |
YR2#,31 RH |
1 | ||
| 55573-32010 |
YR2#,31 LH |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-87002 |
YR2#,31..LHD |
1 | ||
| 55648 - SEAL, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55648-87001 |
YR2#,31..GL |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-2803003 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-2803016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2803016 |
YR2#,31..LHD..GL SABLE,TRIM4# |
1 | ||
| 55660-2803003 |
YR2#,31..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-8700303 |
YR2#,31 SHADOW GRAY,TRIM1# |
1 | ||
| 55670-8700316 |
YR2#,31..GL SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90044-67063 | ||||
| 90105-08147 | ||||
| 90119-06042 | ||||
| 90119-06048 | ||||
| 90119-08063 | ||||
| 90151-40005 | ||||
| 90159-50212 | ||||
| 90161-26007 | ||||
| 90167-50014 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90254-04016 | ||||
| 90463-05001 | ||||
| 90468-05049 | ||||
| 90541-03015 | ||||
| 91611-60816 | ||||
| 93385-16016 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||

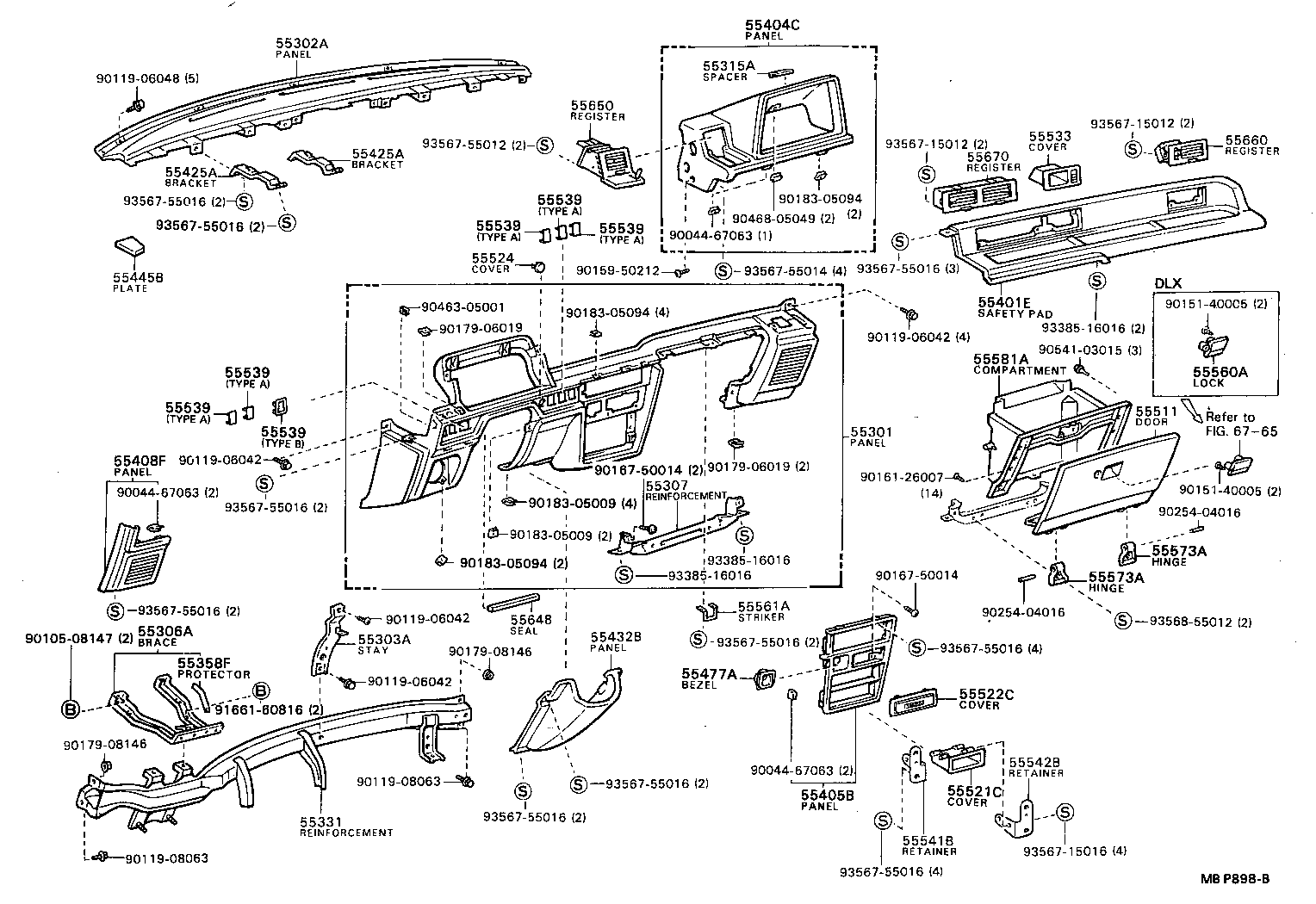

| Linked diagrams | ||||
| 6765 | ||||
