YR31LG-MQEW (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

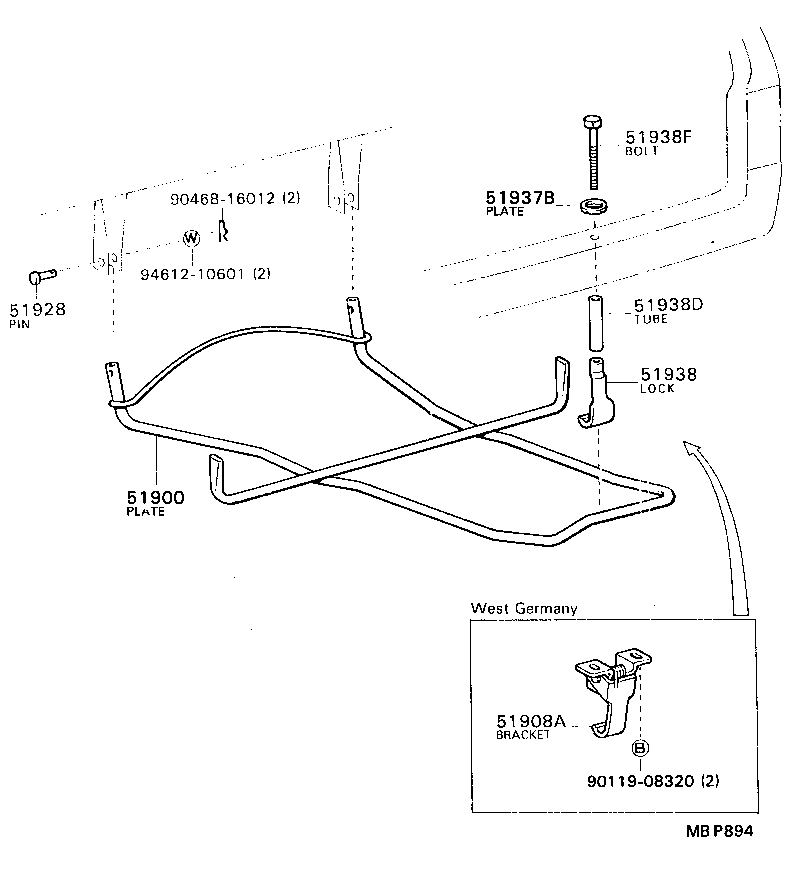

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-28120 |
YR31 |
1 | ||
| 51928 - PIN, SPARE WHEEL CARRIER | ||||
| 90240-06002 |
YR2#,31 |
2 | ||
| 51937B - PLATE, SPARE WHEEL CARRIER LOCK | ||||
| 51937-26010 |
YR2#,31 |
1 | ||
| 51938 - LOCK, SPARE WHEEL CARRIER | ||||
| 51938-27070 |
YR2#,31 |
1 | ||
| 51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT) | ||||
| 90440-17032 |
YR31 |
1 | ||
| 51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK) | ||||
| 90101-12094 |
YR31 |
1 | ||
| Common parts | ||||
| 90119-08320 | ||||
| 90468-16012 | ||||
| 94612-10601 | ||||
