YR31LG-MQEW (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

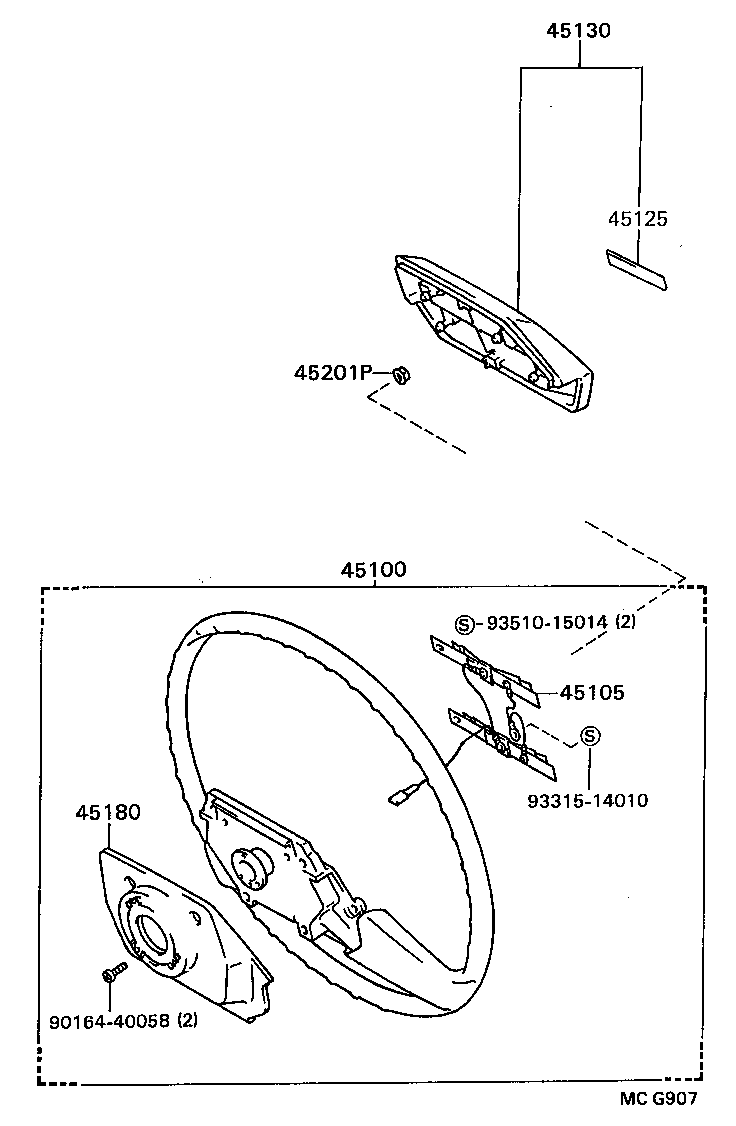

Click highlighted areas on diagram

diagram 45100 45105 45125 45130 45180 45201P 9016440058 9331514010 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3204003

YR2#,31

SHADOW GRAY,TRIM1#

 1
45100-3204006

YR2#,31..GL

BROWN,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32030

YR2#,31

 1
45125 - MARK, STEERING WHEEL PAD
45125-28110

YR2#,31

 1
45130 - BUTTON ASSY, HORN
45130-2806016

YR2#,31..GL

BROWN,TRIM4#

 1
45130-2806003

YR2#,31

GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-3202006

YR2#,31..GL

BROWN,TRIM4#

 1
45180-3202003

YR2#,31

SHADOW GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

YR2#,31

 1
Common parts
90164-40058
93315-14010
93510-15014
