YR31LG-MQEW (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

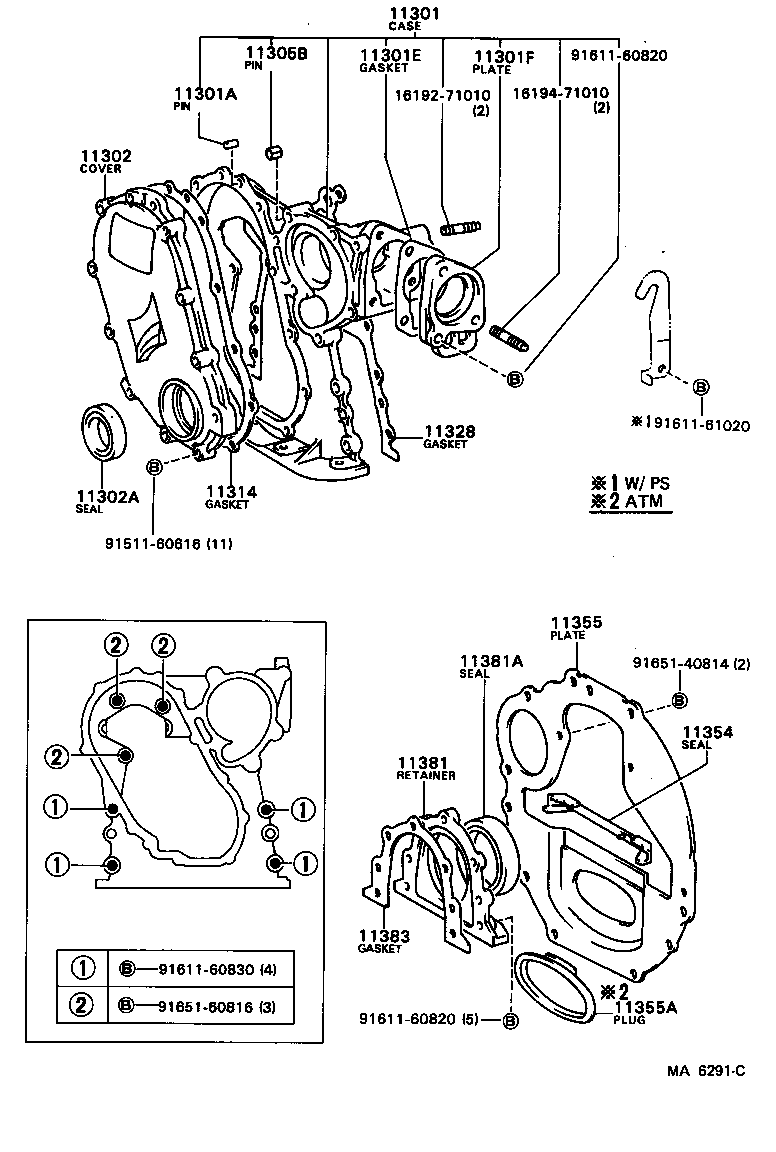

Click highlighted areas on diagram

diagram 11301 11301A 11301E 11301F 11302 11302A 11305B 11314 11328 11354 11355 11355A 11381 11381A 11383 1619271010 1619471010 9151160616 9161160820 9161160820 9161160830 9161161020 9165140814 9165160816
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-71010

3Y,4YEC..YR2#,31

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06001

3Y,4YEC..YR2#,31

L=14,OD=6

 2
11301E - GASKET, THERMOSTAT GUIDE
16119-71010

3Y,4YEC..YR2#,31

 1
11301F - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-71010

3Y,4YEC..YR2#,31

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-71010

3Y,4YEC..YR2#,31

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-42019

3Y,4YEC..YR2#,31

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
16159-71010

3Y,4YEC..YR2#,31

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11329-71010

3Y,4YEC..YR2#,31

 1
11329-71011

3Y,4YEC..YR2#,31

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-71012

3Y,4YEC..YR2#,31

 1
11328-71011

3Y,4YEC..YR2#,31

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-71010

3Y,4YEC..YR2#,31

 1
11355 - PLATE, REAR END
11355-71010

3Y,4YEC..YR2#,31..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-71010

3Y,4YEC..YR2#,31

 1
11381A - SEAL, ENGINE REAR OIL
90311-80003

3Y,4YEC..YR2#,31

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

3Y,4YEC..YR2#,31

 1
11383-71010

3Y,4YEC..YR2#,31

 1
Common parts
16192-71010
16194-71010
91511-60616
91611-60820
91611-60830
91611-61020
91651-40814
91651-60816
