YR31LG-MDEW (1988)
Toyota Model-F

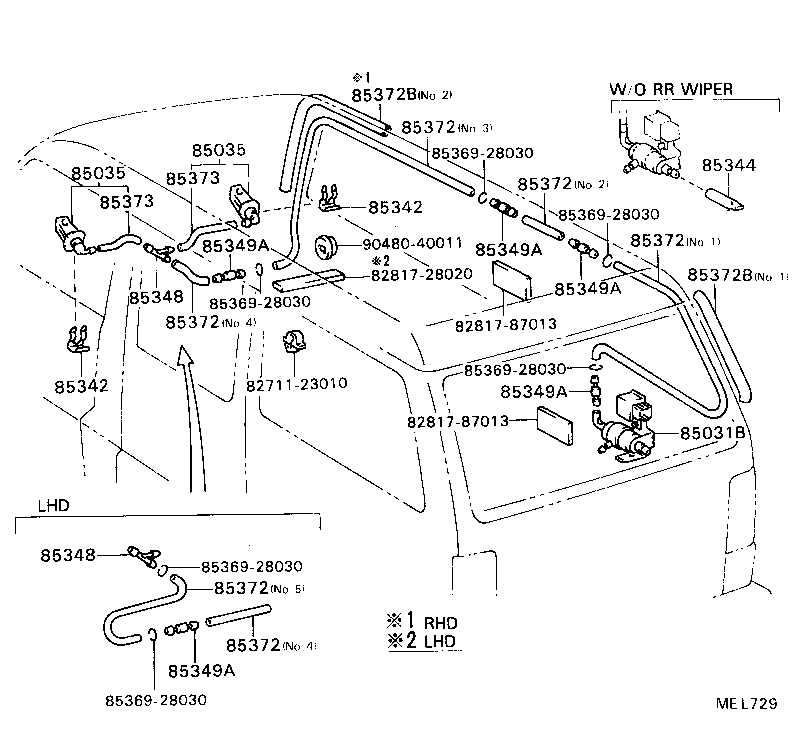

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-87001 |
YR2#,31 |
1 | ||
| 85031-87002 |
YR2#,31 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-28040 |
YR2#,31..LHD RH |
1 | ||
| 85035-28050 |
YR2#,31..LHD LH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-28040 |
YR2#,31..LHD RH |
1 | ||
| 85035-28050 |
YR2#,31..LHD LH |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J00 |
YR2#,31 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J00 |
YR2#,31 |
2 | ||
| 85344 - TUBE, WINDSHIELD WASHER HOSE, STOP | ||||
| 85344-30010 |
YR2#,31..DLX |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-40010 |
YR2#,31..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-40010 |
YR2#,31..LHD |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-20010 |
YR2#,31..LHD |
4 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-20010 |
YR2#,31..LHD |
4 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-20010 |
YR2#,31..LHD |
4 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-20010 |
YR2#,31..LHD |
4 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-20010 |
YR2#,31..LHD |
4 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-08007 |
YR2#,31..LHD *H,L=870,NO.5 |
1 | ||
| 85354-28021 |
YR2#,31..LHD L=2330,NO.3 |
1 | ||
| 85354-87001 |
YR2#,31 L=2250,NO.1 |
1 | ||
| 90099-33075 |
YR2#,31 *H,L=40,NO.2 & NO.4 |
2 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85343-87004 |
YR2#,31 L=500,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85343-87004 |
YR2#,31 L=500,NO.1 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
YR2#,31..LHD *H,L=360,LH,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
YR2#,31..LHD *H,L=360,LH,RH |
1 | ||
| Common parts | ||||
| 82711-23010 | ||||
| 82817-28020 | ||||
| 82817-87013 | ||||
| 85369-28030 | ||||
| 90480-40011 | ||||

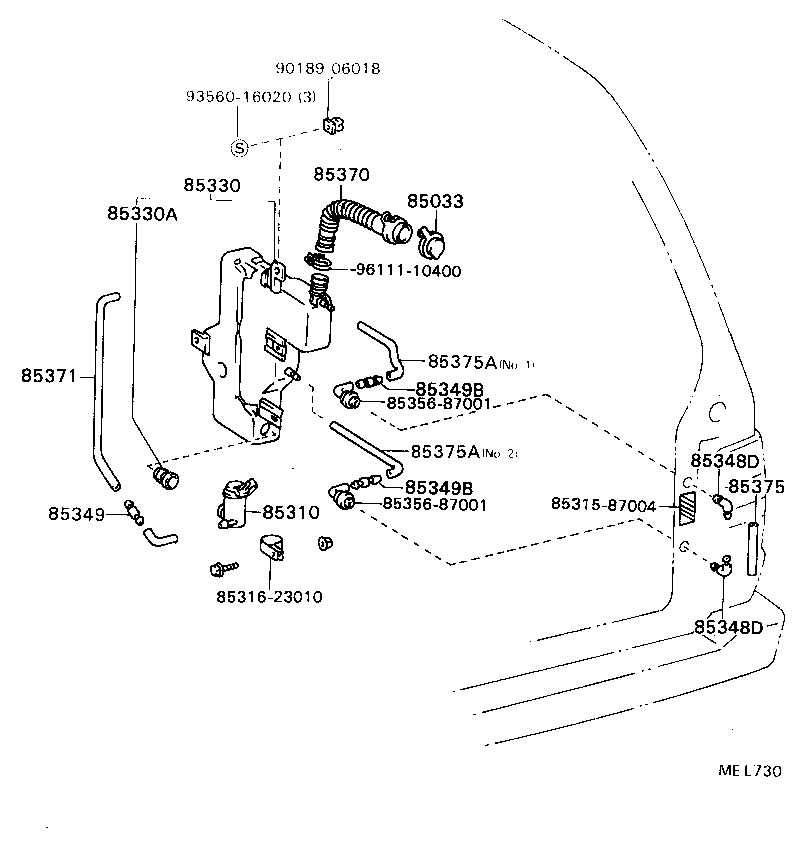

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-28021 |
YR2#,31 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
YR2#,31 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-87005 |
YR2#,31 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
YR2#,31 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
YR2#,31 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
YR2#,31 |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
YR2#,31 |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
YR2#,31 |
2 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
YR2#,31 |
2 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-87002 |
YR2#,31 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
YR2#,31 *H,L=360 |
1 | ||
| 85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE) | ||||
| 90446-06013 |
YR2#,31 *H,L=160 |
1 | ||
| 85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE) | ||||
| 90099-33299 |
YR2#,31 *H,L=300,NO.1,NO.2 |
1 | ||
| 85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE) | ||||
| 90099-33299 |
YR2#,31 *H,L=300,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 85315-87004 | ||||
| 85316-23010 | ||||
| 85356-87001 | ||||
| 90189-06018 | ||||
| 93560-16020 | ||||
| 96111-10400 | ||||
