YR31LG-MDEW (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )YR22,31

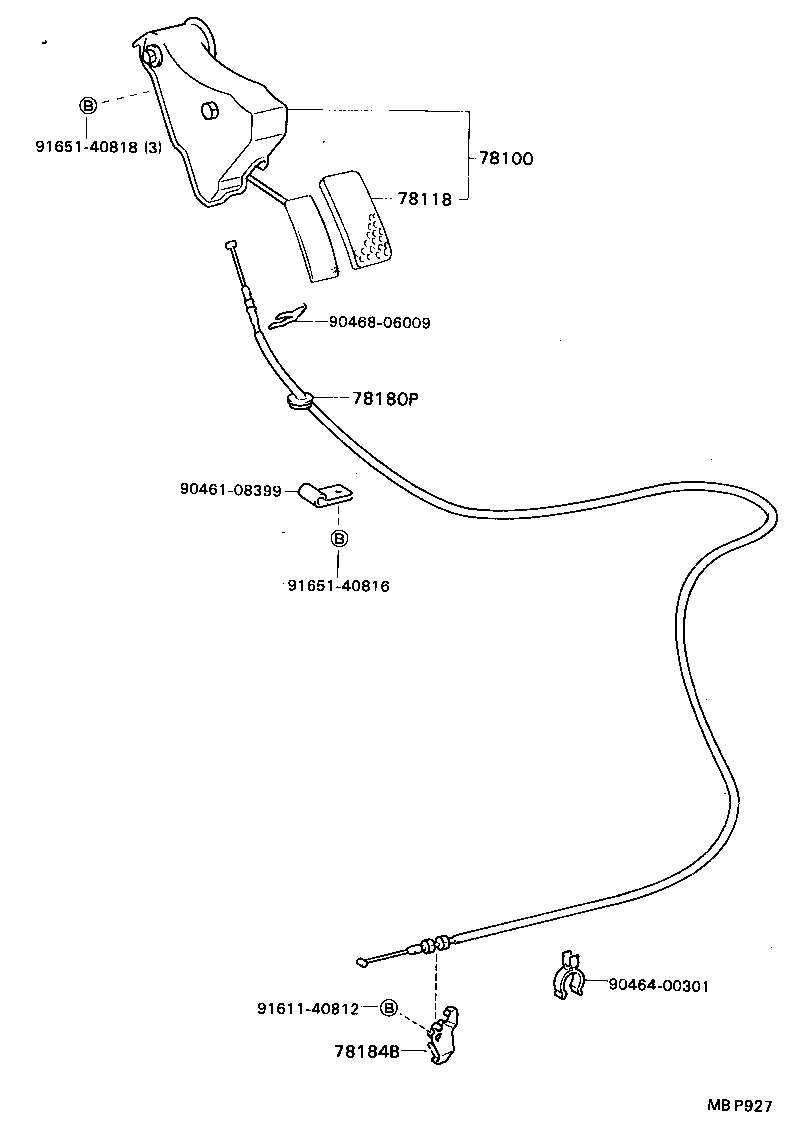

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78105-28040 |
YR22,31 |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
YR2#,31 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-28030 |
YR22,31 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-87005 |
YR22,31 |
1 | ||
| Common parts | ||||
| 90461-08399 | ||||
| 90464-00301 | ||||
| 90468-06009 | ||||
| 91611-40812 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
