YR31LG-MDEW (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

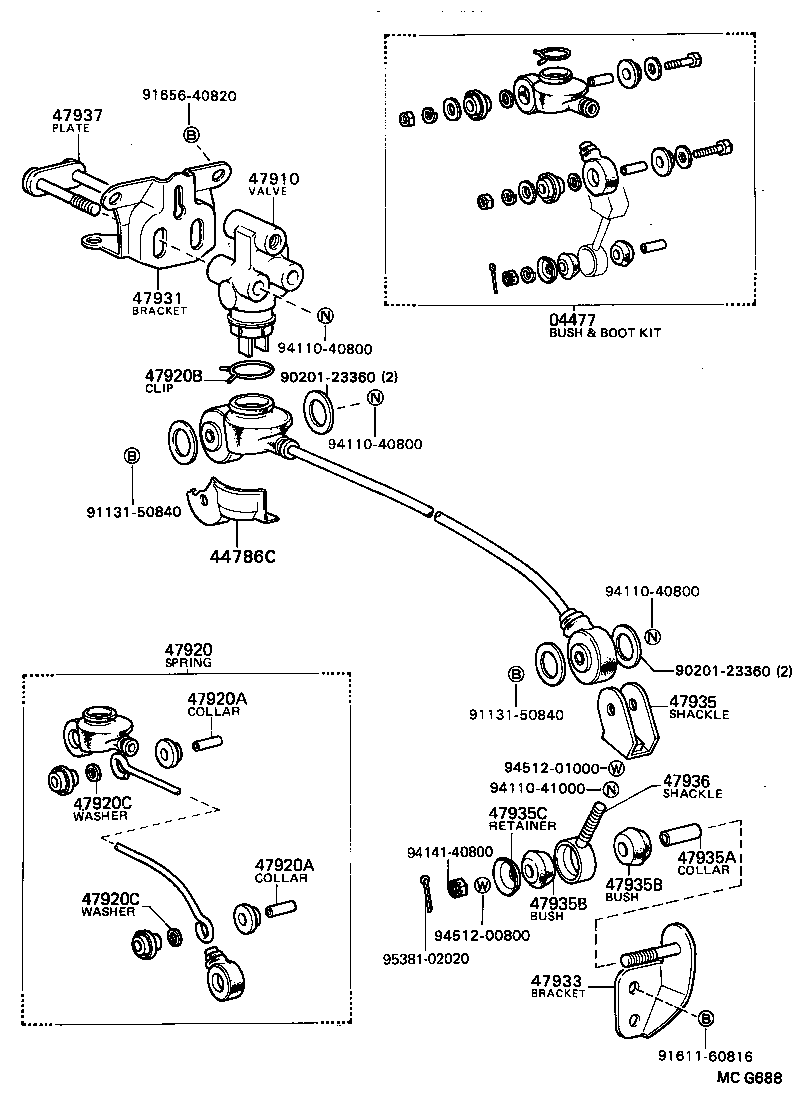

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
YR2#,31 |
1 | ||
| 44786C - INSULATOR, LOAD SENSING VALVE HEAT | ||||
| 44786-28040 |
YR2#,31 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-28080 |
YR2#,31 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-28050 |
YR31 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
YR2#,31 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
YR2#,31 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
YR2#,31 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
YR2#,31 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
YR2#,31 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-28020 |
YR2#,31 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-28020 |
YR2#,31 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
YR2#,31 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
YR2#,31 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
YR2#,31 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
YR2#,31 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
YR2#,31 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-28010 |
YR2#,31 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
YR2#,31 |
1 | ||
| Common parts | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

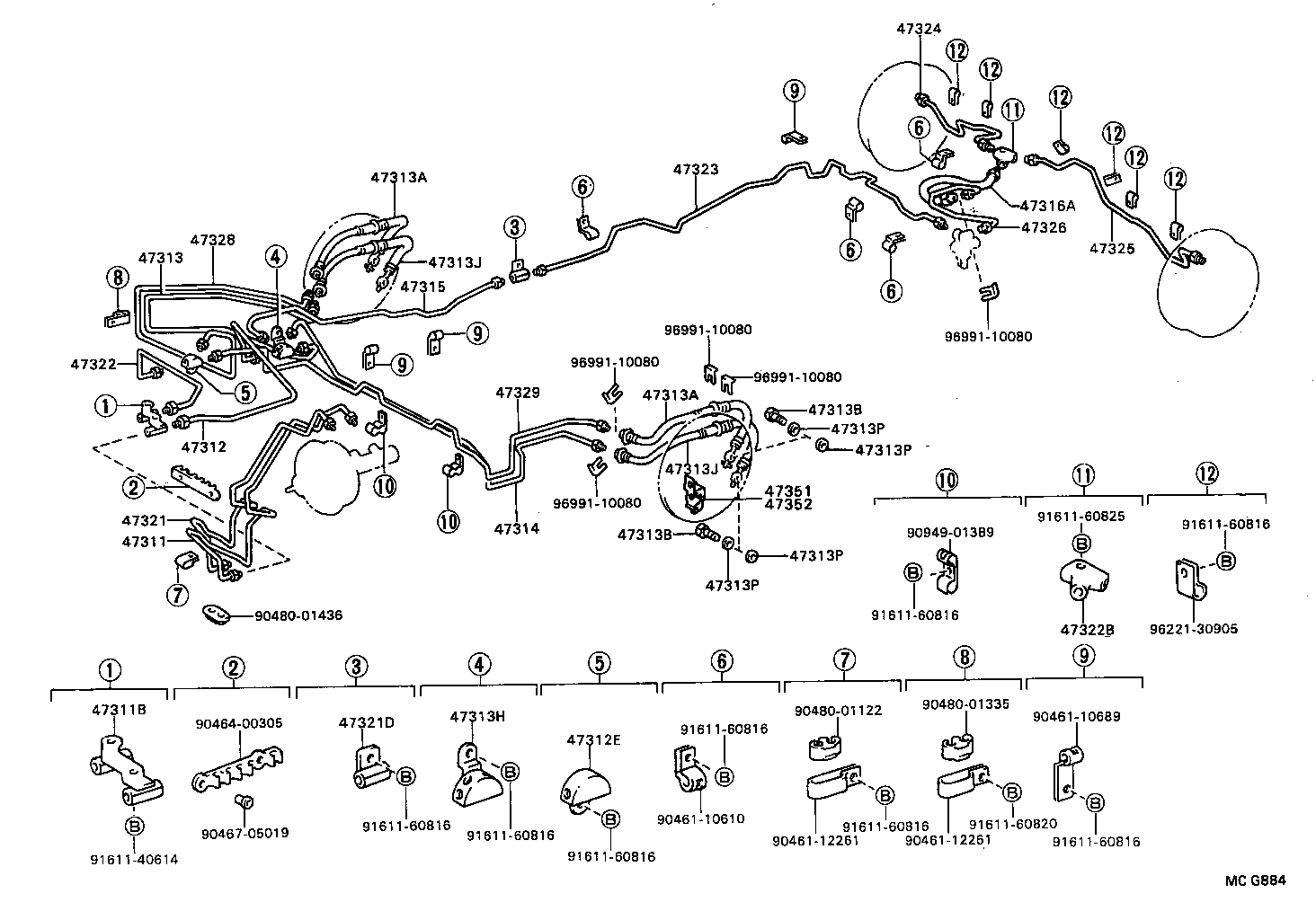

ILLUST NO. 1 OF 2(8808- )YR31
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28200 |
YR22..GL;YR21,31..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10097 |
YR2#,31 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28110 |
YR31 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10025 |
YR31 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28080 |
YR31 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02506 |
YR31 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02506 |
YR31 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
YR2#,31 |
4 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
YR2#,31 |
4 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90414-10014 |
YR31 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02507 |
YR31 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02507 |
YR31 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
YR2#,31 |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
YR2#,31 |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
YR2#,31 |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
YR2#,31 |
8 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28080 |
YR31 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28050 |
YR31 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33606 |
YR31 |
1 | ||
| 90947-02523 |
YR31 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28200 |
YR22..GL;YR21,31..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10063 |
YR31 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28101 |
YR31 |
1 | ||
| 47322-28100 |
YR31 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10130 |
YR2#,31 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28160 |
YR31 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28110 |
YR31 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28110 |
YR31 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28060 |
YR2#,31 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-28020 |
YR31 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-28020 |
YR31 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-28040 |
YR31 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-28040 |
YR31 |
1 | ||
| Common parts | ||||
| 90461-10610 | ||||
| 90461-10689 | ||||
| 90461-12261 | ||||
| 90464-00305 | ||||
| 90467-05019 | ||||
| 90480-01122 | ||||
| 90480-01335 | ||||
| 90480-01436 | ||||
| 90949-01389 | ||||
| 91611-40614 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
