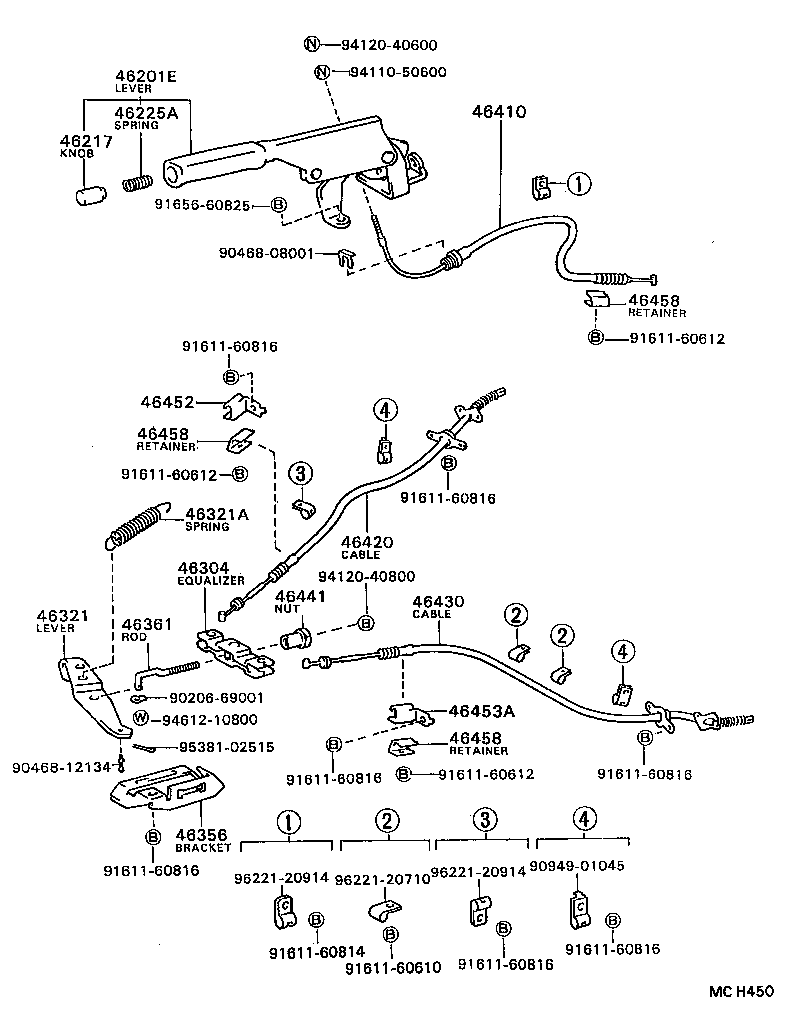

Toyota Model-f YR31 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2802203	YR2#,31..DLX SHADOW GRAY,TRIM1#	08/1988 - 01/1990	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1202003	YR2#,31 SHADOW GRAY,TRIM1#	08/1988 - 01/1990	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10132	YR2#,31	10/1988 - 01/1990	1
90501-10069	YR2#,31	08/1988 - 10/1988	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020	YR2#,31	08/1988 - 01/1990	1
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46321-28042	YR2#,31	08/1988 - 01/1990	1
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90506-11006	YR2#,31	08/1988 - 01/1990	1
46356 - BRACKET, EQUALIZER SUPPORT
46356-28030	YR2#,31	08/1988 - 01/1990	1
46361 - ROD, PARKING BRAKE PULL
46361-28031	YR2#,31	08/1988 - 01/1990	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-28073	YR2#,31..LHD	08/1988 - 01/1990	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-28130	YR31	08/1988 - 01/1990	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-28132	YR31	08/1988 - 01/1990	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010	YR2#,31	08/1988 - 01/1990	1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-28060	YR2#,31	08/1988 - 01/1990	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-28010	YR2#,31	08/1988 - 01/1990	1
46458 - RETAINER, CABLE
46458-28010	YR2#,31 FR CABLE	08/1988 - 01/1990	1
46458-28010	YR2#,31 RR CABLE	08/1988 - 01/1990	2
46458 - RETAINER, CABLE
46458-28010	YR2#,31 FR CABLE	08/1988 - 01/1990	1
46458-28010	YR2#,31 RR CABLE	08/1988 - 01/1990	2
46458 - RETAINER, CABLE
46458-28010	YR2#,31 FR CABLE	08/1988 - 01/1990	1
46458-28010	YR2#,31 RR CABLE	08/1988 - 01/1990	2
Common parts
90206-69001
90468-08001
90468-12134
90949-01045
91611-60610
91611-60612
91611-60814
91611-60816
91656-60825
94110-50600
94120-40600
94120-40800
94612-10800
95381-02515
96221-20710
96221-20914

YR31LG-MDEW (1988)

(8808- )
