YR22RG-PQZEQ (1985)
Toyota Model-F
Production
Aug 1985
-
Aug 1988
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )HRF

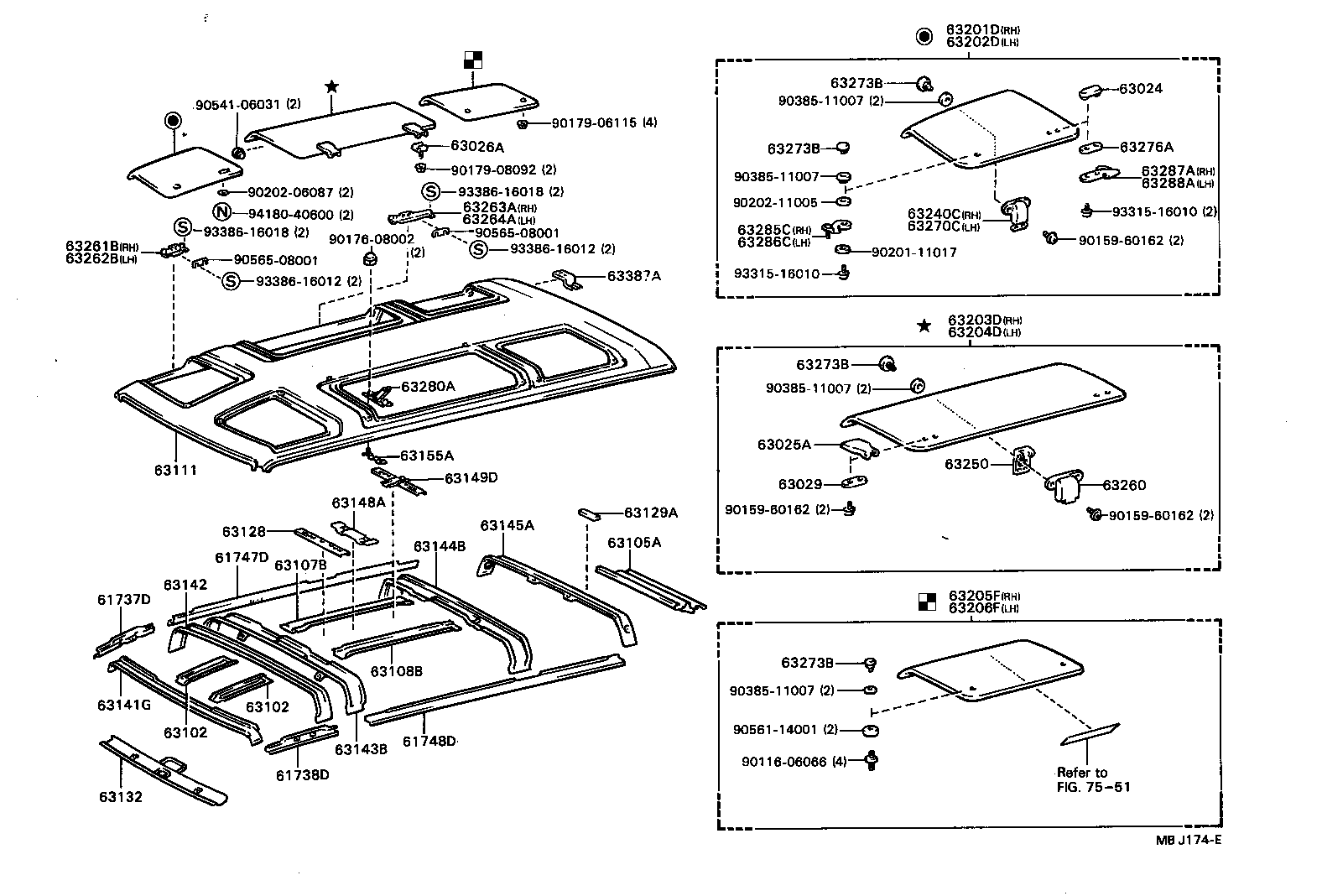

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-87003 |
YR22..HRF |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-87001 |
YR22..HRF |
1 | ||
| 61747D - REINFORCEMENT, ROOF SIDE, INNER REAR RH | ||||
| 61747-87001 |
YR22..HRF |
1 | ||
| 61748D - REINFORCEMENT, ROOF SIDE, INNER REAR LH | ||||
| 61748-87001 |
YR22..HRF |
1 | ||
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95700 |
YR22..HRF |
2 | ||
| 63025A - HINGE SUB-ASSY, ROOF WINDOW MALE | ||||
| 63023-95700 |
YR22..HRF FR |
2 | ||
| 63025-95702 |
YR22..HRF RR |
2 | ||
| 63026A - HINGE SUB-ASSY, ROOF WINDOW FEMALE | ||||
| 63026-95701 |
YR22..HRF |
4 | ||
| 63029 - SEAL SUB-ASSY, ROOF WINDOW HINGE | ||||
| 63029-87001 |
YR22..HRF |
4 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63123-87002 |
YR22..HRF RH |
1 | ||
| 63124-87002 |
YR22..HRF LH |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63123-87002 |
YR22..HRF RH |
1 | ||
| 63124-87002 |
YR22..HRF LH |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-87010 |
YR22..HRF |
1 | ||
| 63107B - REINFORCEMENT SUB-ASSY, ROOF PANEL, RH | ||||
| 63107-87003 |
YR22..HRF |
1 | ||
| 63108B - REINFORCEMENT SUB-ASSY, ROOF PANEL, LH | ||||
| 63108-87002 |
YR22..HRF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-87015 |
YR22..HRF |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-87002 |
YR22..HRF |
1 | ||
| 63129A - CUSHION, ROOF REINFORCEMENT | ||||
| 63129-87002 |
YR22..HRF |
18 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-87004 |
CR21,YR2#,31 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-87014 |
YR22..HRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-87005 |
YR22..HRF |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63103-87006 |
YR22..HRF |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-87002 |
YR22..HRF |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-87001 |
YR22..HRF |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-87002 |
YR22..HRF |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63104-87005 |
YR22..HRF |
1 | ||
| 63155A - PLATE, ROOF PANEL REINFORCEMENT | ||||
| 63155-87001 |
YR22..HRF |
2 | ||
| 63201D - GLASS SUB-ASSY, ROOF WINDOW, NO.1 RH | ||||
| 63201-87015 |
YR22..HRF BRONZE |
1 | ||
| 63202D - GLASS SUB-ASSY, ROOF WINDOW, NO.1 LH | ||||
| 63202-87006 |
YR22..HRF BRONZE |
1 | ||
| 63203D - GLASS SUB-ASSY, ROOF WINDOW, NO.2 RH | ||||
| 63203-87015 |
YR22..HRF BRONZE |
1 | ||
| 63204D - GLASS SUB-ASSY, ROOF WINDOW, NO.2 LH | ||||
| 63204-87011 |
YR22..HRF BRONZE |
1 | ||
| 63205F - GLASS SUB-ASSY, ROOF WINDOW, NO.3 RH | ||||
| 63205-87009 |
YR22..HRF |
1 | ||
| 63205-87011 |
YR22..HRF BRONZE |
1 | ||
| 63206F - GLASS SUB-ASSY, ROOF WINDOW, NO.3 LH | ||||
| 63206-87006 |
YR22..HRF BRONZE |
1 | ||
| 63206-87004 |
YR22..HRF |
1 | ||
| 63240C - HANDLE ASSY, ROOF WINDOW LOCK, RH | ||||
| 63240-87001 |
YR22..HRF |
1 | ||
| 63250 - BASE ASSY, REMOVABLE ROOF LOCK | ||||
| 63250-87001 |
YR22..HRF |
2 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-87005 |
YR22..HRF |
2 | ||
| 63261B - SUPPORT, ROOF WINDOW LOCK, NO.1 RH | ||||
| 63261-87002 |
YR22..HRF |
1 | ||
| 63262B - SUPPORT, ROOF WINDOW LOCK, NO.1 LH | ||||
| 63262-87001 |
YR22..HRF |
1 | ||
| 63263A - SUPPORT, ROOF WINDOW LOCK, NO.2 RH | ||||
| 63263-87002 |
YR22..HRF |
1 | ||
| 63264A - SUPPORT, ROOF WINDOW LOCK, NO.2 LH | ||||
| 63264-87002 |
YR22..HRF |
1 | ||
| 63270C - HANDLE ASSY, ROOF WINDOW LOCK, LH | ||||
| 63270-87001 |
YR22..HRF |
1 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-87001 |
YR22..HRF |
18 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-87001 |
YR22..HRF |
18 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-87001 |
YR22..HRF |
18 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-87001 |
YR22..HRF |
18 | ||
| 63276A - SEAL, ROOF WINDOW HINGE | ||||
| 63276-87001 |
YR22..HRF |
2 | ||
| 63280A - BALANCER ASSY, ROOF WINDOW | ||||
| 63280-87001 |
YR22..HRF |
2 | ||
| 63285C - HINGE, ROOF WINDOW, NO.1 RH | ||||
| 63285-87007 |
YR22..HRF |
1 | ||
| 63286C - HINGE, ROOF WINDOW, NO.1 LH | ||||
| 63286-87001 |
YR22..HRF |
1 | ||
| 63287A - HINGE, ROOF WINDOW, NO.2 RH | ||||
| 63287-87002 |
YR22..HRF |
1 | ||
| 63288A - HINGE, ROOF WINDOW, NO.2 LH | ||||
| 63288-87001 |
YR22..HRF |
1 | ||
| 63387A - BRACKET, ROOF HEADLINING HOLDER | ||||
| 63387-87001 |
YR2#..GL W/*SNR OR *SKR |
2 | ||
| 63387-87001 |
YR2#..GL W/*SNR |
2 | ||
| Common parts | ||||
| 90116-06066 | ||||
| 90159-60162 | ||||
| 90176-08002 | ||||
| 90179-06115 | ||||
| 90179-08092 | ||||
| 90201-11017 | ||||
| 90202-06087 | ||||
| 90202-11005 | ||||
| 90385-11007 | ||||
| 90541-06031 | ||||
| 90561-14001 | ||||
| 90565-08001 | ||||
| 93315-16010 | ||||
| 93386-16012 | ||||
| 93386-16018 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 7551 | ||||
